32 Watt Single Channel Programmable Precision TEC Controller with PID Auto-Tune

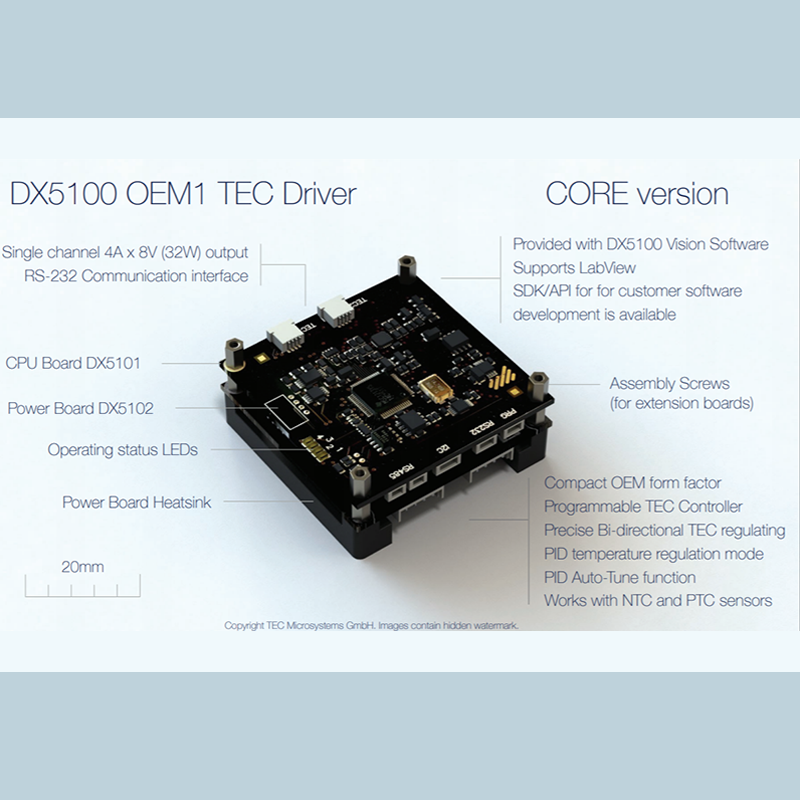

  • TEC Controller Model 5100

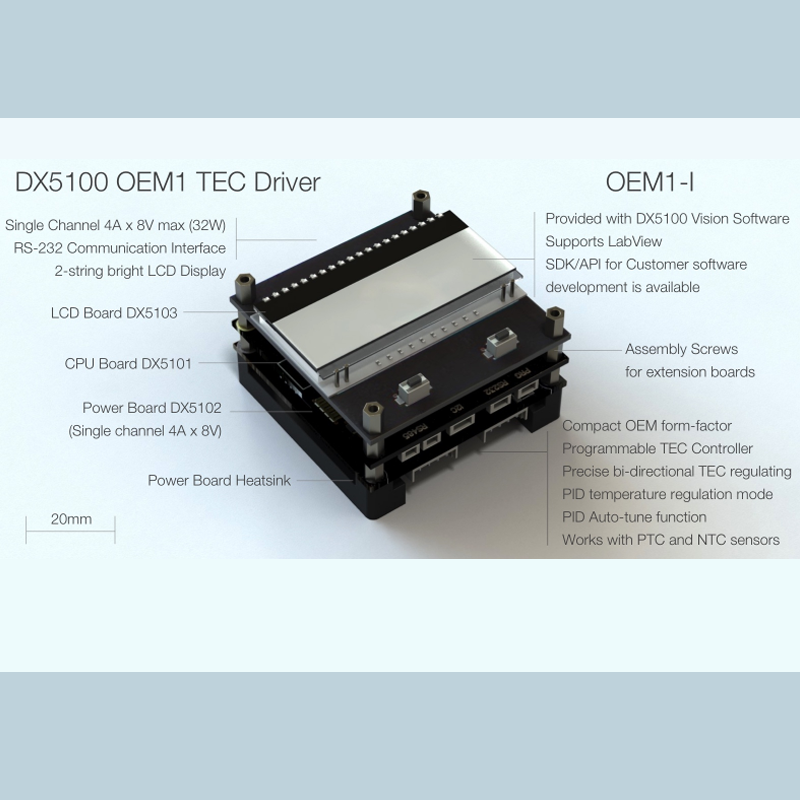

  • TEC controller model 5100 top view

Request Price   Ships: Contact | Model RLS-DX5100

Key Features
  • 32W (4Ax8V) Channel output
  • Compact OEM Modular Concept
  • PID with Auto-Tune function
  • Standard RS-232 (Optional USB)
  • Supports NTC and PTC thermistors

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-DX5100
PRICE Request Price
THERMOELECTRIC COOLER (PELTIER) OUTPUT
  • TEC Output Power Total: 32 Watts
  • TEC Output Current Range (bipolar): ± 4.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 8.00 Volts
TEMPERATURE REGULATION
  • 4-Wire Measurement
  • Resolution: 0.001°C
  • Stability: 0.005°C
  • Accuracy: 0.5°C
  • Supported Thermistors: Pt, NTC, PTC
  • Resistance range: 70 - 996K ohms
Options
  • USB Remote Interface
  • Input / Output Sync
  • LDC Display
  • Dual Output: 32 Watts Per Channel

Product Overview:

The DX5100 OEM1 thermoelectric controller is a precision-programmed device for all applications with TEC's requiring precise temperature control. These TEC controllers are based on the DX5100 OEM modular concept, which consists of a CPU board (DX5101) and a power board (DX5102) in a core configuration with the possibility to expand it's functionality by using additional expansion boards. The DX5100 OEM1 is a bi-directional TEC controller (it runs TEC's in both heating and cooling modes) with full PID regulation and PID Auto-Tune functionality. It has a single TEC control channel with a maximum 4 amp, 8 volt (32W power) output to the peltier. The DX5100 OEM1 supports PTC and NTC temperature sensors and includes a list of temperature sensors which are already programmed into the controller.
