HIGH CURRENT, SHORT PULSE WIDTH Laser Diode Diode Driver for LiDAR & Sensing:
» 30 Amp Peak Current Output
» 5 Nanosecond Pulse Width
» On Board Mounting Pad for Laser Diode

  • Pulse Diode Laser Driver
  • Pulsed Laser Diode Driver Pulsed Board
  • Pulse Laser Diode Driver Frequency
  • 30 Amp Pulsed Laser Diode

$2352.00
sku / item#: RLS/LDD-PU-300-04
ships: 7 to 10 days

Key Features
  • 5 Nanosecond Factory Default Pulse Width Set-Point (Other Pulse Width Set-Point Available on Request)
  • Output Current Amplitude up to 30 Amps

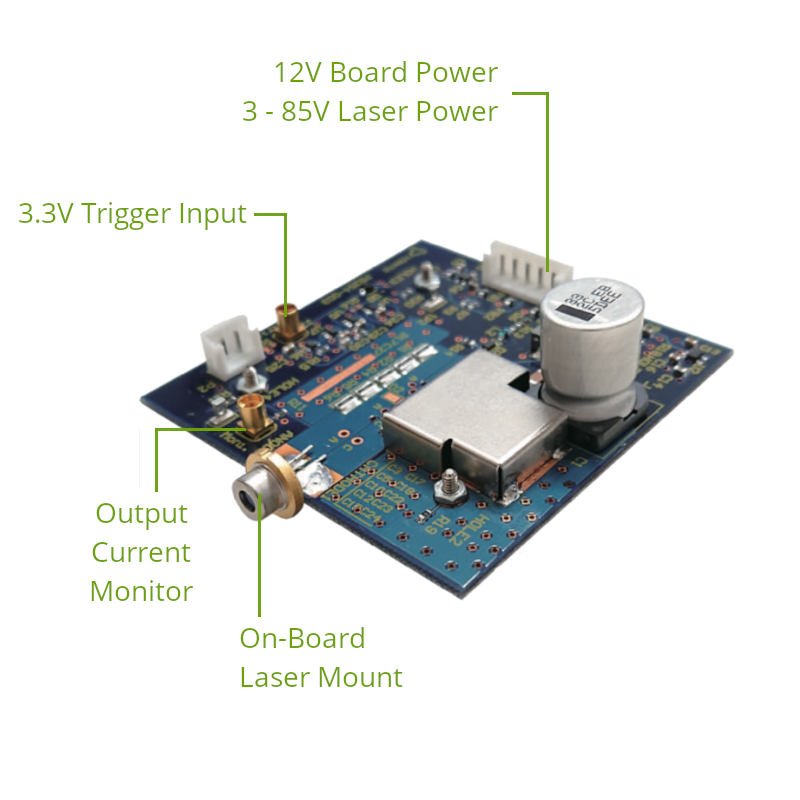

  • On Board Laser Diode Package Mounting Pad

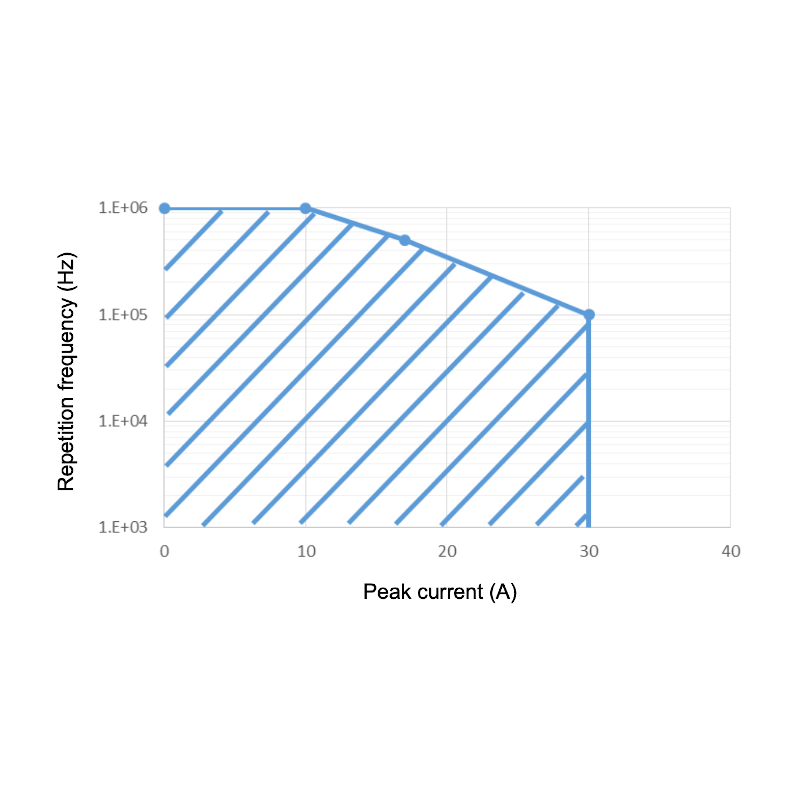

  • Pulse Repetition Rate Range 1 kHz to 1 MHz
  • Offered by Trimatiz Limited, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDD-PU-300-04
PRICE $2352.00
output specifications
  • Peak Output Current (max): 30 Amps
  • Laser Diode Compliance Voltage Range (max): 5 V (max)
  • Compatible Laser Diode Package: 5.6 mm, 9 mm TO-Can Type
  • Output Current Set by Laser Driver Voltage (Input)
Pulse Specifications
  • Pulse Width: Factory-Set, 5 Nanosecond (min)
  • Repetition Rate: 1 kHz to 1 MHz
  • Duty Cycle Max: 1%
  • Trigger Input Connector: MMCX Receptacle, 50 Ω
  • Pulse Trigger Voltage: 3.3 V CMOS
  • Pulse Trigger Width: 100 ns (min)
  • Trigger Point: Rising-Edge
Output Current Monitor
  • Connector: MMCX Receptacle, 50 Ω
  • Conversion Constant: 44.4 A / V
  • FWHM Pulse Width: 5 ns ±10% (dummy load)
DC Input Electrical Specifications
  • Controller Input Voltage: 12 VDC (±5%)
  • Controller Input Current: 40 mA (min)
  • Laser Driver Voltage: 3 V - 40 V
  • Laser Driver Current: 80 mA (min)
Board Dimensions
  • 60 mm x 60 mm

Product Overview:

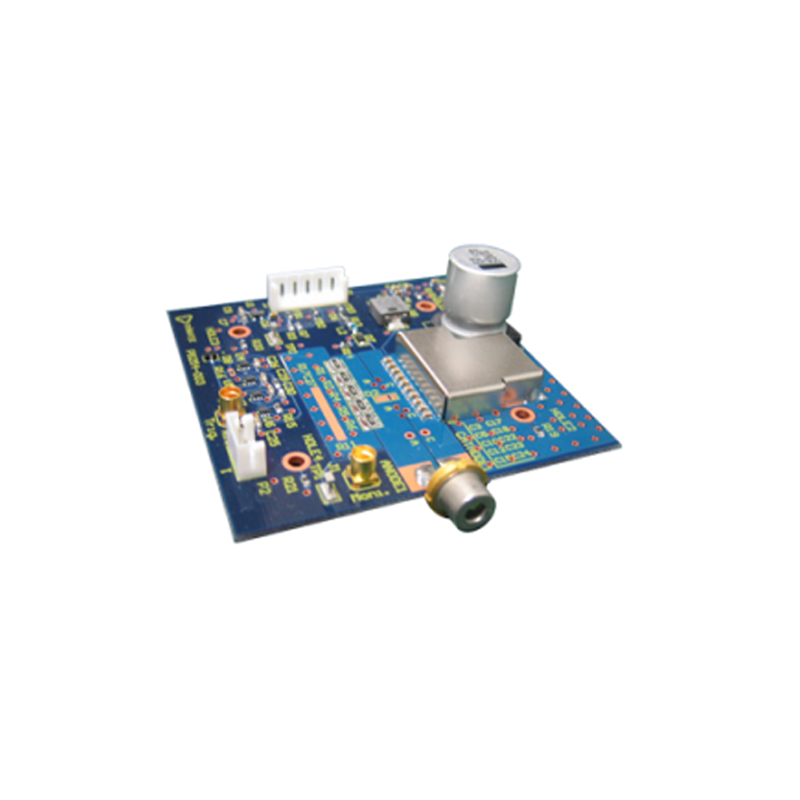

HIGH CURRENT, SHORT PULSE Laser Diode Driver

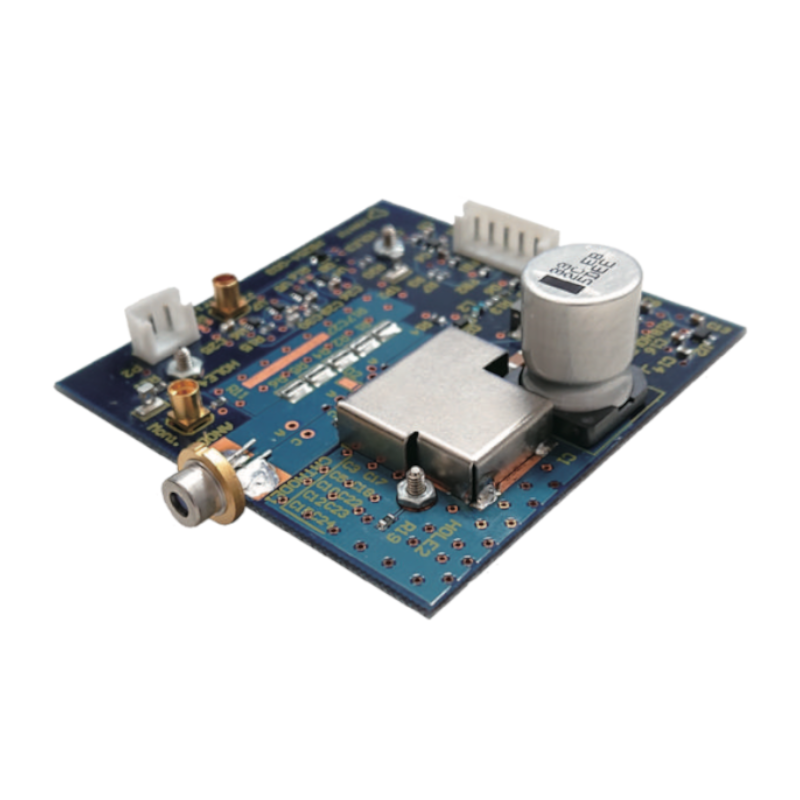

This high current, short pulse laser diode driver was developed for emerging applications in LiDAR to deliver clean, high power ultra-short current pulses. The output stage of the driver board has a mounting pad for laser diode package direct-solder mounting. It is designed to work with either 5.6mm or 9mm TO-can package styles. Direct-solder mounting of the laser diode on the circuit board eliminates the need for impedance matched cables and resistive elements.

Factory-Assured Accuracy and Functionality

Factory pre-sets for your application are offered at not additional charge and options for testing with your laser diode prior to shipment are available. The factory default pulse width set-point is 5 nanoseconds.
