30 Amps, 30 Volts, High Power Laser Diode Driver M-Series

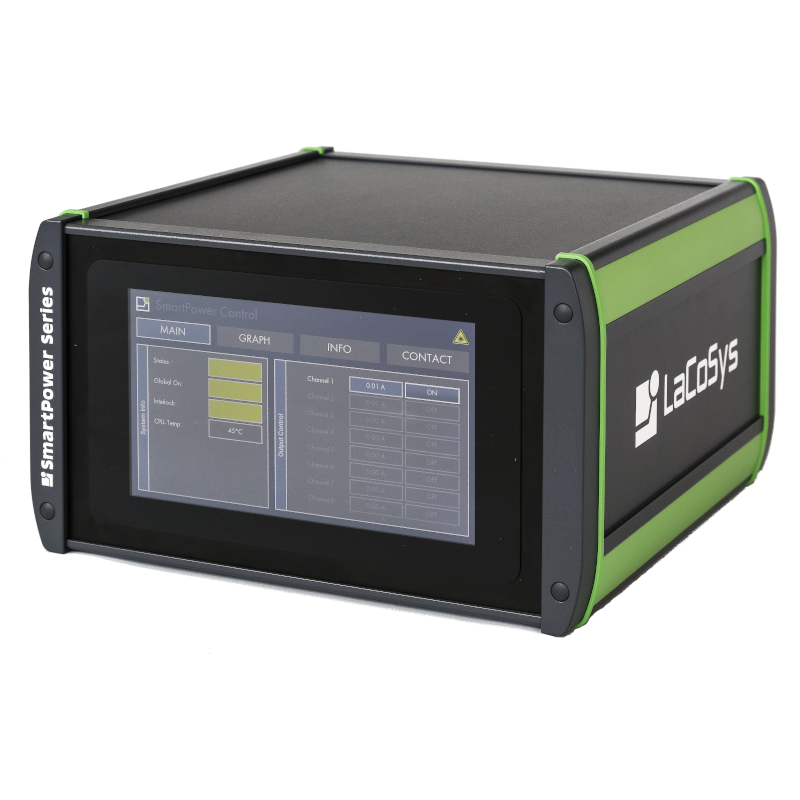

  • 30A, 600W laser diode driver front panel

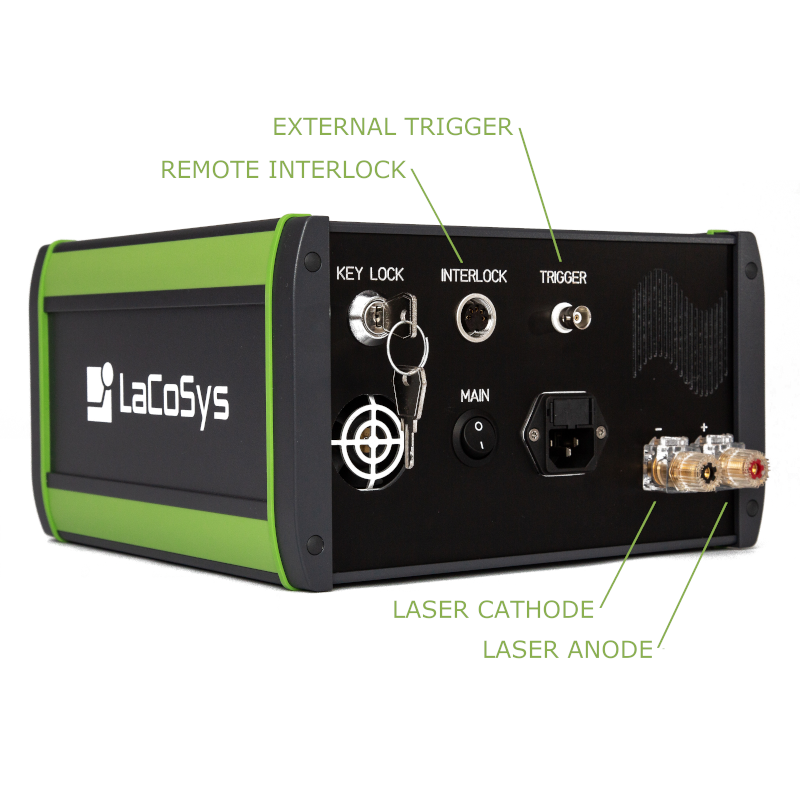

  • 30A, 600W Laser Diode Driver Back Panel

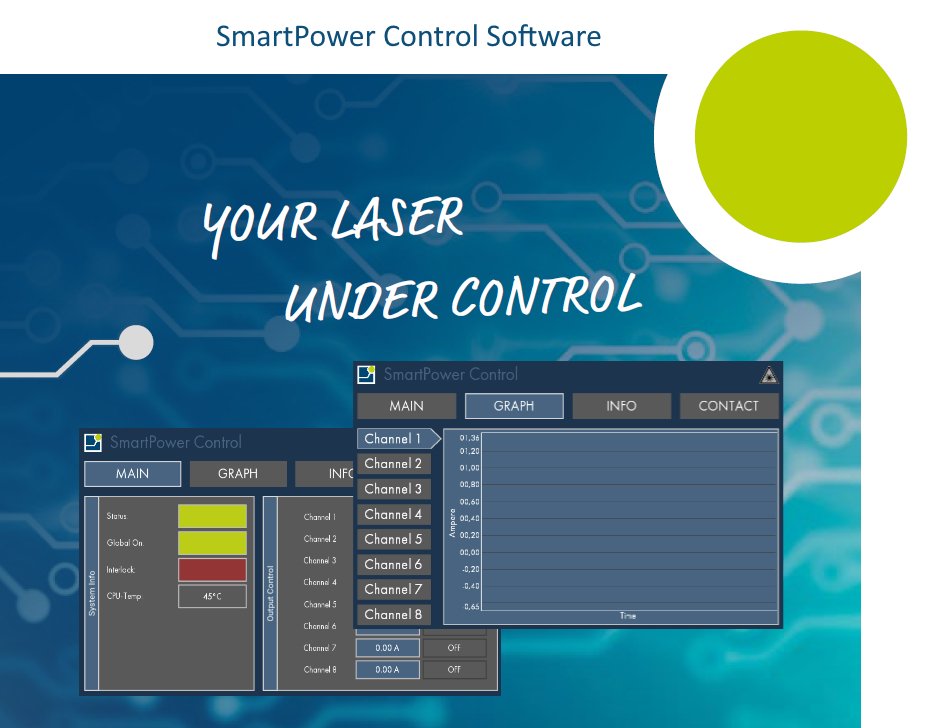

  • 30A, 600W, Laser Diode Driver Software

Request Quote
sku / item#: M600-30 / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • Model M600-30: Up to 30A and 30V (refer to data sheet attached)
  • Easy To Use, 7" Touch-Screen Display and Control
  • Key switch and Remote Interlock
  • Overload Protection
  • Air Cooling With Temperature-Controlled Fan
  • RS-232, Ethernet, or USB interface available
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL M600-30 / LASER-DRIVER
PRICE Request Price
Electrical SPECIFICATIONS
  • Output Current: 0 - 30 Amp
  • Output Voltage: 9.0 V to 30 V
  • Maximum Output Power: 600 W
  • Output Accuracy: < 0.5%
  • Output Stability: < 0.1%
  • Current Ripple: < 0.5% @ full load (BW=20Hz)
  • QCW mode by external TTL signal
  • Trigger Rise / Fall Time: 250 μs
  • Refer to Datasheet for Additional Specifications
GENERAL SPECIFICATIONS
  • Power Input: 90 - 265 VAC (Derating < 120 VAC)
  • Maximum Power Consumption: 690 W
  • Dimensions (Length x Width x Height): 245 mm x 245 mm x 145 mm

Product Overview:

30 Amp, 30 Volt, M-Series High Power Laser Diode Driver Overview

The SmartPower M series laser diode drivers have been developed for the safe operation of diode lasers at high power levels. This high power laser driver is capable of up to 600 W output. Their simple operation through a front panel touch screen in combination with their modern microprocessor technology make them the first choice for laboratory and research applications.

Designed with Laser Safety in Mind

When operating laser diodes at these very high power levels, safety is a top priority. These drivers are designed to be quickly and easily integrated into existing laser safety and security environments: the key switch and remote interlock to ensure a safe operation of the diode and the driver. To protect the laser diode, the driver is equipped with circuits to detect and mitigate the risk of damage from over-voltage, over-current, and over-temperature conditions.

Laser Diode Driver Interface Options

The touch-screen front panel operation is easy to set up and use, and provides complete control over all the functions of the driver. The SmartPower M Series drivers can be ordered with an optional Ethernet connection for fast connection to a PC and switched in QCW mode by an external TTL signal. A control software is available for the user.
