Precision Benchtop Laboratory 30 Amp, 10 Volt High Power Laser Diode Driver

  • lds-laser-diode-driver-8-7-8-7-2-600x600-6
  • lds-bullet-breakout-front-panel-2020-bencthop-8-7-2-600x600-5

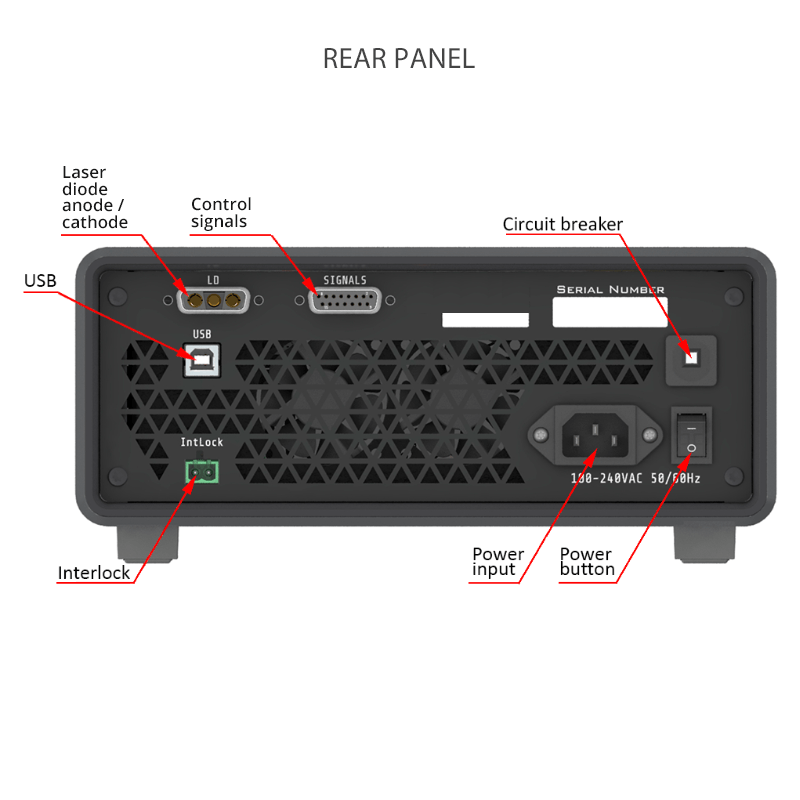

  • lds-rear-panel-of-laser-diode-driver-8-7-2-600x600-4

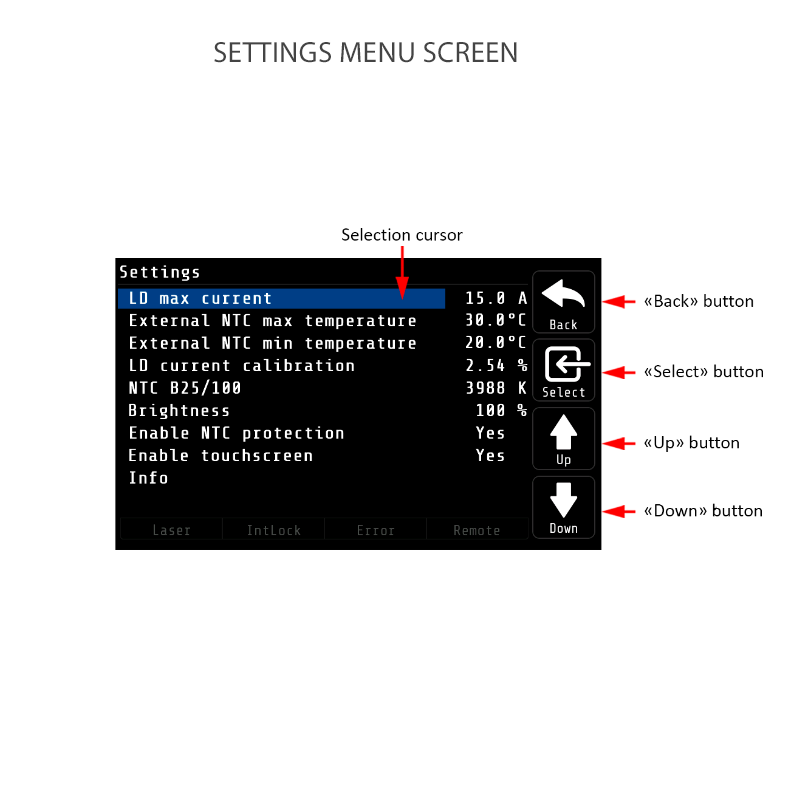

  • laser-diode-driver-settings-menu-screen-6-7-1-600x600-1
  • lds-laser-diode-driver-sofware-scree-capture-8-2-600x600-2
  • current-start-up-sequence-graph-of-laser-diode-driver-5-7-1-600x600-3

$2629.00
sku / item#: MBH3010
ships: Request a Quote for Current Ship Date

Key Features
  • Current Range 30 Amps / Compliance Voltage Range 10 VoltsCW and QCW Laser Diode Driver
  • Multiple Layers of Laser Diode Protection
  • Laser Over-Temperature Protection Circuit
  • Current Stability < 0.1%

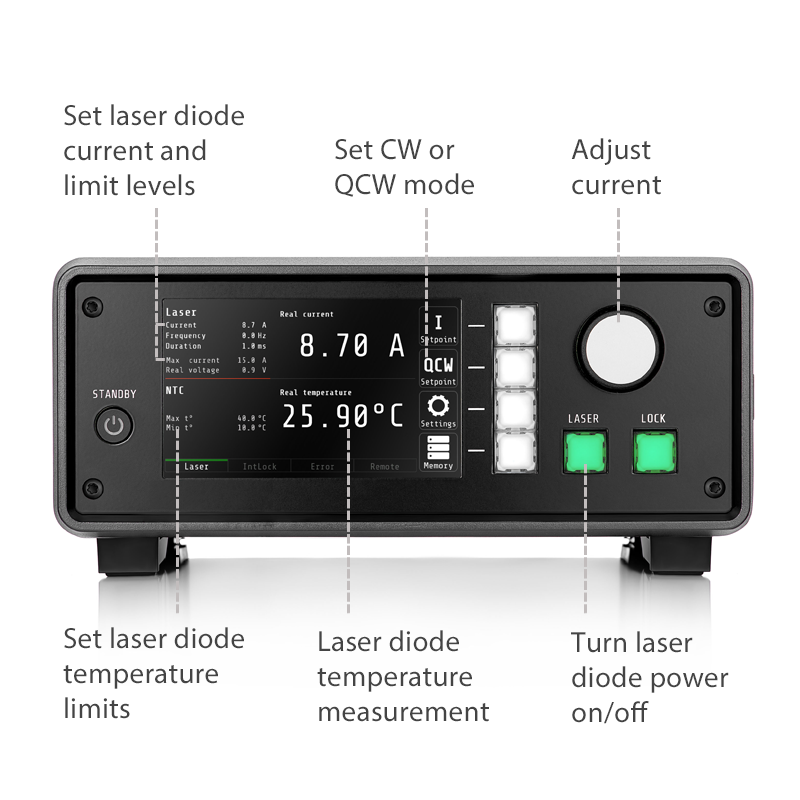

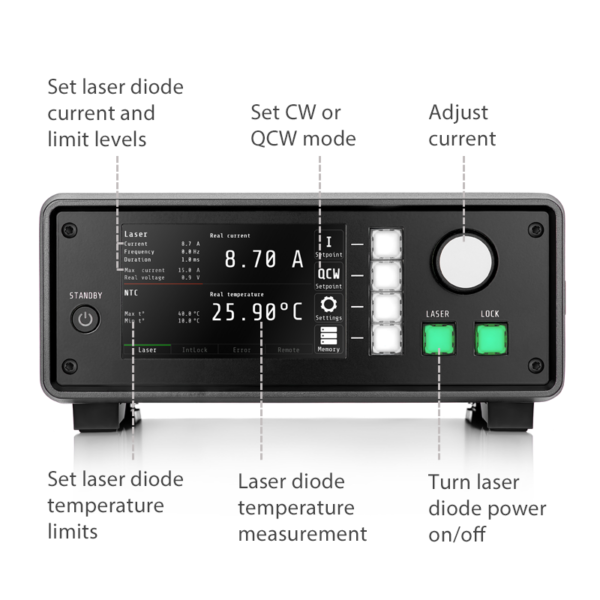

  • Easy-to-Use Touch-Screen, Adjustment Knob, and Button Front Panel Controls

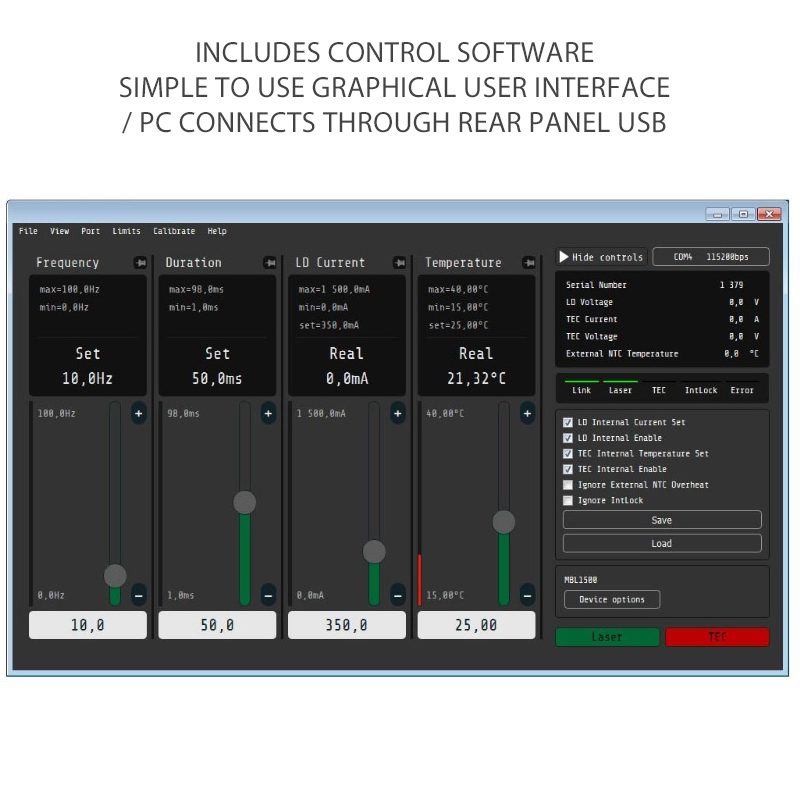

  • Remote Control via USB; Software and SCPI Communication Protocol included
  • CW and QCW Modes of Operation
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL MBH3010
PRICE $2629.00
CURRENT, VOLTAGE & TEC CONTROLLER
  • Output current LD (I): 0 – 30 A
  • Output voltage LD (V): 0 – 10 V
  • Setpoint Resolution: 0.01 A
  • Rise Time (Iout = 7.5A): min – 300μs; max – 700μs
  • Rise Time (Iout = 15A): min – 300μs; max – 600μs
  • Fall Time: min – 300μs; max – 1500μs
  • Current Stability: < 0.1 %
  • Current Setpoint Absolute Accuracy: <1 %
LASER DIODE PROTECTION

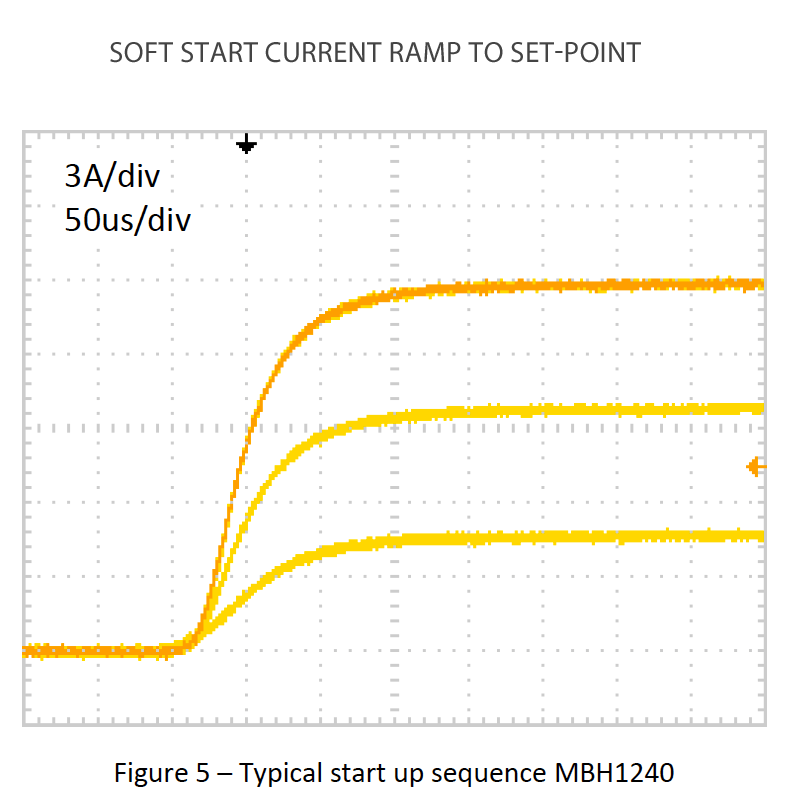

  • Soft-Start Current Ramp
  • Current limit
  • Temperature limit
  • Reverse current protection
  • ESD and transient protection
  • External Interlock Connector
DIMENSIONS AND WEIGHT
  • Dimensions: 257 x 271 x 117 mm
  • Weight: 3.6 kg
  • AC Power: Single Phase 100 – 240 VAC, 50Hz
  • Air Cooled
USER INTERFACE

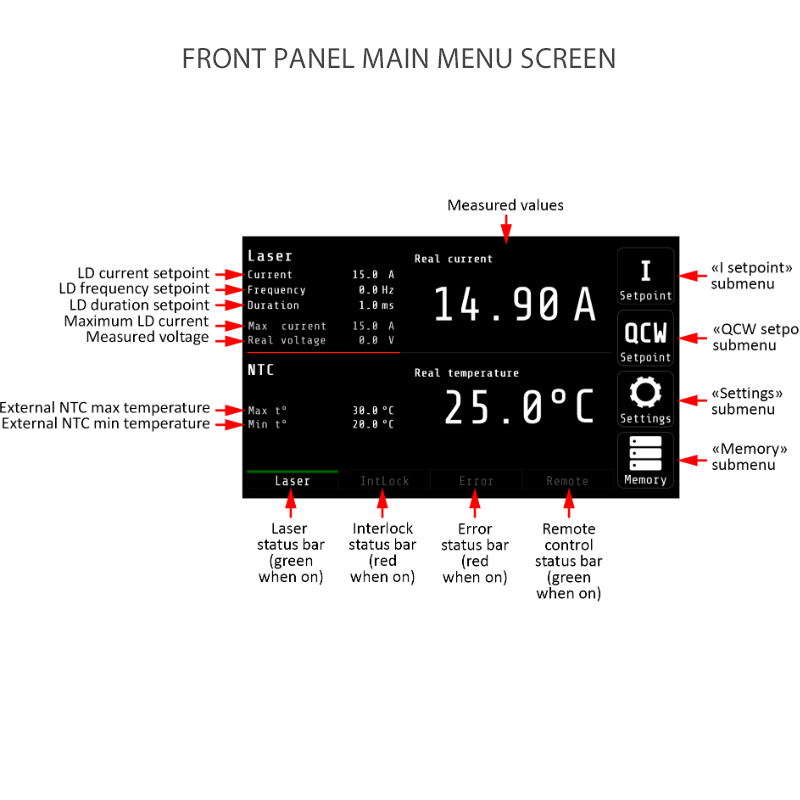

  • Front Panel (Touch Screen and Buttons)
  • USB with Software Included
SHIPPING KIT (INCLUDED PARTS)
  • Power cord – 1 pcs
  • USB cable – 1 pcs
  • Interlock connector – 1 pcs
  • Datasheet & User Manual – 1 pcs
WARRANTY PERIOD
  • 1-year manufacturer's warranty

Product Overview:

High Power Precision Benchtop Laser Diode Driver

The MBH3010 is a precision high power laser diode driver designed and optimized for driving high power pump laser diodes. The high compliance voltage range multi-single chip emitters or high power LED arrays. These drivers offer an output current range up to 30 amps and output voltage range up to10 volts. They can be set to run in CW mode or QCW mode. The MBH-Series laser diode drivers are operated by an easy-to-use front panel interface. The touch-screen panel is intelligently organized, and the buttons and control knob increase operator efficiency. Up to nine user-programmed presets can be saved and easily recalled. The driver includes a USB interface and control software for simple remote control. Custom control software can easily be written following SCPI (Standard Commands for Programmable Instruments) protocol.

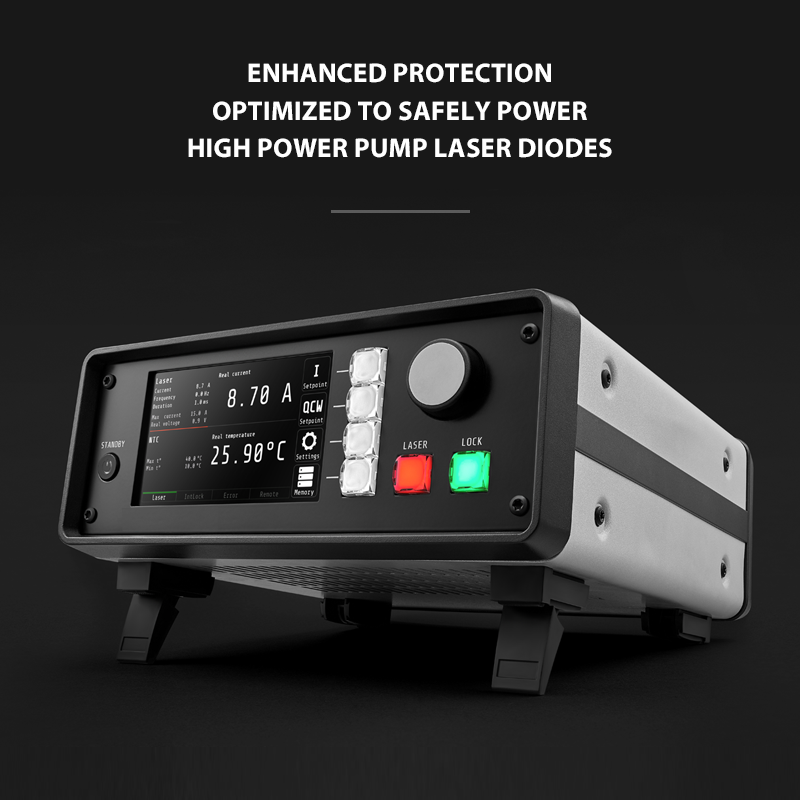

Enhanced Protection for High Power Pump Laser Diodes

These drivers are designed with extensive safety features to protect your laser diode:
  • NTC thermistor input to prevent laser over-heat damage
  • Soft-start current ramp
  • Over-current protection and fast-shutdown
  • Reverse current protection
  • ESD and transient protection
  • Programmable current limit
  • External safety interlock input
  • Versatile and Simple User Interface and Controls
