2 Amp Precision Laser Controller; OEM Module for 10/14-Pin Butterfly Lasers
- ±4 Amp, 16 Watt TEC Driver
- Preconfigured ZIF Butterfly Mount

Product Overview:

2 Amp Picosecond Pulse Laser Controller Overview

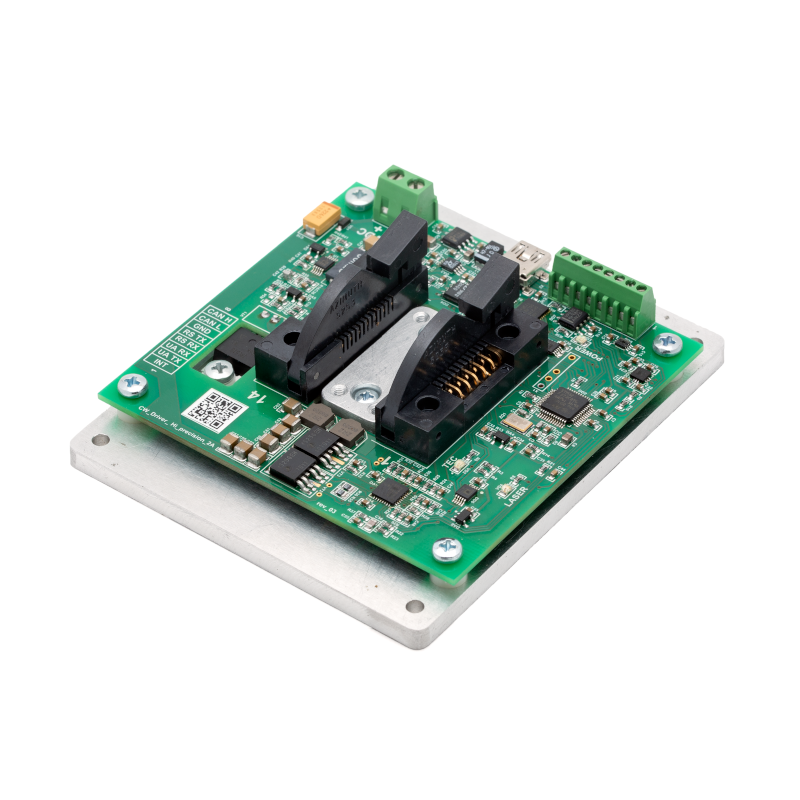

The BLD-CW-2000H-ZIF is a compact, high-precision, OEM-type laser diode driver for powering 10-pin and 14-pin butterfly laser diode modules. The controller includes a low-noise laser, temperature controller, and employs ZIF sockets for unbeatable convenience.

CW Controller Features:

- Low-ripple output current up to 2 Amps
- 4 A, 16 Watt TEC controller with PID control loop

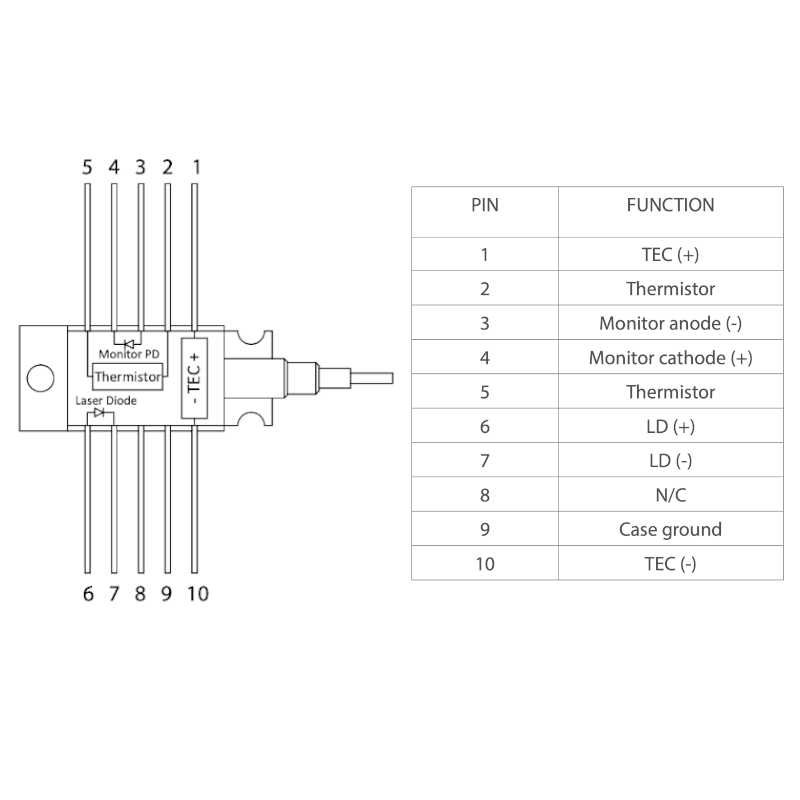

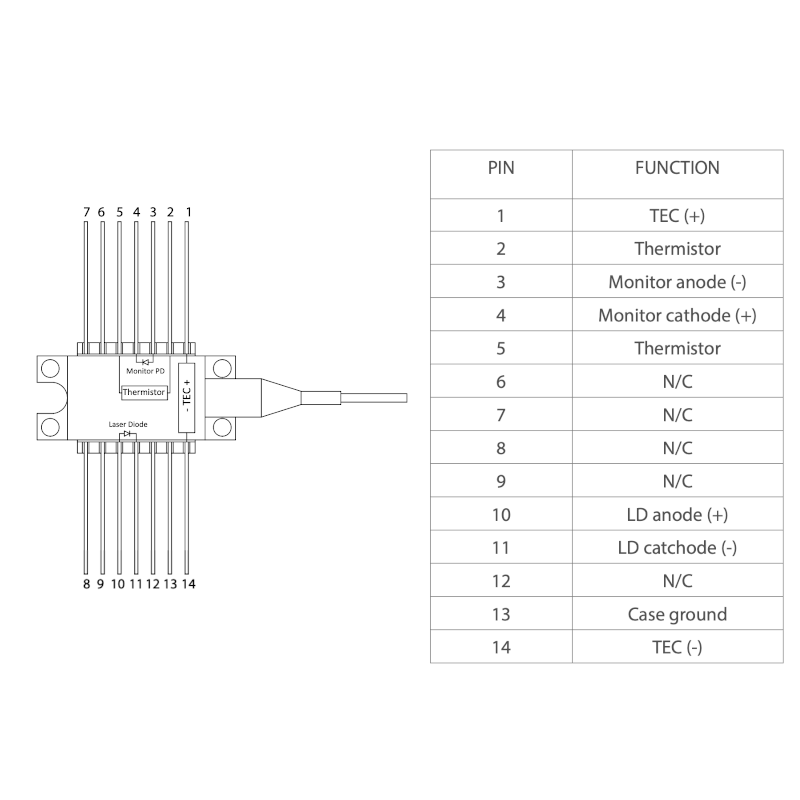

- 10-pin and 14-pin compatible Butterfly pinout
- Reliable ZIF-socket for ease of use

Simple, Effective, Versatile Interface for OEM Applications

The main parameters of BLD-CW-2000H-ZIF (output current, pulse width, repetition frequency, temperature set point) are controlled by computer interface. Using the Control Center Driver software, a single laser controller can be controlled via the standard USB-interface. The controller can be ordered with an RS232 interface, or up to ten controllers can be managed by a single computer using the optional CAN interface and Ampliconyx CAN hub. Inquire for details or to order the controller with the different computer interface options.

By connecting controllers to the Ampliconyx CAN hub, up to ten drivers can be controlled simultaneously using the Ampliconyx Control Center Driver software.

Single Power Supply Input

To simplify powering the controller in OEM applications, the controller requires a single 5 VDC power source. All other needed voltages are generated on the board by high-efficiency switching power supplies.
