Benchtop High Power Laser Diode Driver & TEC Controller; 27 Amp / 24 Volt Laser Diode Driver | 216W TEC Controller | Multi-Stage Protection Designed Specifically for High Power Laser Diodes

$3895.00
sku / item#: LDC-506
ships: 14 to 18 days

Key Features
  • Enhanced Protection Features Designed Specifically for High Voltage, Multi-Emitter Laser Diodes and Series Connected Lasers
  • Current Output up to 27 Amps, Compliance Voltage up to 24 Volts
  • Integrated High Power Laser Diode TEC / Temperature Controller
  • Programmable Current and Temperature Limits

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).


This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).


This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and a
2W2 d-sub connector (female) on the device end (kab-297).


This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and unterminated
on the device-end (kab-286).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDC-506
PRICE $3895.00
LASER DIODE CURRENT and voltage OUTPUT
  • Output Current Range: 0.00 - 27.00 Amps
  • Compliance Voltage Range: 0.00 - 24.00 Volts
  • Current Noise & Ripple (rms): < ± 0.5% of Full Scale Current
  • Current Setpoint Resolution: 3 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 200 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds; User Adjustable
  • User-Programmable Current Limit
  • Programmable Temperature Limits (Upper and Lower)
  • Open Circuit Detection; Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Rear Panel Keylock Switch and Safety Interlock
  • Front Panel e-Stop Button Emergency Shut-Down
TEC TEMPERATURE CONTROLLER
  • TEC Output Power Total: 216 Watts
  • TEC Output Current Range (bipolar): ± 12.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 18.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
QCW MODE and MODULATION
  • User Adjustable Pulse Width Range: 25 μs to CW
  • Rear Panel Modulation Input: Digital or Analog
  • QCW Trigger: Internal or External
  • QCW Pulse Modes: Continuous, Single Pulses, Bursts
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
Auxiliary Functions
  • Temperature Sensor Input: 10kΩ NTC Thermistor
  • External Fan Control Circuit, 1 - 24V, 500mA (max)
  • Pilot Laser Anode, vs. Ground: (5V, 150 mA)
  • Laser-On External LED Indicator: 5mA Output

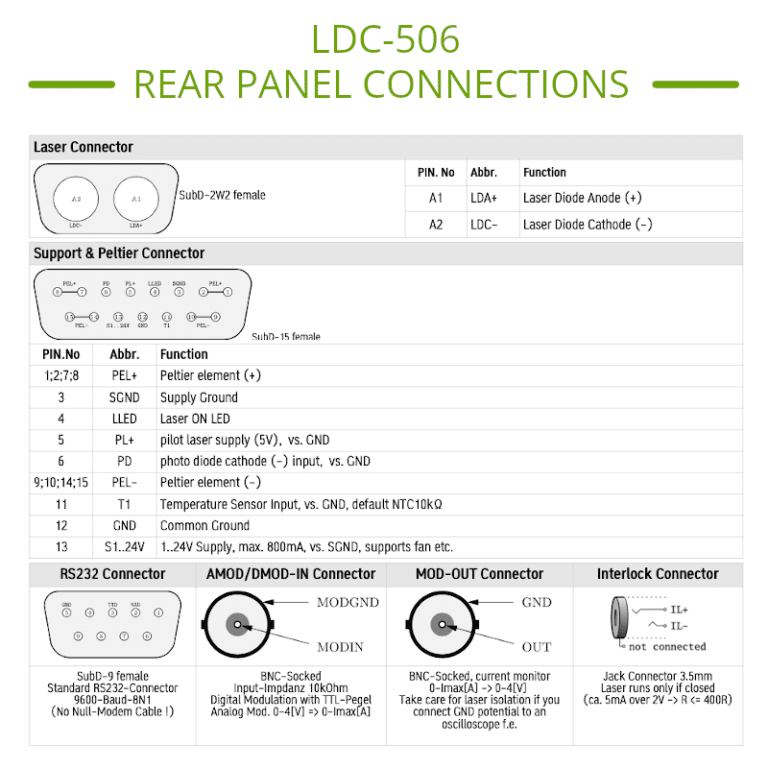

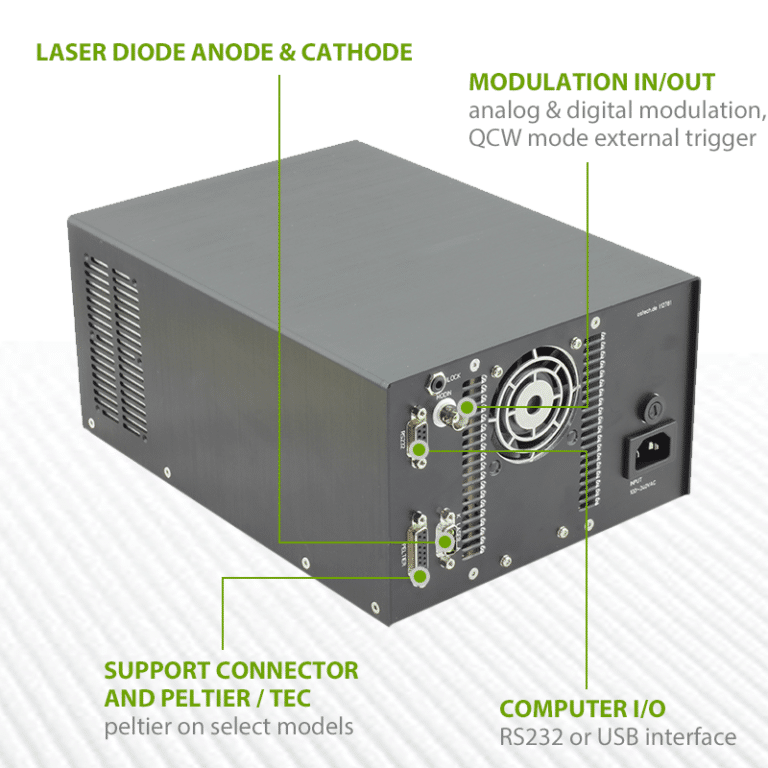

USER INTERFACE and Connectors
  • Front Panel: Alphanumeric LCD
  • USB Interface Included
  • LabView Drivers Included
  • Laser and Peltier Connector: SubD-15, Female
  • Laser Connector: SubD-2W2, Female
  • RS232 Connector: SubD-9, Female
  • Safety Interlock: Jack Connector, Stereo 3.5mm

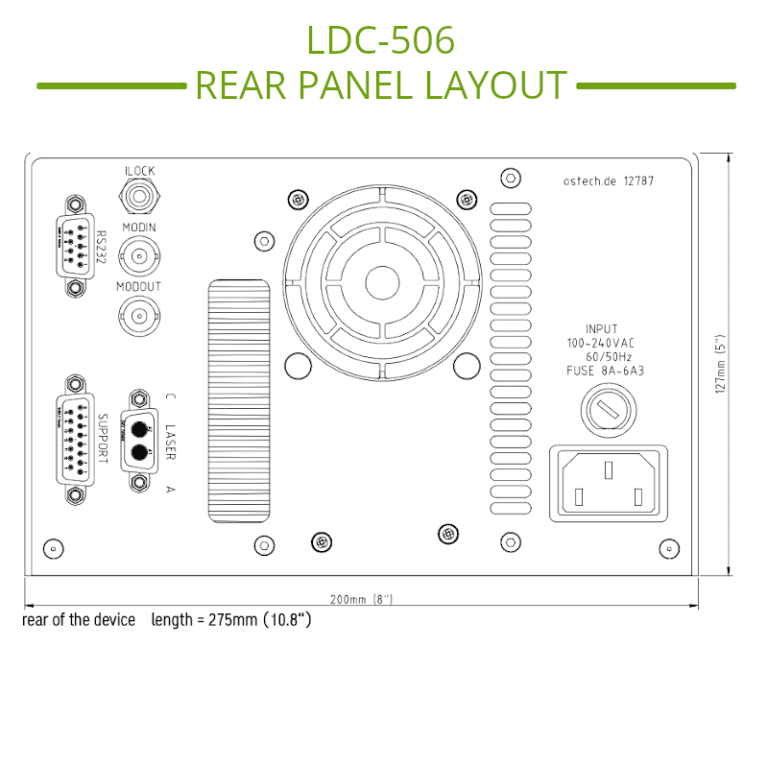

DIMENSIONS AND power INPUT
  • Power Input: Universal 100V ~ 240 VAC, 50/60 Hz
  • Dimensions: 127 mm (H) x 200 mm (W) x 275 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable
  • kab-286 Unterminated Power Cable -or-
    kab-297 Terminated Power Cable

Product Overview:

LDC-506 High Power Laser Diode Driver Overview

The LDC-506 laser diode driver and TEC controller features high compliance voltage to reliably drive multi-emitter laser diodes from companies like nLight, Jenoptik, Lumentum and II-IV. The LDC-506 can also drives multi-emitter devices designed for series operation.

LDC-506 Laser Diode Driver

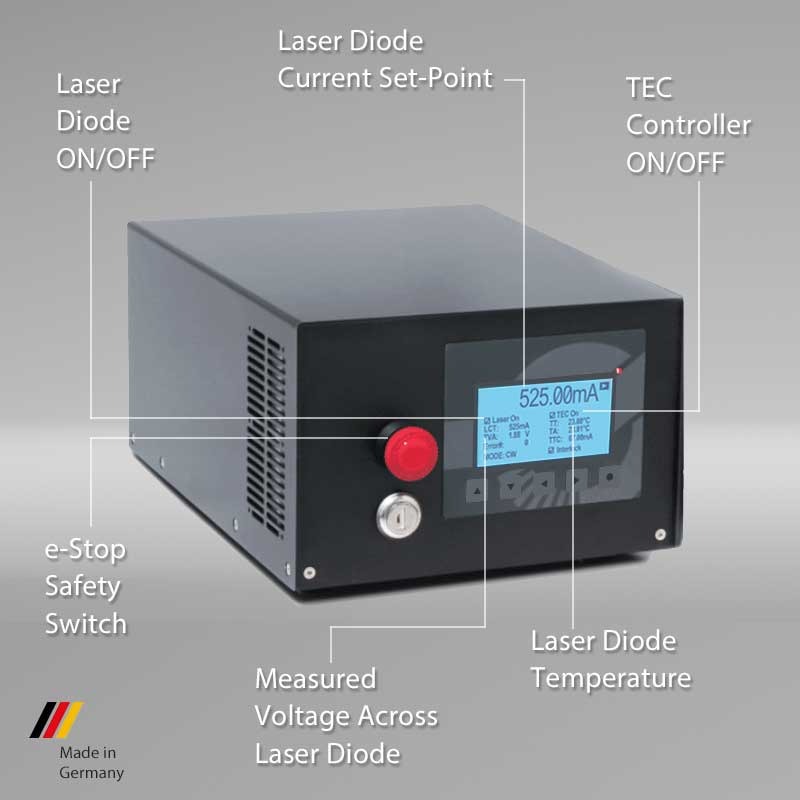

The LDC-506 has been designed to electrically bias high power laser diodes while protecting them from the common causes of damage which can harm or destroy the laser. Because high power lasers require relatively high levels of DC current and voltage, and generate high levels of waste heat, they have a unique set of electrical and thermal requirements which need to be addressed to protect them from being damaged. Additionally, the driver has been designed with features to assist the user to safely operate the laser diode under test. It offers features such as a front panel e-Stop power kill switch, redundant safety interlocks, and a front panel key-switch master power on/off.

Designed to Protect High Power Laser Diodes from Being Damaged

  • User Adjustable Current, Temperature and Voltage Limits Setting current, voltage and temperature limits are necessary to ensure a long lifetime for the laser diode. Limits can be set using the front panel & key-pad, or through software and/ or Labview GUI.

  • User Adjustable Soft-Start Current Ramp There is an internal 300 millisecond soft-start ramp to the current set-point. This reduces the potential for thermal shock to the laser at power ON and is used to ensure good electrical contact prior to fully applying the current bias the laser diode. The user has the ability to adjust the ramp time in order to optimize performance. These laser diode drivers offer the industries' only user-set slow start current ramp to the bias set point. This allows the user to extend the ramp time out to 10’s of seconds to prevent the possibility of thermal shock and prevent over driving the module during the start up sequence.

  • Protection Against Power Black-Out / Brown-Out and AC Power Surges AC line filters and power clamp circuitry protects the laser diode from AC input power transients and surges. These transients can occur when the bench / wall power source is momentarily interrupted due to a black or brown-out power outage.

  • Laser Diode Over-Temperature Shut-Down / External Monitor & Shut-Down A thermistor input is provided to allow the user to monitor the temperature of the laser diode. This can then be used to shut the laser diode off if a temperature maximum for the laser diode is exceeded. Also included is the ability to control an external cooling fan. A temperature sensor input is available on the back panel, and the external fan control supply is capable of driving up to 500 mA at 24 V.

User Safety Features

The driver has been designed with features to assist the user to safely operate the laser diode under test. These features include a front panel e-Stop power kill switch, redundant safety interlocks, a front panel key-switch master power on/off, and an over-temperature thermistor sensor input.

CW and Quasi-CW Modes of Operation

In addition to CW (continuous wave) mode of operation, these laser diode drivers offer flexible modulation capabilities and an integrated QCW mode (integrated pulse generator). The user can apply a TTL digital or analog modulation input through the rear panel BNC. The controller has an internal function generator which can be used to set the modulation signal or the quasi-CW pulses with a time base accuracy of 1.0%. In QCW mode, the user can set pulse parameters from a remote TTL signal source or use the internal function generator.

User Interface / Front Panel + Keypad / RS232 / USB / LabVIEW Drivers

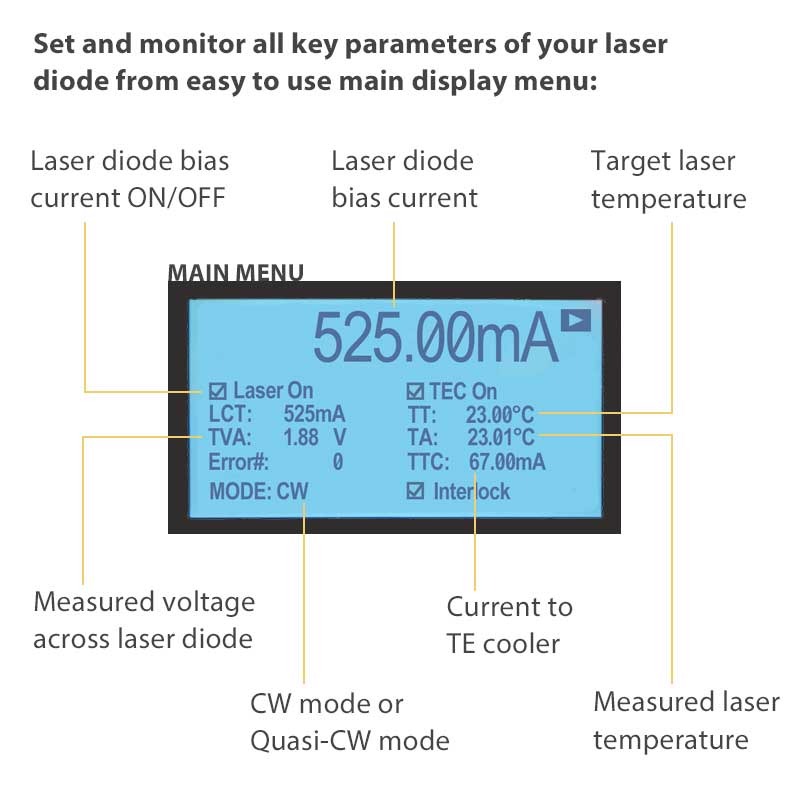

Controller setup is fast and intuitive via the front panel LCD display and keypad with a simple to use menu structure. These drivers come with standard an RS-232 interface and a USB interface adapter. The included LabView driver GUI makes set-up and control of the system fast and simple.
