275 Watt Laser Diode Heat Sink with Water Cooled Base Plate for High Power Laser Diodes

  • heat sink for high power laser diodes
  • laser diode heatsink

$945.00
sku / item#: RLS/LDM-275W
ships: Request

Key Features
  • Pre-Configured Mounting Plate for your Laser Package Type, Request Custom Mounting Plate Options and Pricing
  • Thermal Resistance R (th): 0.01 K/W
  • Laser Diode Waste Heat Removal of 275 Watts at Ambient Temperature of 25°C
  • Standard Mounting Plates for nLight, Lumics, DILAS, Coherent, JENOPTIK and More
  • Offered by OsTech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDM-275W
PRICE $945.00
Specifications (@ 25ºC Ambient)
  • Heat Load Maximum: 275 Watts
  • Thermal Resistance R (th): 0.01 K/W
  • Laser Diode Package Footprint (pre-drilled holes): Customer Specified
  • Temperature Uniformity: Better than +/- 0.5ºC Across Mounting Plate Surface
  • Laser Diode Mounting Plate Surface Flatness: < 25 µm
COMPATIBLE LASER DIODE PACKAGE STYLES
  • Submit Your Laser Diode PDF Data Sheet to Receive the Mounting Plate Part Number
  • Standard Mounting Plates Available for Most Lumics, DILAS, Coherent and Jenoptik Packages
  • Custom Mounting Plates Available on Request
COOLING CAPACITY relative to ambient temperature
  • Ambient Temperature 25°C ... Waste Heat Removal up to 275 Watts
Water Input Specifications
  • Connector Type: Push-Fit OD 8mm / Optionally G1/8 Thread
  • Water Flow Rate: 2 ~ 5 l/min
  • Water Temperature: < 23°C
  • Water Pressure: < 5bar / 500kPa / 70psi
  • Water Quality: Facility Water; Not Filtered
  • Water Quality Particle Size: < 0.25 mm

Product Overview:

275 Watt Laser Diode Mount & Heat Sink Overview

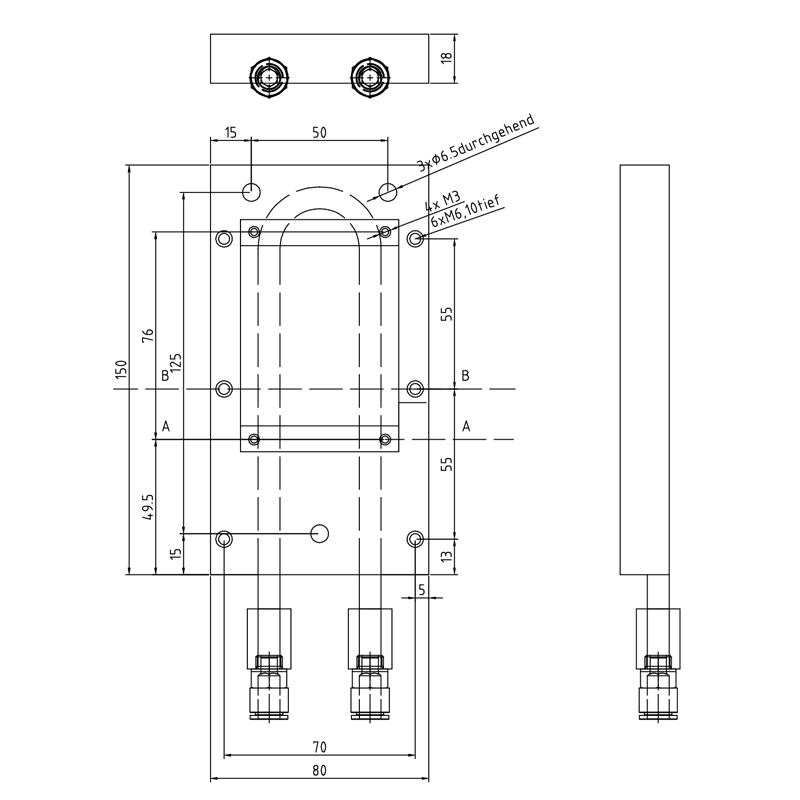

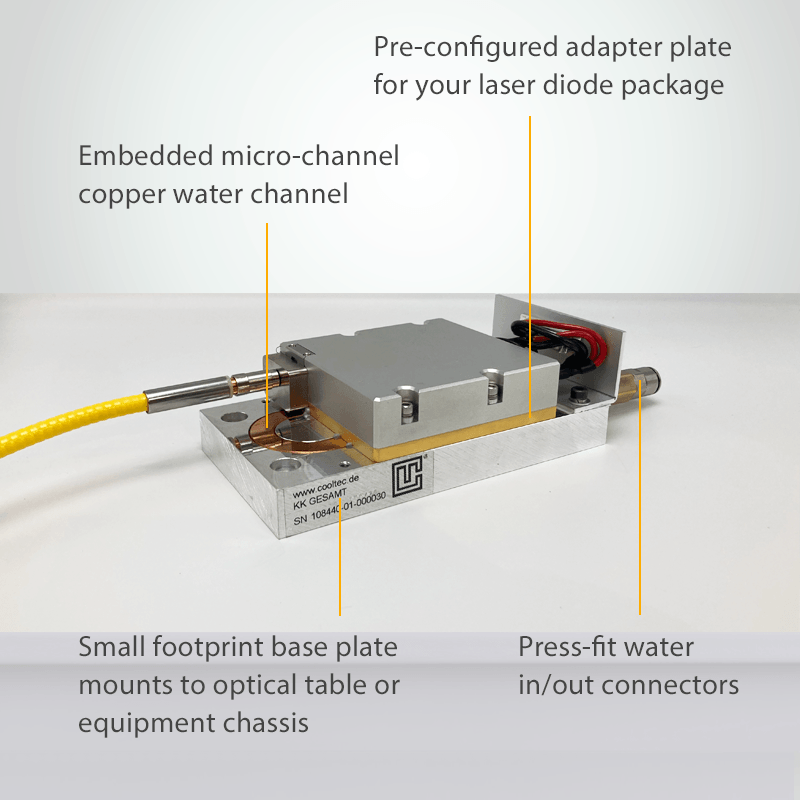

The LDM-275W high power laser diode heat sink and mounting module is a high-performance mounting solution designed for fiber coupled and free-space laser diodes. It incorporates a water-cooled base plate design which removes waste heat and stabilizes the temperature or your laser. The heat from the laser diode transfers down through the mounting plate to the water cooled heatsink at the base of the cooling block.

The heat emitting from the laser diode is conducted down through the laser mounting plate through a low thermal impedance plate surface. Copper channel pipes located in the base dissipate the heat from the base of the block into the water for removal. The LDM-275W offers a low thermal impedance of < 0.01 K/W mounting surface for the laser being tested. The thermal performance of a passively cooled heat sink is highly dependent on the thermal impedance, or resistance. This measurement is defined in units of degrees Celsius per watt of heat°C/W. The thermal resistance allows the user to determine the amount of temperature rise that the laser diode will experience for each watt of thermal energy that is emitted by the device under test. The dual fans in the base greatly improve the thermal performance of the heat sink and allow the user to set the laser temperature to a set-point which is equivalent to the lab ambient temperature. Careful machining of the mounting plate surface finish and surface flatness are also crucial to the heat sink performance.
