Integrated 250mA / 16 W Laser Diode Controller Module with Butterfly ZIF Socket

  • SF8000 Maiman 250mA Laser Diode Controller Butterfly Mount
  • SF8000 Laser Diode Controller Features

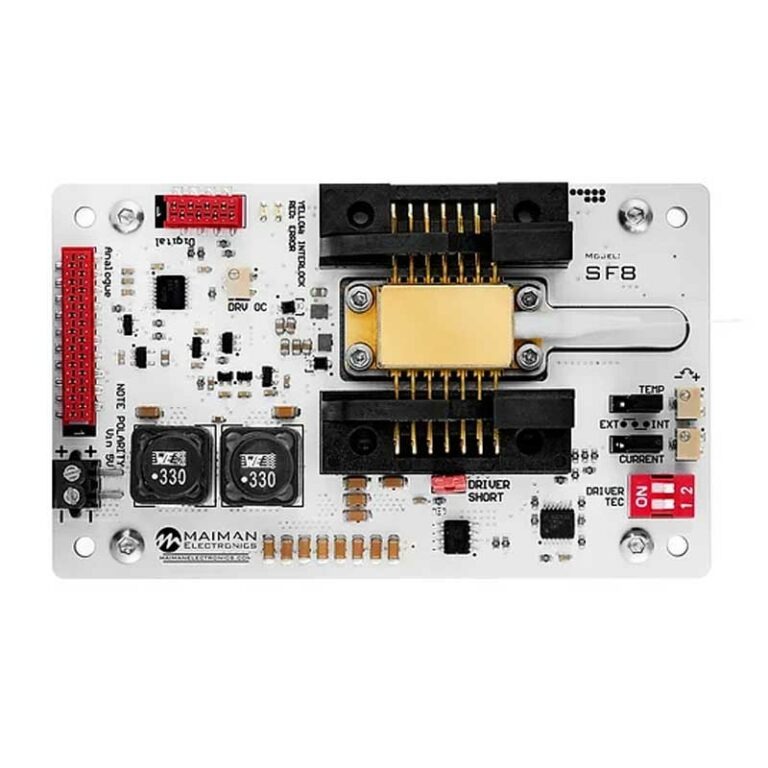

  • Hybrid Laser Diode Driver / TEC Controller / Butterfly Mount
  • Hybrid Laser Diode Driver / TEC Controller / Butterfly Mount

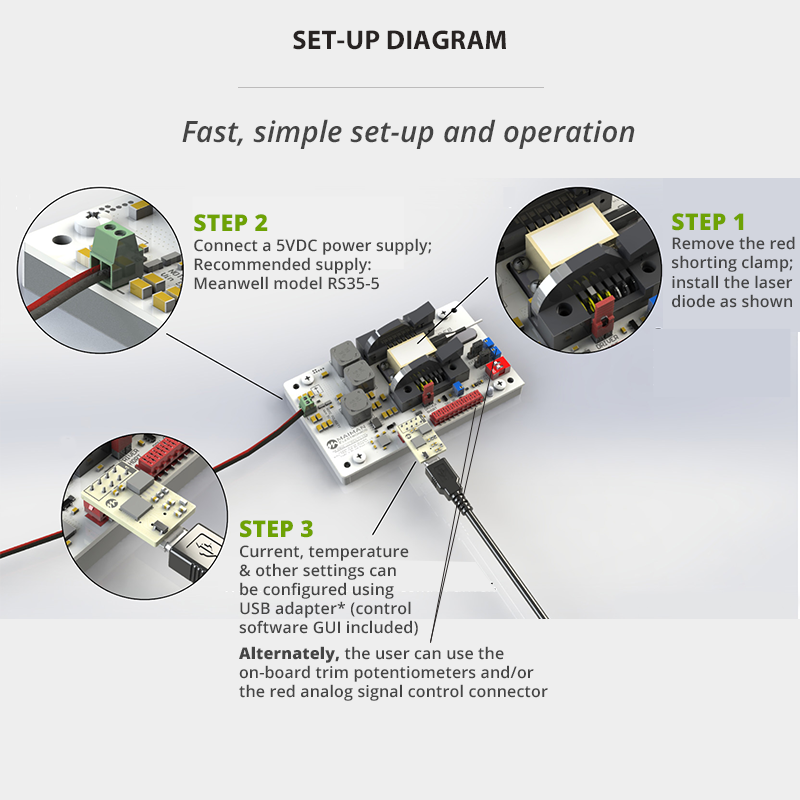

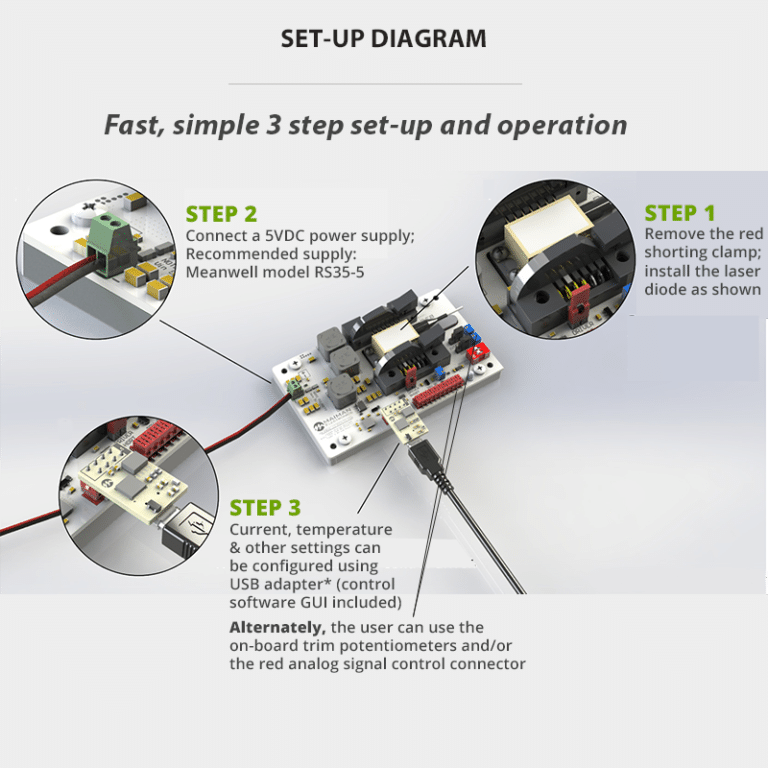

  • Infographic for Laser Diode Driver and TEC Controller Module

$685.00
sku / item#: RLS/SF8025-ZIF14
ships: 2 to 3 Weeks

Key Features
  • 250 mA Current Source + 16 Watt TEC Controller + Butterfly Mount
  • Designed for Butterfly Packaged DFB's, DBR's and Fabry-Perot Laser Diodes
  • Advanced Laser Diode Protection: Soft-Start Current Ramp, Current Limit, Temperature Limit
  • On-Board Potentiometer Control // Analog Signal Control // Digital Control UART, RS232, USB
  • Integrated full PID Temperature Controller, No Set-Up Required

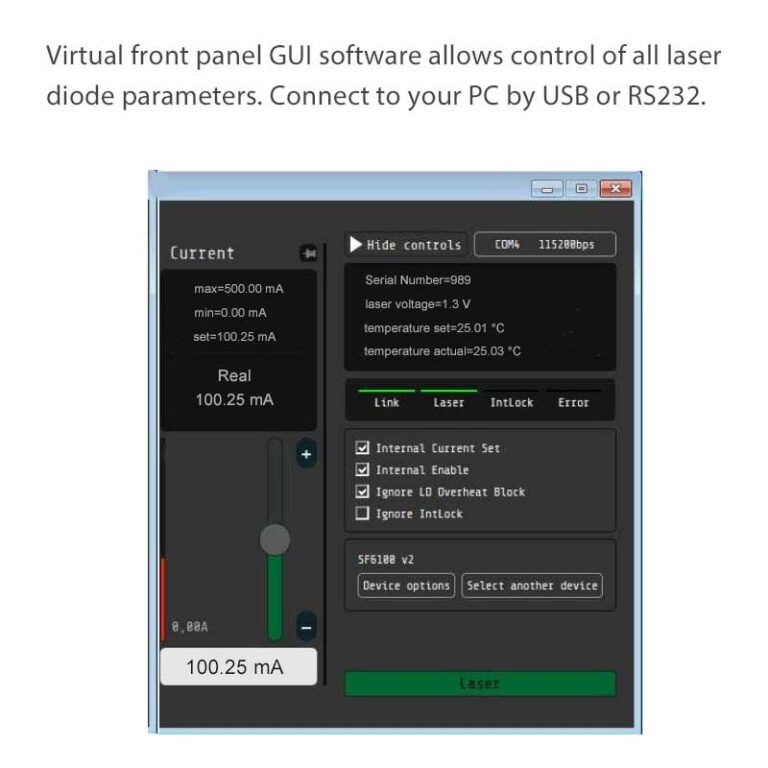

  • Free Control Software with GUI
  • Offered by Maiman Electronics, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF8025-ZIF14
PRICE $685.00
CURRENT, VOLTAGE & TEC CONTROLLER
  • Output Current Range to the Laser Diode (I): 250 mА
  • Output Voltage Range to the Laser Diode LD (V): 0.5-3 V
  • Current stability: 0.1 %
  • Current set accuracy: < +/- 1 %
  • Output current noise: 10-15 µA
  • ТЕС output power: ±4А
  • TEC output voltage: ±4V
  • TEC output current ripple: 2 ~ 4mА
  • TEC Feedback Sensor: 10 kOhm Thermistor
  • Temperature Control Range: +15 to +40 °C
Laser Diode Protection
  • Soft-Start Current Ramp
  • Current limit
  • Temperature limit
  • Reverse current protection
  • ESD and transient protection
DIMENSIONS AND WEIGHT

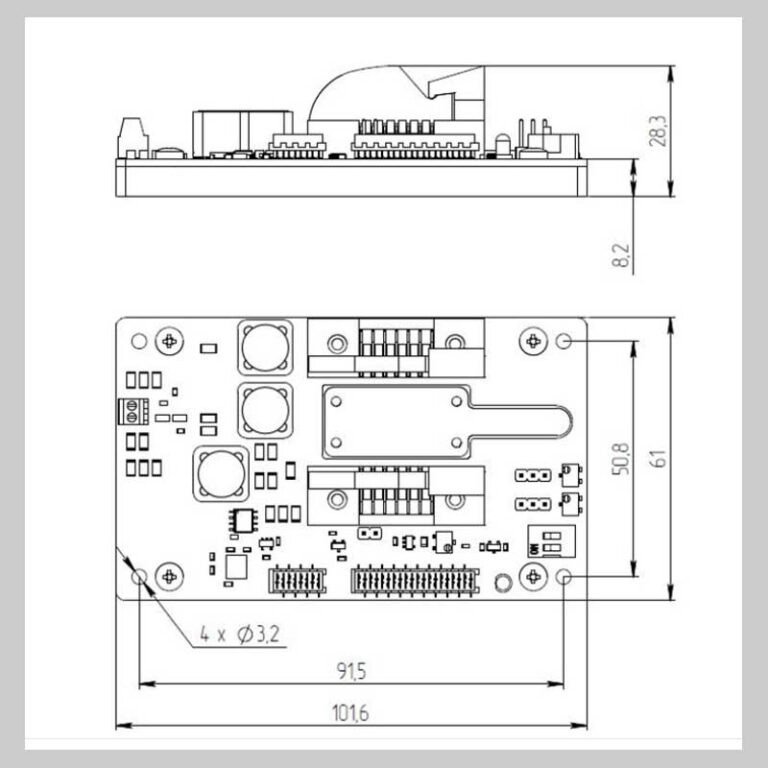

  • Dimensions 101.6 x 61 x 30 mm, quarter-brick
  • Weight: 142 g

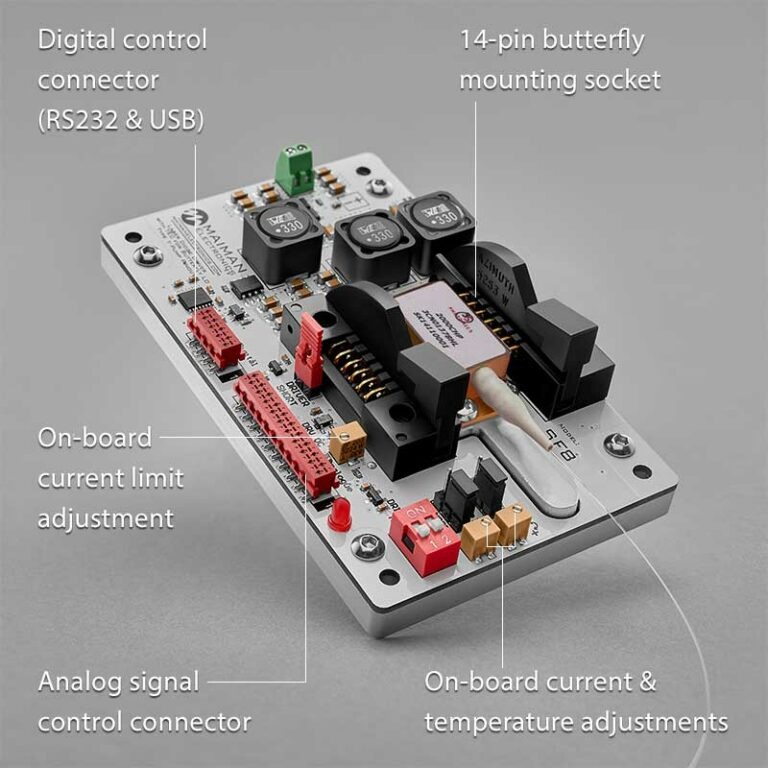

USER INTERFACE
  • Trim Potentiometers for Driver Current and TEC Power
  • Analog Voltage Control Connector (Controls All Functions)
  • RS-232 / UART/ USB
INPUT POWER
  • Input Voltage Supply (Vin): 5 VDC
PACKAGE SET
  • Driver – 1 pcs
  • 50 cm ribbon cable with one 8-pin connector – 1 pcs
  • 50 cm ribbon cable with one 20-pin connector – 1 pcs
  • Datasheet & User Manual – 1 pcs
  • USB-UART converter – 1 pcs
WARRANTY PERIOD
  • 1-year manufacturer's warranty
Pin Configuration Model Numbers

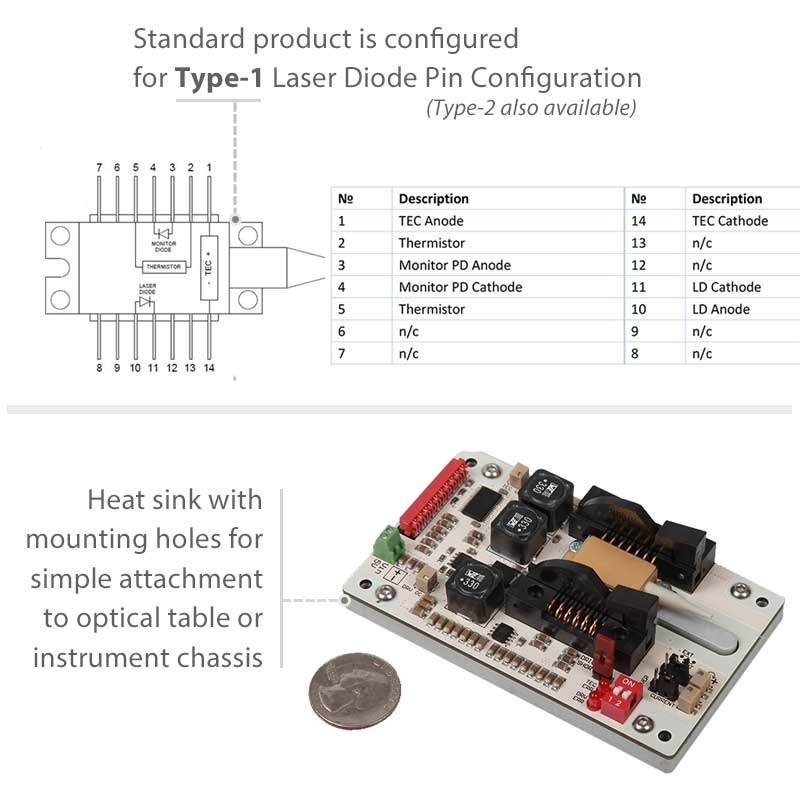

  • SF8025-ZIF14-TP2 (type 2 pin configuration)
  • SF8025-ZIF14 (type 1 pin configuration)

Product Overview:

Precision Laser Diode Controller and Butterfly Mount Module

These 250 mА low noise laser diode controllers with butterfly mounting sockets are designed to precisely provide the drive current and control the temperature of butterfly packaged devices. They come with a pre-wired mounting socket for butterfly packaged devices and also include a zero insertion force socket with clamping arms. These controllers are an excellent choice for product integration or for an affordable solution to laboratory test set-ups. These modules are also available with no Azimuth connector in a lower cost direct solder version.

Small Footprint Laser Diode Controller

These modules are the smallest footprint controller which is commercially available. Careful selection of components and and exacting design criteria allows the modules to provide complete control of your pump laser in a 61mm x 101mm package. They have a 10mm thick aluminum base plate which provides excellent heat dissipation and keeps the laser diode safely operating within your desired operating temperature range. The module base plate comes with 4 mounting through-holes, 3.2mm each, to bolt the module directly to an instrument chassis or any thermally conductive surface.

Multiple Integrated Laser Diode Protection Features

These controllers are designed to provide a series of protection features to ensure the safety of your laser diode. The module ships with a jumper which shunt the LD bias current path of the driver to protect the laser diode from any ESD / static discharges when a user is installing the diode into the mounting socket. This shunt also protects the laser when the user is connecting the DC power, the control connector or any other external equipment. An integrated reverse diode protects the laser diode from any possibility of damage from reverse current and reverse voltage. The user can set a current limit and temperature limit through the analog control connector port on through the on-board trim potentiometers. These controllers also offer a ~ 900 millisecond soft-start ramp to the current set point to avoid the potential for thermal shock to the laser.
