24 VDC Power Supply for OsTech OEM Laser Diode Driver and TEC Controller Modules

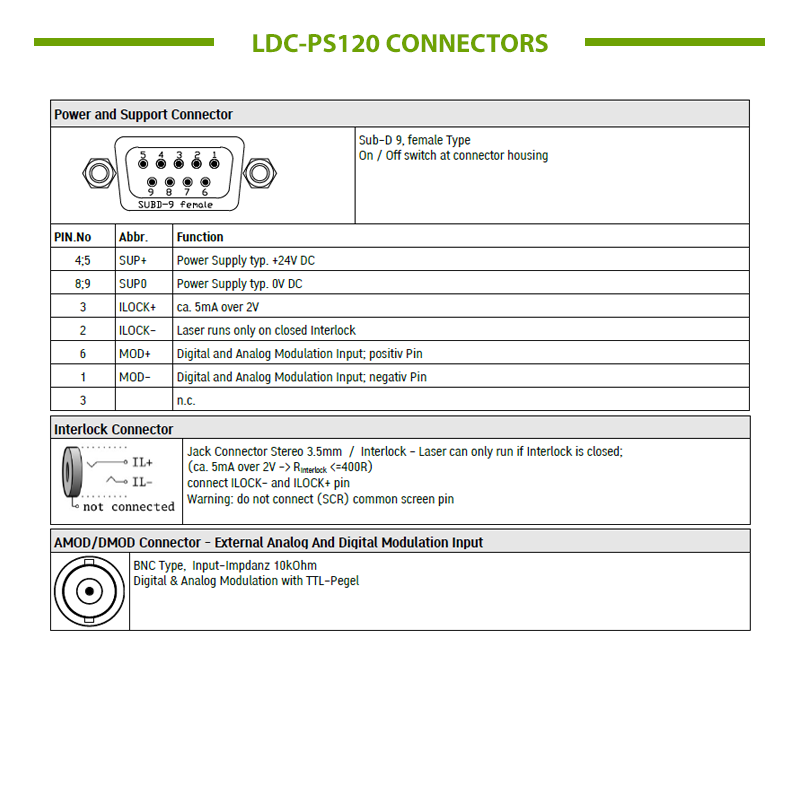

  • 24VDC Power Supply Pinout for OsTech Laser Drivers

$139.00
sku / item#: RLS/LDC-PS120
ships: 3 days

Key Features

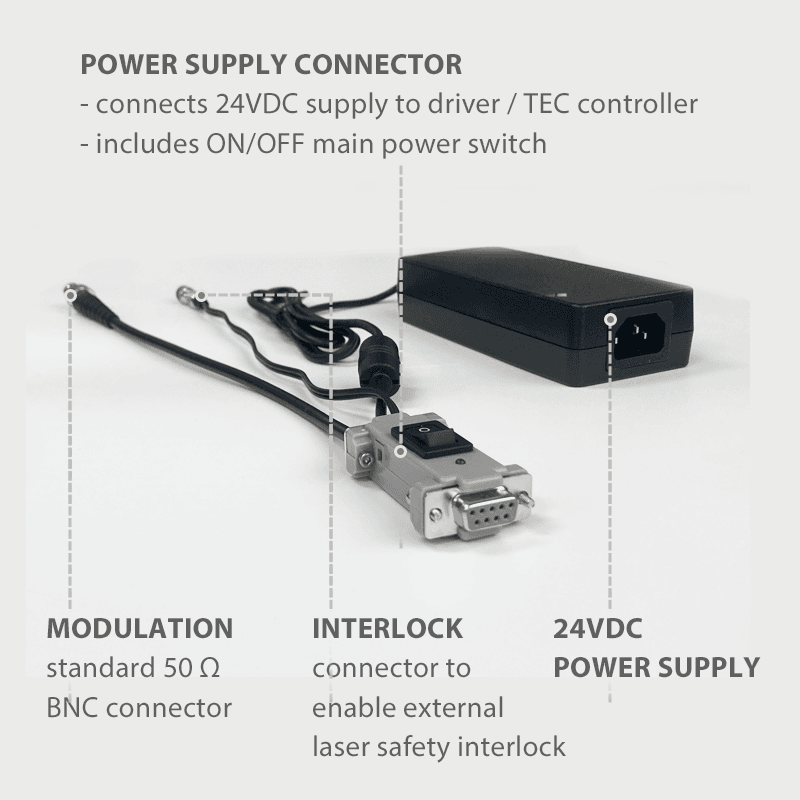

  • Includes On / Off Switch on Connector for Main Power ON/OFF and Status LED
  • Includes Wire and Connector for Connecting an External Safety Interlock Circuit
  • Includes Wire and BNC Connector for Modulation Signal Input to Laser Diode Driver
  • Standard 3-Pole AC Inlet IEC320-C14 Class I (with earth pin)
  • Protection Features: Short Circuit / Overload / Over Voltage
  • Single 9-Pin D-Sub Connects LDC-PS120 into Laser Diode Driver or TEC Controller Module
  • Offered by OsTech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/LDC-PS120
PRICE $139.00
General Features and Specifications
  • Includes On / Off Switch on Connector for Main Power ON/OFF and Status LED
  • Includes Wire and Connector for Connecting an External Safety Interlock Circuit
  • Includes Wire and BNC Connector for Modulation Signal Input to Laser Diode Driver
  • Standard 3-Pole AC Inlet IEC320-C14 Class I (with earth pin)
  • Protection Features: Short Circuit / Overload
  • Protection Features: Over Voltage / Over Temperature
  • Single 9-Pin D-Sub Connects LDC-PS120 into Laser Diode Driver or TEC Controller Module
  • Voltage Input: 90 - 230 VAC
  • Voltage Output: 24 VDC
  • Max. Power Output: 90 Watt
  • No-Load Power Consumption: < 0.5 W
  • Dimension: 145 mm x 60 mm x 32 mm

Product Overview:

Plug-and-Play Power Supply for OEM Drivers

The LDC-PS120 is a 24V DC Power Supply and AC/DC power converter for OsTech OEM laser diode drivers and TEC controller modules.

This LDC-PS120 connects directly to the O44-type OEM drivers and controllers via the pre-wired 9-pin d-Sub connector. The modulation input connector is included, as well as the external safety-interlock jack. The power supply features a universal voltage input capability, further simplifying usage in a wide range of applications.
