High Performance Laser Diode Driver, 20 Amps / 45 Volts Current& Voltage Ranges

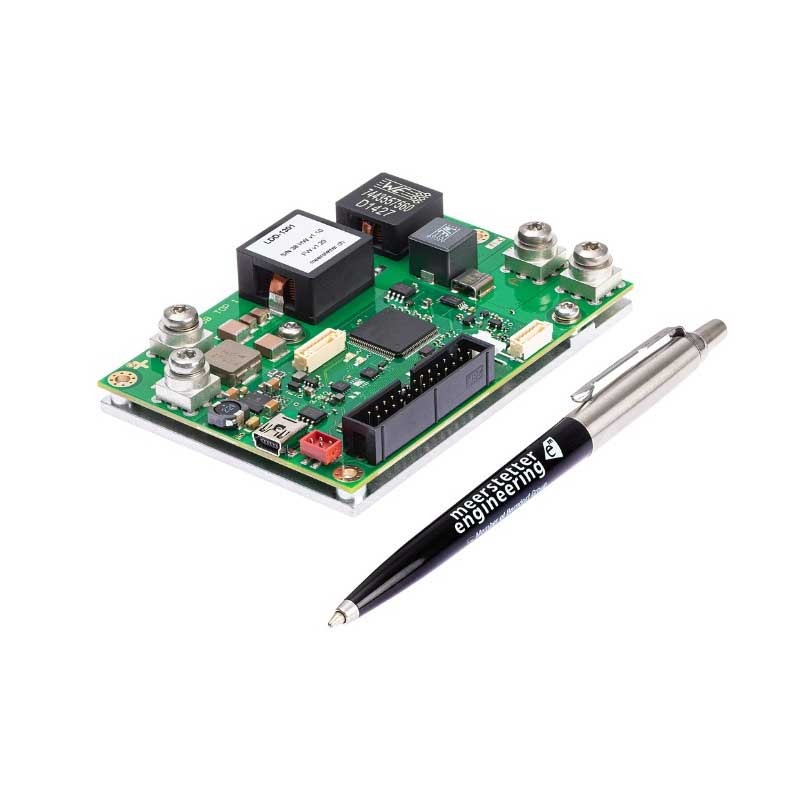

  • Model LDD-1301 Laser Diode Driver Main img

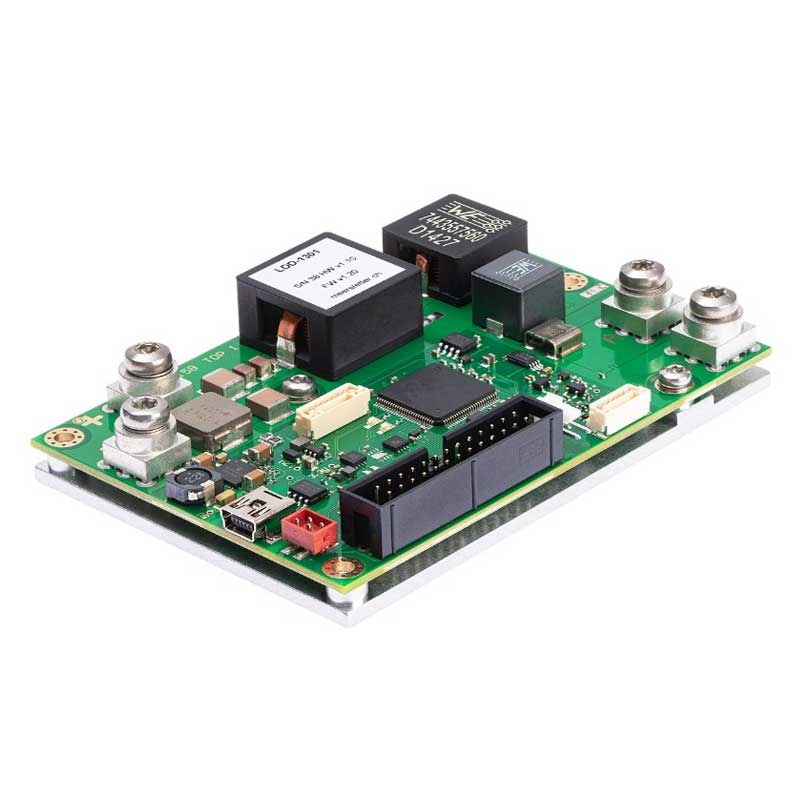

  • Model LDD-1301 Laser Diode Driver Dimensions
  • ch-image

$625.00
sku / item#: LDD-1301 / LASER-DIODE-DRIVER
ships: In-Stock (USA)

Key Features
  • Up to 20 Amp CW Output
  • Up to 45 Volt Compliance Voltage
  • Optional Laser Power Control Mode Available
  • Suited for Laboratory and Production Environments
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDD-1301 / LASER-DIODE-DRIVER
PRICE $625.00
Output Specifications
  • Output Current Range (max): 0 - 20 Amps
  • Compliance Voltage Range (max): 45 Volts
  • Current Setpoint Resolution: 2 mA
  • Current Noise (Iout > 2 A): < 0.5% of current set-point
  • Programmable Start-Up Phase
Optional Laser Power Control Mode
  • Configurable PID Control Parameters
  • LPC Feedback: Photodiode Current Input up to 4.2 mA
Laser Safety Specifications
  • On-Board Interlock Connector
  • Ultra-Fast Output Switch-Off
  • Overcurrent Shutoff
  • Thermistor Input for Laser Chip Temp. Sensing
  • Auxiliary Thermistor Input for Heatsink Monitoring
General Specifications and Input DC Power Supply Ranges
  • Supply Voltage: 10.5 V – 48 VDC (53 VDC max)
  • Supply Current: 0 – 19 A
  • Recommended Input Voltage Ripple (max): 300 mVpp
  • Operating Temperature Range: 0ºC to 50ºC
  • Operating Humidity: 5% – 95%, non-condensing
  • Dimensions: 100 mm x 70 mm x 20 mm
  • Efficiency: >90%, at 50% load
  • Cooling: Conductively Cooled Baseplate
  • Communication: RS232, RS485, USB 2.0

Product Overview:

20 Amp, 45 Volt Laser Diode Driver

The LDD-1301 is a precision current source that is primarily designed to operate in CW mode. It's advanced performance features make it an excellent choice for integration into laser diode systems as well as use in laboratory R&D. Basic system status is visually indicated by on-board LEDs, more detailed status information can be polled at any time. The LDD can operate in a stand-alone configuration as well as in a remotely-controlled manner, with parameters adjusted on the fly. The laser diode driver is current-PID-controlled. Equipped with optional light measurement circuitry, the LDD-1301 can also be operated as a Laser Power Controller (LPC). Inquire for details and ordering information.
.
The laser diode driver LDD-1301 offers a variety of communication interfaces such as USB 2.0, RS485, RS232 TTL and CANopen CiA 301, allowing easy integration into a wide range of systems. This flexibility in communication toghether with the free of charge LDD-130x Service Software allows easy control and fault diagnosis in real time.
.
One of the outstanding safety functions of the LDD-1301 is the switch-off mechanism, which protects the laser diodes in the event of overcurrent or overvoltage. This is particularly important in sensitive applications where sudden current peaks could lead to irreparable damage. In addition, the integration of temperature sensors enables continuous monitoring of the laser diodes and provides an early warning in the event of temperature deviations, which also helps to extend the service life. An interlock input provides an additional safety level, which is particularly important in critical applications to ensure safe operation of the laser diodes.
.

Low Noise Output / Industry Leading Laser Diode Protection Features

These modules are innovative current drivers that contain a proprietary current source able to precisely drive laser diodes in CW mode. The driver board can be equipped with an optional laser power measurement circuit / photo-diode input. The LDD-1301 includes an input to monitor laser diode temperature (NTC thermistor input) and includes an auxiliary thermistor input to monitor the heat sink temperature. The LDD-1301 is fully digitally controlled; the firmware is upgradeable to offer various communication options and to meet specific customer requirements.
.
