High Power Benchtop Laser Diode Driver, Advanced Multi-Level Laser Diode Protection, 20 Amps / 30 Volts Driver Range

  • Laser Diode Driver Model LDI-726
  • Laser Diode Driver Model LDI-726 Software

$3695.00
sku / item#: LDI-726
ships: Request a Quote for Current Ship Date

Key Features
  • Laser diode driver ranges: 20 Amps, 30 Volts
  • Advanced multi-level protection features to safeguard your laser diode:
    - Soft-start current ramp
    - Current & temperature limits
    - Power surge & ESD clamp circuit
    - Transient suppression filters
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).


This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).


This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and a
2W2 d-sub connector (female) on the device end (kab-297).


This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and unterminated
on the device-end (kab-286).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDI-726
PRICE $3695.00
LASER DIODE DRIVER output (CURRENT and voltage SOURCE)
  • Output Current Range: 0.00 - 20.00 Amps
  • Compliance Voltage Range: 0.00 - 30.00 Volts
  • Current Noise & Ripple (rms): <± 0.5% of Full Scale Current
  • Current Setpoint Resolution: 5 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 200 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds; User Adjustable
  • User-Programmable Current Limit
  • Open Circuit Detection; Fast, Safe Shut-off
  • Short Circuit when Laser Diode Current Turned Off
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Rear Panel Keylock Switch and Safety Interlock
  • Front Panel e-Stop Button Emergency Shut-Down
MODULATION and QCW (Quasi-CW) MODE
  • Pulse Width Range < 25μs to CW, 10%-90% (< 10μs on request)
  • Integrated QCW Pulse Generator, also Accepts External Trigger for QCW Pulses
  • Pulse Time Base Accuracy: ± 1.0% QCW Mode Trigger: Internal (Integrated) Function Generator or External Trigger
  • QCW Mode Trigger: Internal (Integrated) Function Generator or External Trigger
  • Modulation Input & Output: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
AUXILIARY FUNCTIONS AND CONNECTIONS
  • Laser On/Off Status Indication (TTL; On = High), vs. Gnd
  • Pilot Laser Output, vs. Gnd
  • Photodiode Cathode, vs. Gnd
  • External Temperature Sensor Input (NTC 10kΩ @ 25°C), vs. Gnd
  • External Cooling Fan Output (1 - 24V, 800 mA) , vs. Gnd
User INTERFACE and Connectors

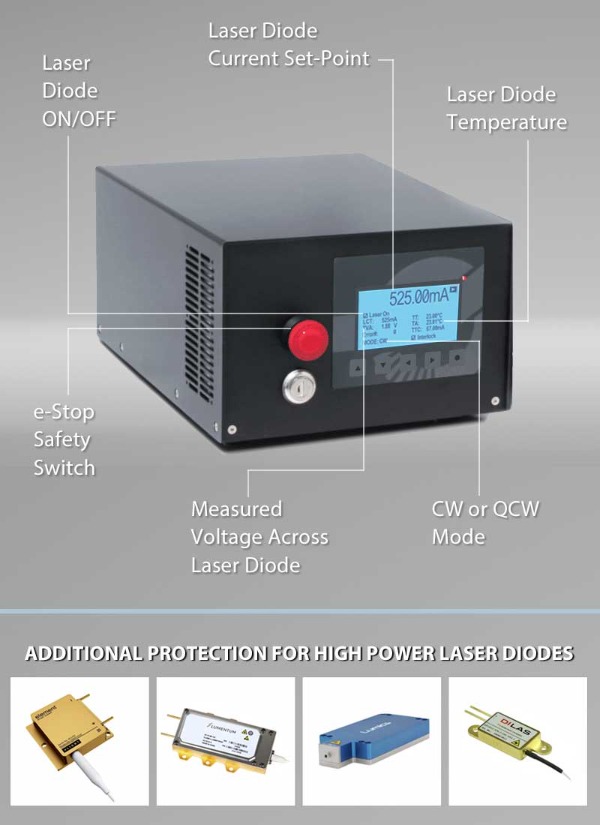

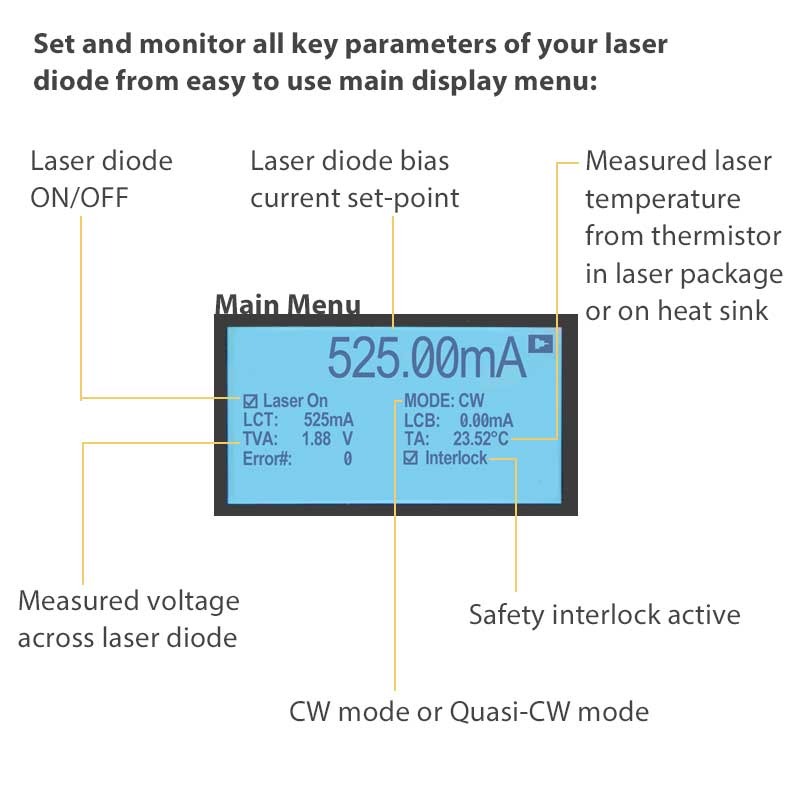

  • Front Panel: Alphanumeric LCD with Key Pad
  • RS232 Standard, SubD-9, Female
  • USB Option Included
  • LabView Drivers Included

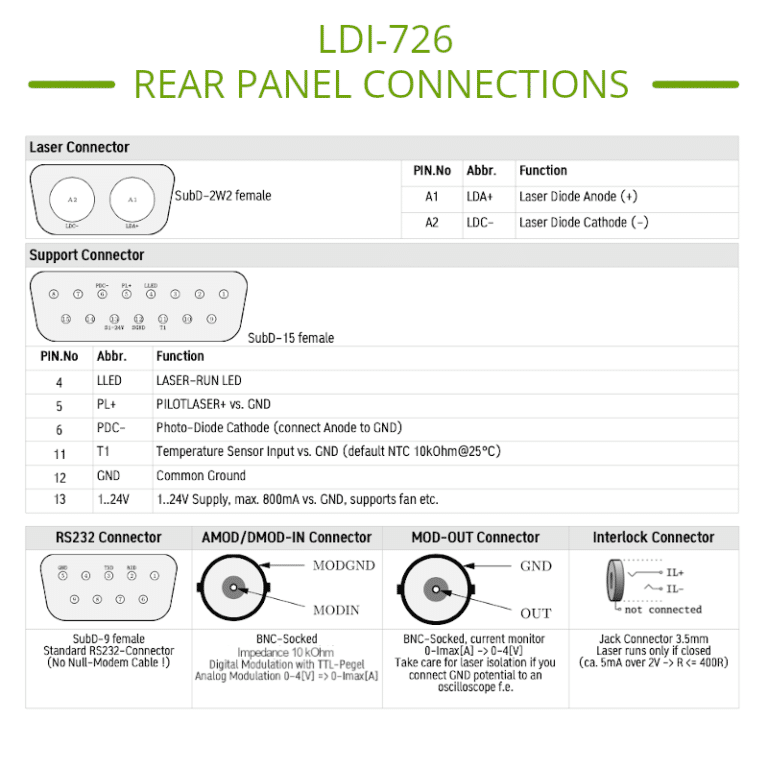

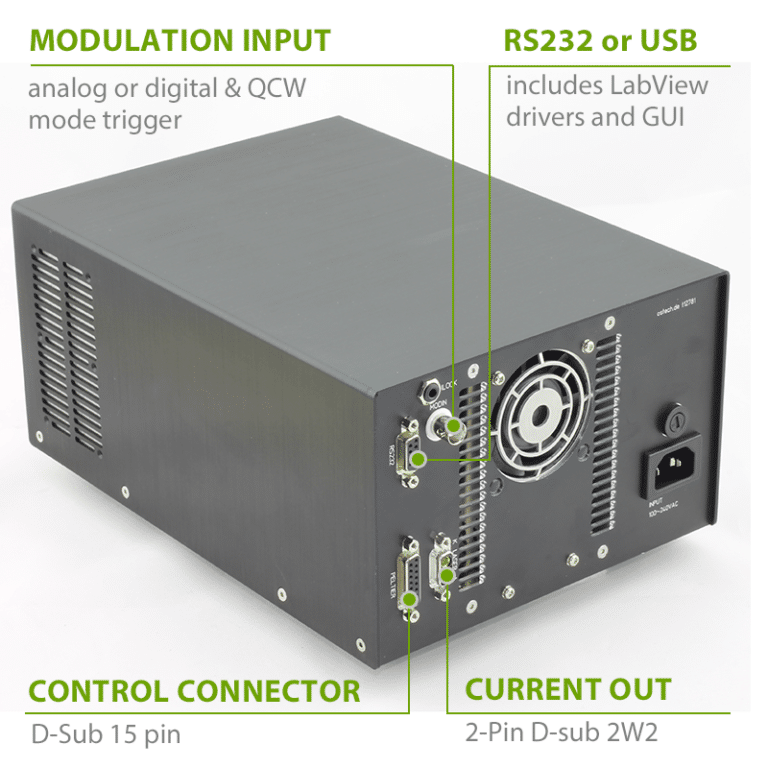

  • Laser Diode Connector: SubD-2W2, Female
  • Auxiliary Functions Connector: SubD-15 female
  • RS232 Connector: SubD-9, Female
  • Safety Interlock: Jack Connector, Stereo 3.5mm
DIMENSIONS AND POWER INPUT
  • Power Input: Universal 100V ~ 240 VAC, 50/60 Hz

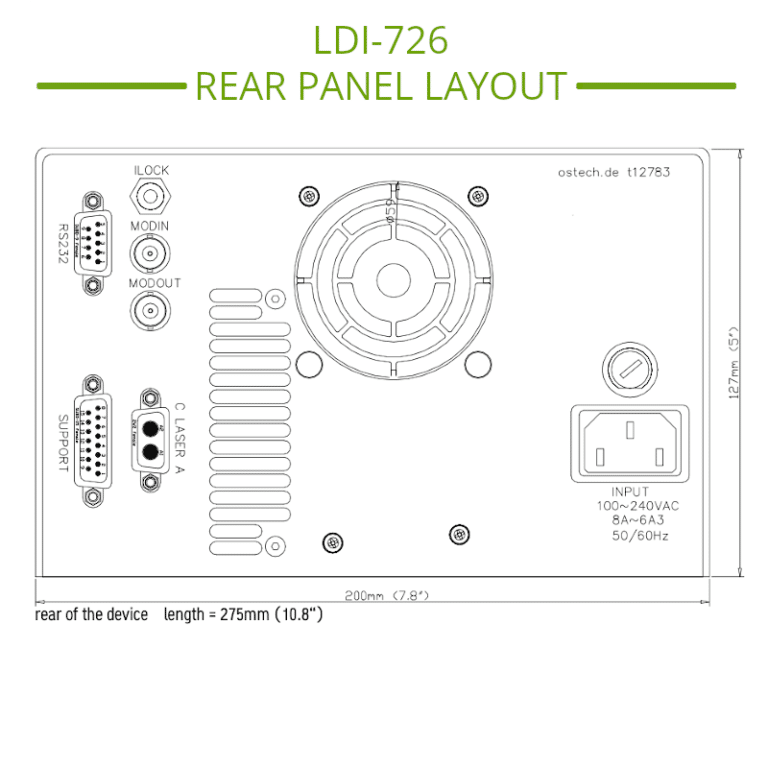

  • Dimensions: 127 mm (H) x 200mm (W) x 275 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable
  • kab-286 Unterminated Power Cable -or-
    kab-297 Terminated Power Cable

Product Overview:

LDI Series Laser Diode Drivers

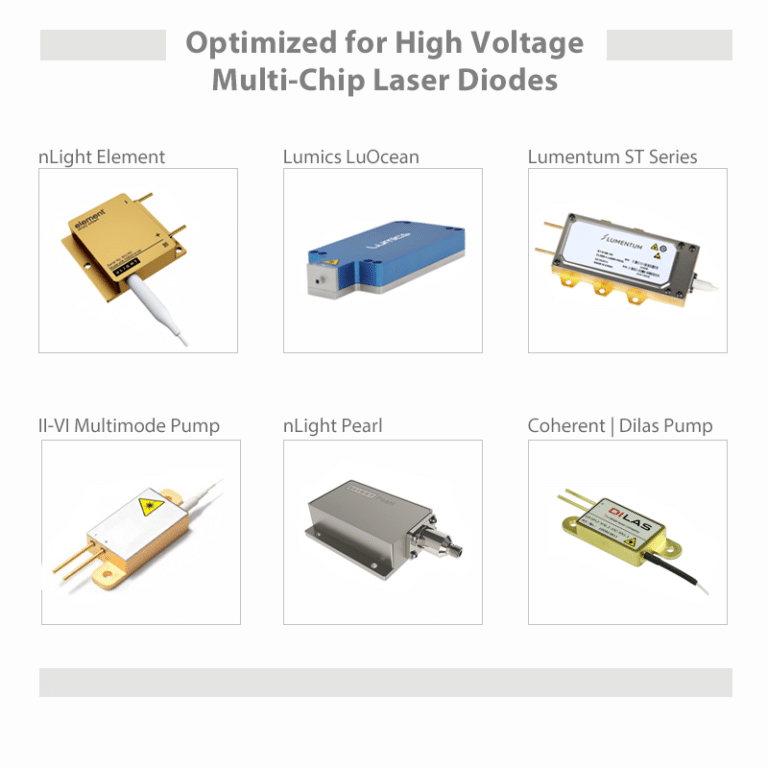

The LDI series laser diode diode drivers are precision-engineered to electrically bias high power laser diodes while protecting them from the common causes of damage which can potentially harm or destroy semiconductor lasers. Because high power lasers require relatively high levels of DC current and voltage, and generate high levels of waste heat, they have a unique set of electrical and thermal requirements which need to be addressed to protect them from being damaged. Additionally, the driver has been designed with features to assist the user to safely operate the laser diode under test.

Laser Diode Protection Features

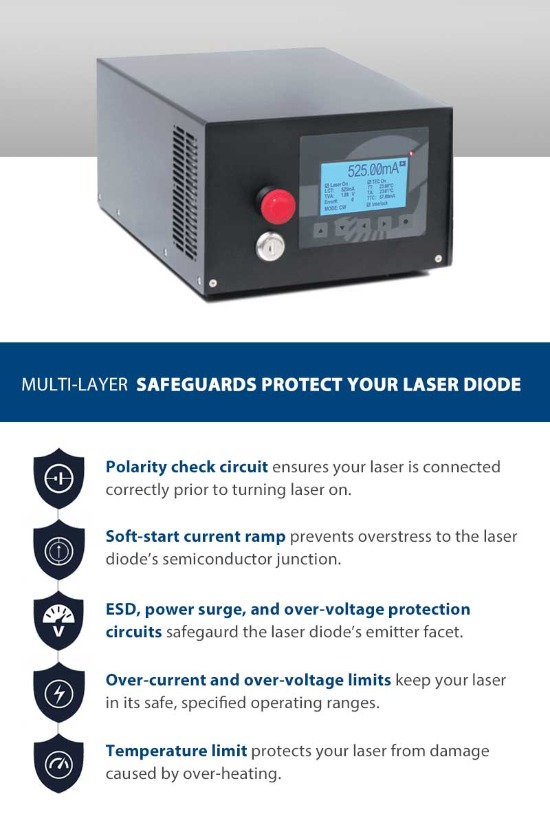

These units offer the highest level of commercially available laser diode protection to ensure that your laser is protected from damage. Current and voltage limits, upper and lower temperature limits, and a fast shut-down sequence keep your device protected at all times. The following protection features combine to safeguard your laser diode:
  • Polarity Check: A dedicated circuit biases the laser with a very small power level to ensure that it is installed properly to prevent damage caused by incorrect wiring.
  • Soft-Start Current Ramp: Gradually increases current to prevent sudden surges that could damage the laser diode. The LDC series units offer the ability for the user to customize the ramp time if desired. The factory default is set to 300 milliseconds.
  • Over-current Protection: Prevents excessive current from flowing into the laser diode.
  • Over-voltage Protection: Limits the voltage applied to the laser diode.
  • Reverse Voltage Protection: Protects against accidental polarity reversal which can permanently damage the diode.
  • Thermal Shutdown: Monitors the laser temperature and automatically shuts down if over-heating occurs.
  • Current Limit: Allows users to define a maximum current threshold to safeguard the diode.
  • Compliance Voltage Limit: Ensures the voltage supplied to the diode remains within safe operating conditions.
  • Transient Suppression: Filters out power supply transients and electrical noise that could cause instability.
  • Short-Circuit Protection: Detects and prevents damage caused by accidental short circuits in the laser diode current circuit.
  • Interlock Safety Mechanism: Requires an external hardware switch or key to enable laser operation, adding an extra layer of safety.

Constant Current Source Laser Diode Driver

The LDI series drivers are based on high stability, low-noise current source topology to ensure optimal performance from your laser diode. They provide exceptionally low drift, allowing for consistent and repeatable results. The constant current source topology is based on a precision sense resistor which is placed in series with the laser diode. The voltage across this sense resistor is fed into a differential amplifier, which compares it to the reference voltage. If the measured current deviates from the setpoint, the feedback loop adjusts the control voltage applied to the pass transistor (MOSFET). The transistor acts as a variable resistor, dynamically adjusting to maintain the desired current. The current source automatically adjusts its output voltage to meet the laser's requirements while keeping the current constant.

Modulation, Internal Function Generator and QCW Modes

In addition to CW (continuous wave) mode of operation, the LDI series laser diode drivers offer flexible modulation capabilities and a built-in QCW function generator. The rear panel of the controller has a BNC input for analog or TTL digital modulation inputs with a 10k Ω input impedance. The controller has an internal function generator which can be used to set the quasi-CW (QCW) pulses. In QCW mode, the user can also set QCW pulses from a remote TTL signal source or by using the internal function generator.

User Interface: Front Panel LCD Display with Keypad (model dependent)| RS232 & USB Interfaces | Analog Signal Controls

These driver & tec controller units offer multiple user interface options. Depending on the model, the user has complete control of all laser diode parameters through an intuitive front panel menu. The front panel has an LCD display with a keypad. For remote control, all models come standard with a RS-232 interface and USB adapter. For all models, the LabView GUI (included) makes set-up and control of the system fast and simple. An open-source terminal software program is also available for download. The user can also control the unit using analog controls signal inputs available on the rear panel.
