2-Channel Laser Diode Driver, TEC Controller and Mount Module; 1 x PULSED and 1 x CW Driver

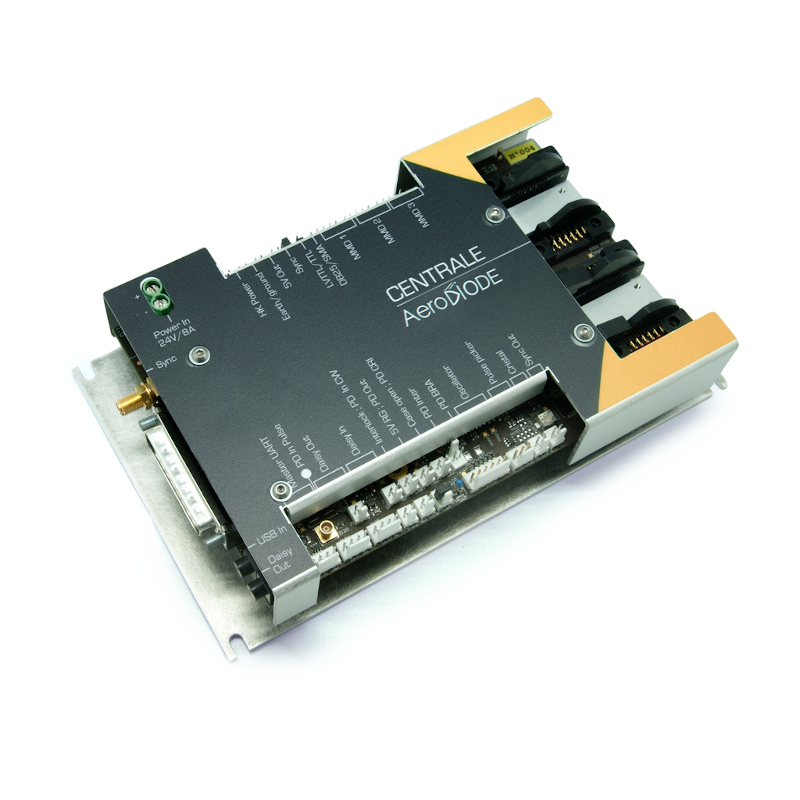

  • Laser Diode Driver 2 Channels Pulsed and CW
  • Pulsed Laser Diode Driver Dimensions

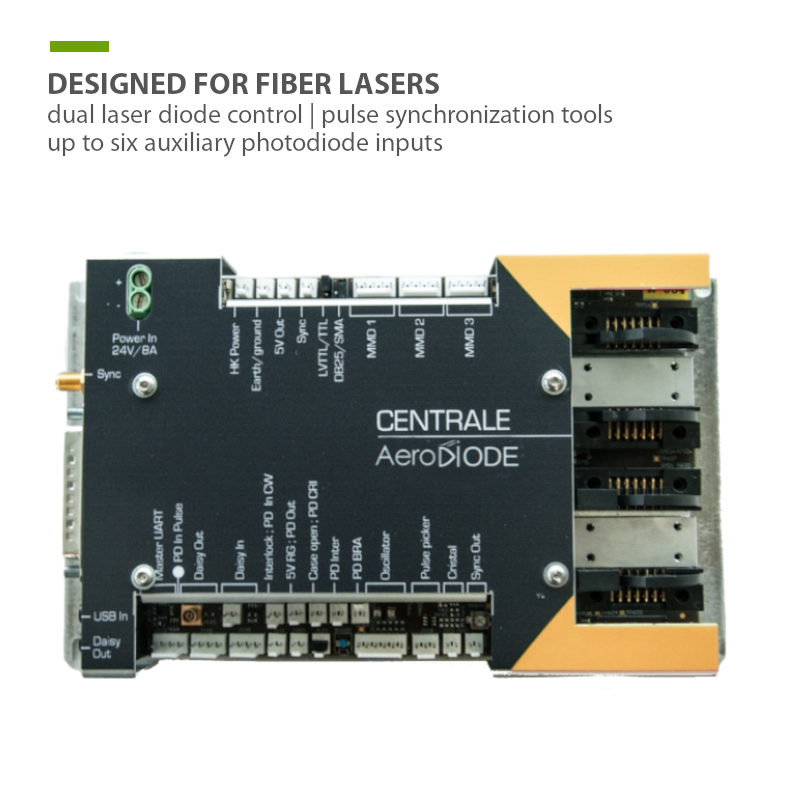

  • Laser Diode Driver and TEC Controller Module
  • Driver and TEC Controller for Laser Diodes

$4995.00
sku / item#: CCS-CENTRAL / Driver & Mount Module
ships: 1 to 2 weeks

Key Features
  • Two Channel Laser Diode Driver + TEC Controller + Butterfly Package Mount Modul
  • 1 x CW Driver: 1500 mA Range
  • 1 x Pulsed Driver: 3500 mA Range; Pulse Duration 1 nsec to CW
  • USB Interface, Includes Programming Tools, Software Suite, DLL Library, and GUI
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL CCS-CENTRAL / Driver & Mount Module
PRICE $4995.00
DUAL LASER DIODE CURRENT SOURCE
  • Channel 1 Specifications:
  • CW Output Current: 0 mA - 1500 mA

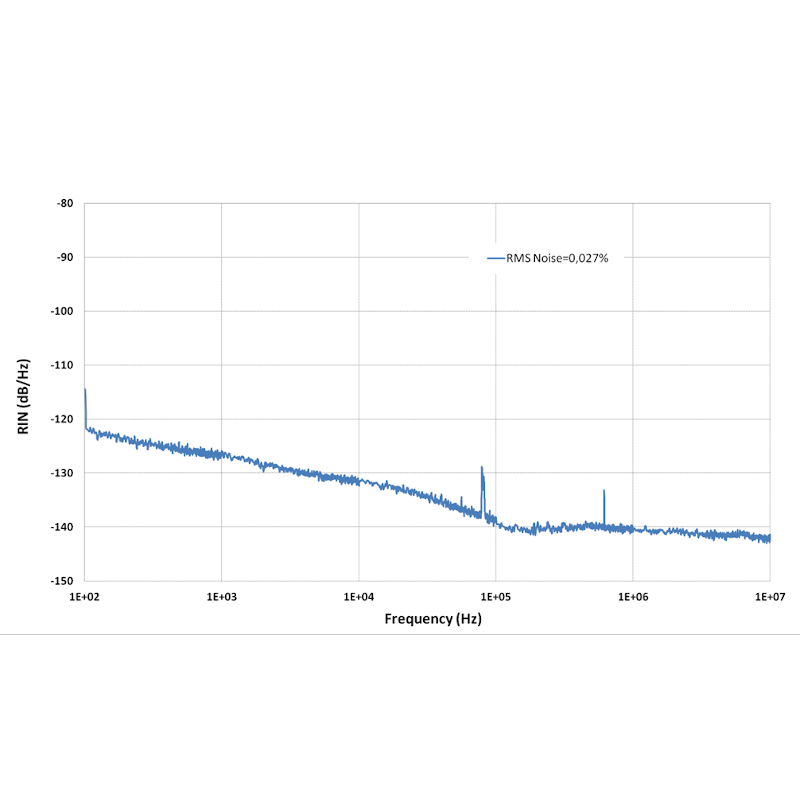

  • Noise Level: 0.03% RMS
  • Adjustment Precision: 0.05 mA
  • Current Stability: 0.01%
  • Temperature Stability: < 10 mK
  • Channel 2 Specifications:
  • CW Current: 0 mA - 800 mA
  • Pulsed Current: 0 mA - 3500 mA
  • Pulse Duration: 1 ns to CW
  • Pulse Jitter: < 10 psec
  • Pulsed Repetition Rate: 0 - 200 MHz
  • Adjustable CW Offset in Pulsed Output Mode (Channel 2)
TEC CONTROLLER & MOUNTING SOCKET
  • Zero Insertion Force Mounting Socket with Clamping Arms
  • Low Thermal Resistance Anodized Aluminum Butterfly Mount
  • Adaptable to All Butterfly Laser Diode Pin Configurations
  • Diode Chip Temperature Range: 10ºC to 55ºC
  • Temperature Sensor Compatibility: NTC Thermistors
  • TEC Control Loop Type: Bipolar
Laser Diode Protection
  • User Set Current Limit
  • User Set Temperature Limit
  • Safety Interlock
  • Soft-Start Ramp to Current Set-Point
  • Transient and ESD Surge Clamp
  • Closed Short Circuit (when laser OFF)
Additional Features
  • Pulse Picker Synchronization Tool
  • Up to Six Photodiode Inputs (Optional)
  • Feature Set Designed for Fiber Laser Architectures
  • Interface Capability for up to Three 10 Watt - 200 Watt Multi-Emitter Laser Diode Controllers
General Specifications

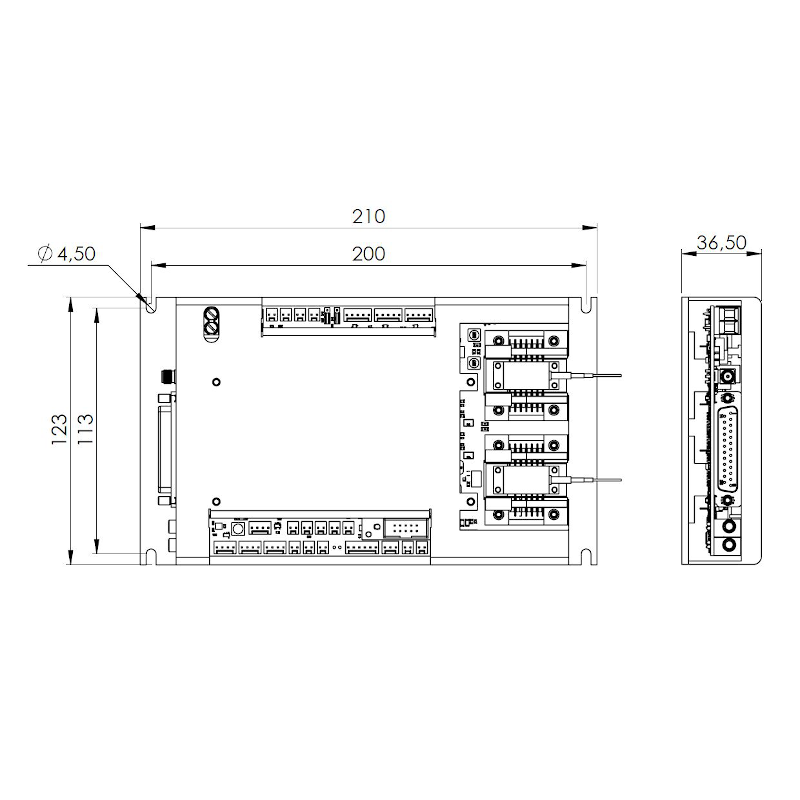

  • Dimensions: 210 mm x 123 mm x 36.5 mm
  • Power Supply: +24 VDC, 8 A
  • PC Interface: USB with GUI and Control Software
  • USB Cable: Micro-Connector to Standard PC USB Connector Included

Product Overview:

2-Channel Laser Diode Control Electronics and Mount Module

These laser diode control and mounting modules are designed for precision control of two butterfly packaged laser diodes. The 2 driver channels include a 1,500 mA CW driver and a 3500 mA pulsed driver. Both channels include precision TEC controller and zero-insertion force sockets for butterfly packaged laser diodes.

Optimized for Fiber Laser Development and Fiber Laser Systems

This two-channel laser driver is well suited for fiber laser architectures such as mode-locked, Q Switch, MOPA, EOM modulation, Gain Switch, Microchip oscillators etc. The controller delivers the high performance necessary for fiber lasers in terms of noise, precision, response time, interlocks etc. Each channel is equipped with a high-stability temperature controller to ensure the highest level of power and wavelength stability.

The controller includes a powerful set of features for fiber laser applications: up to six photodiode inputs, pulse synchronization, and it can be conveniently interfaced to AeroDIODE high power laser diode drivers for 10 Watt - 200 Watt multi-emitter laser diodes. The controller can be programmed for a carefully sequenced fiber laser start-up procedure.

Comprehensive Laser Diode Protection

The integrated laser diode protection circuits protect your device at all times. The user-set current limit and user-set temperature limit clamp both the bias current and the operating temperature to prevent damage to the laser. Soft-start current ramp to the drive current set-point protects the laser from the possibility of thermal shock or current surges. Finally, the integration of the mounting socket directly with the current source eliminates the need for cables and connectors from the current path, which greatly reduces the likelihood of ESD damage to the laser from plugging and unplugging cables, and prevents external electronic noise affecting the diode drive current signal.

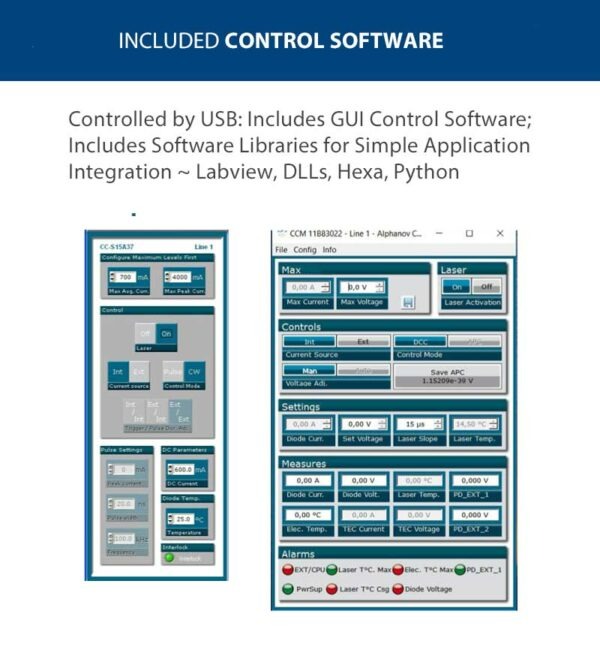

USB Interface and Versatile Controller Software

The controller is equipped with a USB interface, and delivered with easy-to-use GUI software. Several software conrol libraries are provided for custom control software development, including Labview, DLLs, Hexa, and Python.
