Picosecond 2 Amp Pulsed Laser Controller and Mount Module
- Integrated Mount Butterfly Lasers
- Pulse Width 40 - 150 picoseconds
- ±1.5 Amp, 6 Watt TEC Driver

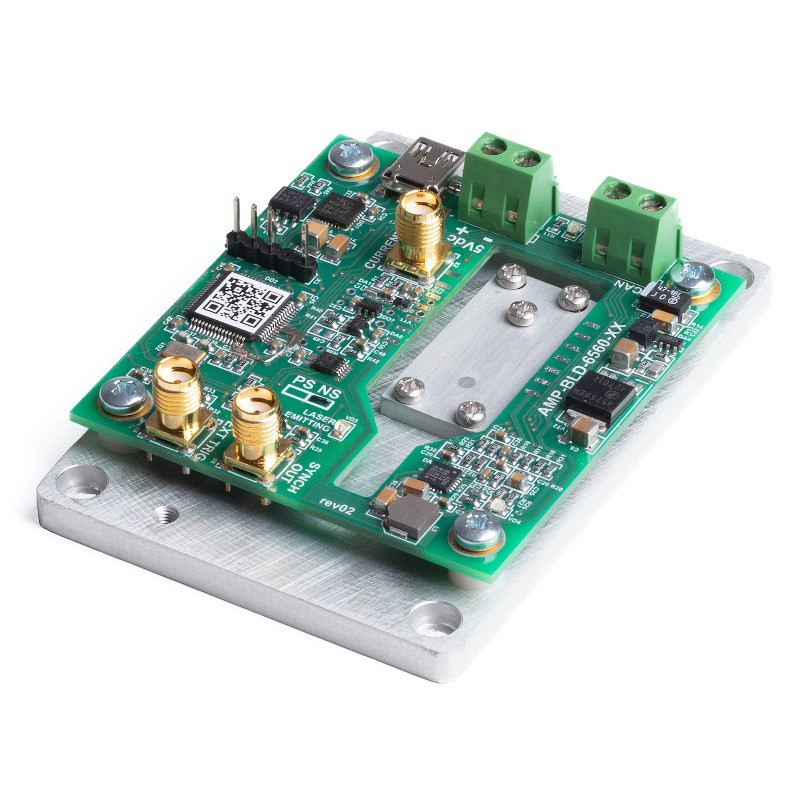

  • 2 Amp Picosecond Pulse Laser Controller Ampliconyx

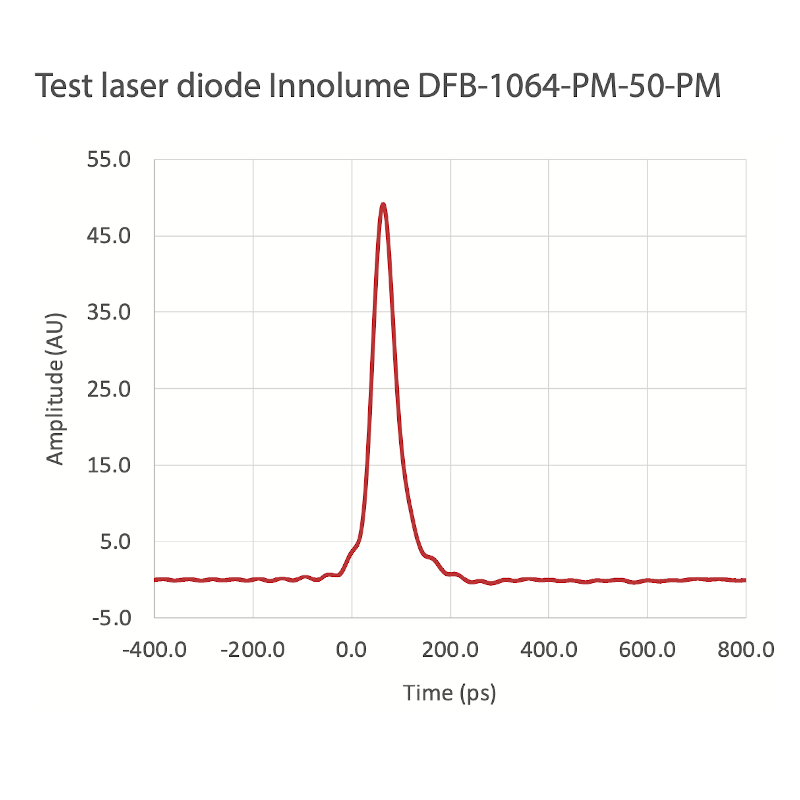

  • Picosecond Pulse Laser Driver Pulse Shape

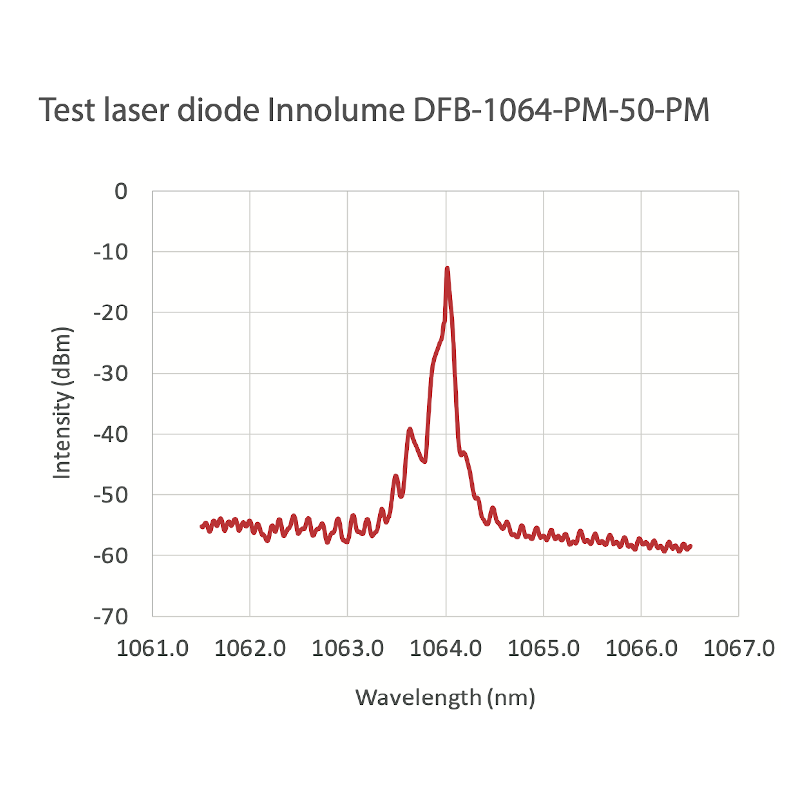

  • Picosecond Pulse Laser Driver Pulse Intensity

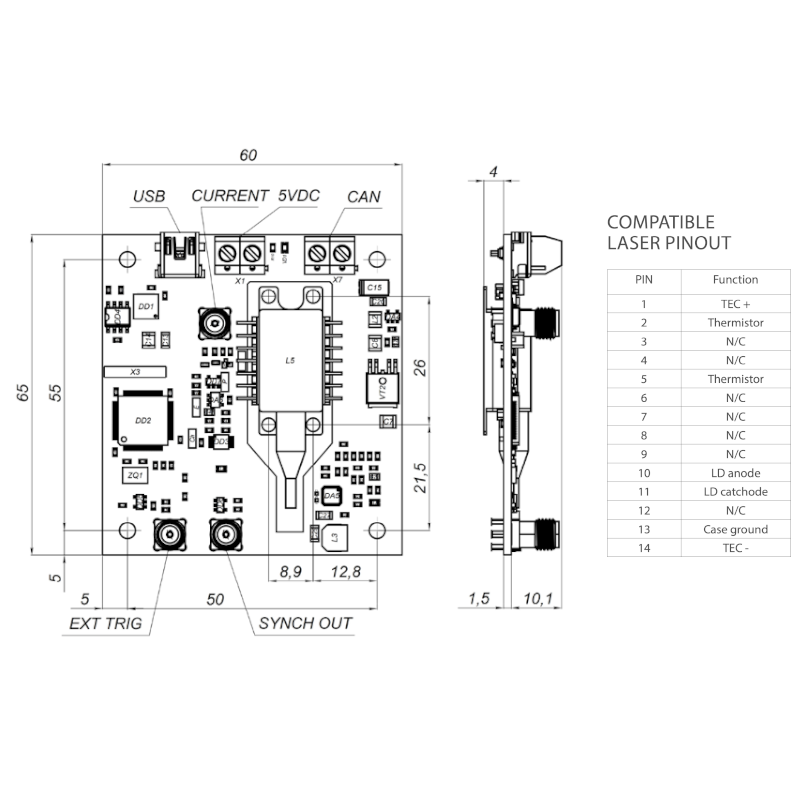

  • 2 Amp Picosecond Pulse Laser Driver Dimensions

$520.00
sku / item#: RLS/AMP-BLD-6560-PS-USB
ships: 2 Weeks

Key Features
  • 2 Amp Picosecond Pulsed Driver
  • Pulse Width 40 ps to 150 ps
  • External TTL Trigger, 1 kHz to 10 MHz
  • TEC Current: ±1.5 A, 6 Watts
  • Integrated Butterfly Laser Mount
  • USB Interface Standard; RS232 Also Available
  • Offered by Ampliconyx , a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/AMP-BLD-6560-PS-USB
PRICE $520.00
Pulsed Laser Driver Specifications
  • Output Current: 2000 mA
  • Compliance Voltage: 1 - 3 V
Laser Driver Pulse Performance
  • Pulse Width Range: 4 - 150 ps
  • Pulse Width Step: 0.2 ns
  • Pulse Repetition Rate: 0.001 - 10 MHz
  • Rise Time: 40 - 60 ps
  • Fall Time: 40 - 100 ps
  • External Trigger: 3.3 - 5 V, 50 Ω impedance
Temperature Controller Specifications
  • TEC Current: ±1.5 A
  • TEC Voltage: 1 - 4 V
  • TEC Voltage Range: 15°C - 45°C
Control Interface and Connectors
  • USB: Mini-USB, Type B (Standard Interface)
  • RS232: D-SUB9 (Optional)
  • CAN: 2-pin Terminal Block (Optional)
  • Ext. Trigger: SMA Jack (73251 - 1350 Molex)
  • Control Center Driver Software Included
Power and Mechanical
  • Power Input: 4.8 - 5.2 VDC
  • Input Current: 0.6 A
  • Size: 65 mm x 60 mm x 14 mm

Product Overview:

2 Amp Picosecond Pulsed Laser Controller Overview

AMP-BLD-6560-PS is a compact, short-pulse seed laser diode driver for powering 14-pin butterfly laser diode modules for applications which require pulse widths from 40 ps to 150 ps.

Pulsed Controller Features:
    - Output pulse monitor via SMA-connectors
    - 1.5 A, 6 Watt TEC controller with PID control loop
    - Pulse Repetition Rate 1 kHz to 10 MHz - TTL-external pulse repetition rate control, single-shot to 10 MHz


Simple, Effective, Versatile Interface for OEM Applications

The main parameters of AMP-BLD-6560-PS (output current, pulse width, repetition frequency, temperature set point) are controlled by computer interface. Using the Control Center Driver software, a single pulse controller can be controlled via the standard USB-interface. The controller can be ordered with an RS232 interface, or up to ten controllers can be managed by a single computer using the optional CAN interface and Ampliconyx CAN hub. Inquire for details or to order the pulse driver with the different computer interface options.

By connecting controllers to the Ampliconyx CAN hub, up to ten drivers can be controlled simultaneously using the Ampliconyx Control Center Driver software.

Single Power Supply Input

To simplify powering the controller in OEM applications, the controller requires a single 5 VDC power source. All other needed voltages are generated on the board by high-efficiency switching power supplies.
