17.5W OEM Board-Level TEC Controller
- Fully-Molded for Reliability
- 0.001ºC Stability

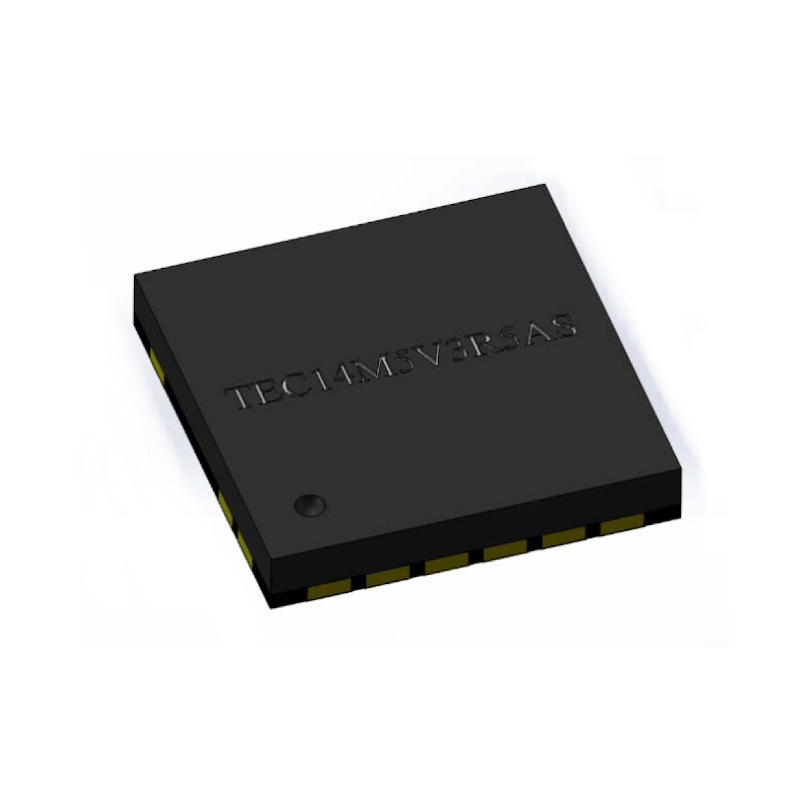

  • SMT TEC Controller, 17.5W Output
  • Surface Mount TEC Controller

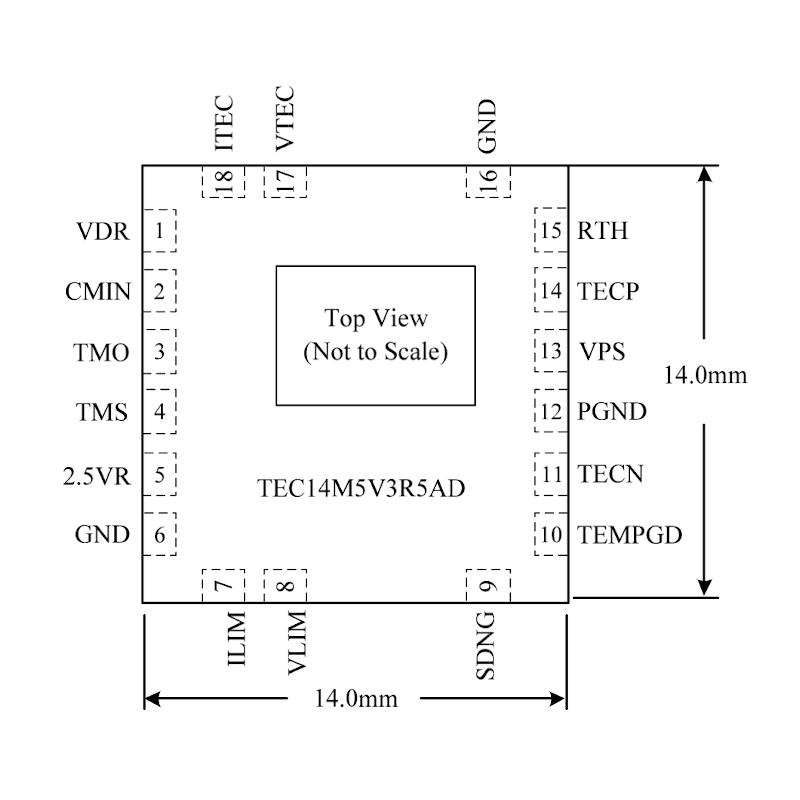

  • OEM TEC Controller Pinout

$31.90
sku / item#: RLS/TEC14M5V3R5AS
ships: 2 Weeks

Key Features
  • 17.5W Board-Level TEC Controller
  • 0.001ºC Temperature Stability
  • Super-Compact, Fully Molded
  • Programmable TEC Current and Voltage Limits
  • Customizable Temperature Control Range
  • Offered by Analog Technologies, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/TEC14M5V3R5AS
PRICE $31.90
Electrical Specifications
  • Max Output Voltage: 5 V
  • Max Output Current: 3.5 A
Operational Specifications
  • Temp. Stability: 0.001ºC
  • Default Temp. Range: 15ºC – 35ºC
  • Input Voltage Range: 4.75 V – 5.25 V
  • PWM Frequency: 2 MHz
  • Operating Case Temperature: -40°C – 85°C
Mechanical Specifications
  • Dimensions: 14.0 mm × 14.0 mm × 2.2 mm
  • Package Style: SMT
  • 100% Lead (Pb)-Free and RoHS Compliant
  • Refer to Datasheet for Complete Specifications

Product Overview:

Board-Level Micro TEC Controller

The TEC14M5V3R5AS is an ultra compact, low profile, and fully molded controller designed for driving TECs (Thermo-Electric Coolers) with high electrical and mechanical reliability. Temperature stability of up to 0.0002ºC can be achieved.

In order to maximize electrical and thermal efficiency, the output voltage of the driver is approximately 0.2V less than the input voltage. This feature allows the designer to tailor the system to the exact TEC specifications, and can deliver operational efficiency of up to 90%.

Maximum Versatility in Real-World Environments

The default temperature sensor and control range is 15ºC to 35ºC, but can be modified by selecting the external sensor resistor network values. The design engineer can custom-tailor the temperature detection range for maximum stability and sensitivity. Separate analog inputs on the chip control the TEC current and voltage limits, in order to protect the TEC in use.

A special input-output status pin serves two functions: if the pin is actively pulled low, the controller is shut down; if the voltage output is read, it provides an indication of whether the actual TEC temperature is below- or equal to the setpoint temperature.

Super-Compact Board-Mounted Chip

The TEC controller is super compact, at 14.0mm square and 2.2mm thick. The controller us fully molded for thermal and mechanical stability and durability. A thermal pad on the bottom of the chip can be thermally shorted to the PCB for additional heat-sink capacity.
