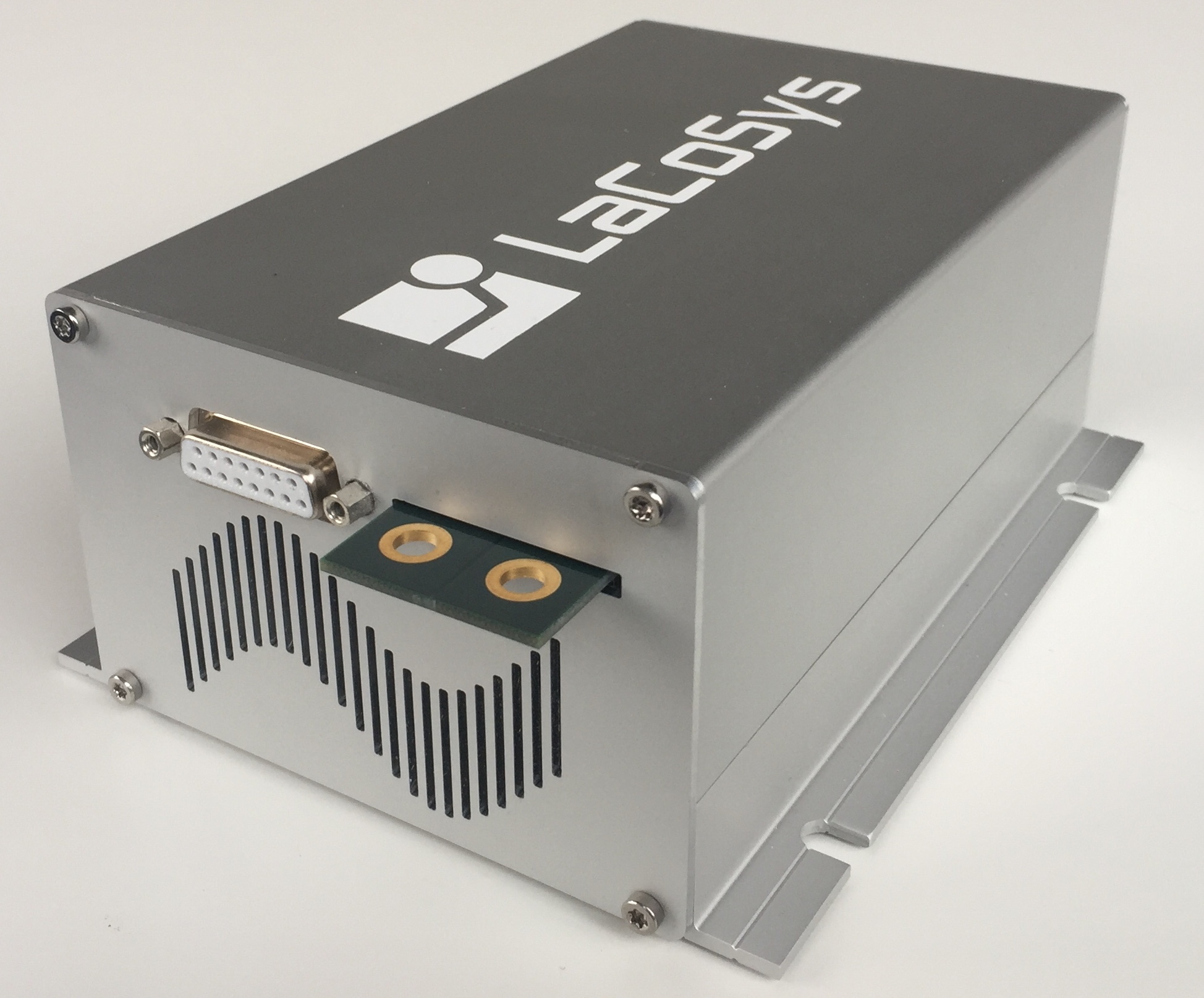

15 Amps, 600 W OEM Module Laser Diode Driver S-Series

  • 15A, 600W, OEM Laser Diode Driver Module

Request Quote
sku / item#: S600-15 / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • CW / QCW Laser Diode Driver
  • Output Current up to 15 Amps at 600 Watts
  • Compliance Voltage Output 18V to 58V
  • Overload Protection
  • Temperature-Controlled Cooling Fan
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL S600-15 / LASER-DRIVER
PRICE Request Price
Electrical SPECIFICATIONS
  • Output Current: up to 15 A
  • Nominal Output Voltage: 48 V
  • Available Output Voltage: 15 V - 58 V
  • Accuracy: <0.5%
  • Output Stability: < 0.1%
  • Current Ripple: < 0.5% @ full load (BW=20Hz)
  • Trigger Rise/Fall Time: 250 μs
Laser Diode Protection Circuits
  • Over-Current Limit
  • Over-Temperature Limit
  • Over-Voltage Limit
GENERAL SPECIFICATIONS
  • Input Voltage: 90 ... 265 VAC (Derating < 120 VAC)
  • Maximum Power Consumption: 690 W
  • Power Output: 600 W
  • Dimensions (mm): 185 x 130 x 70 (Length x Width x Height)
  • Refer to PDF Datasheet for Additional Specifications
USER INTERFACE
  • These units can be ordered with either an analog or digital control user interface; please specify at the time of order; please contact us if you have questions or need more details

Product Overview:

15 Amp, 58 Volt High Compliance Voltage Laser Diode Driver Overview

These high compliance voltage drivers for laser diodes have been developed for the safe operation of series connected lasers and multiple emitter packaged devices. They offer high voltage levels for industrial environments. The analog or digital interface allows them to be used as stable laser power supply in machines and complex laser systems. The compact housing is easy to cool and easy to mount. Microprocessor controlled signal processing and safety shutdowns ensure reliable operation in the field. They can be ordered with a galvanic isolated analog or digital interface and switched in QCW mode by an pulse control pin.
