150 Watt TEC Controller Board; Accurate & Affordable; 10 kΩ NTC Thermistor Sensor Input

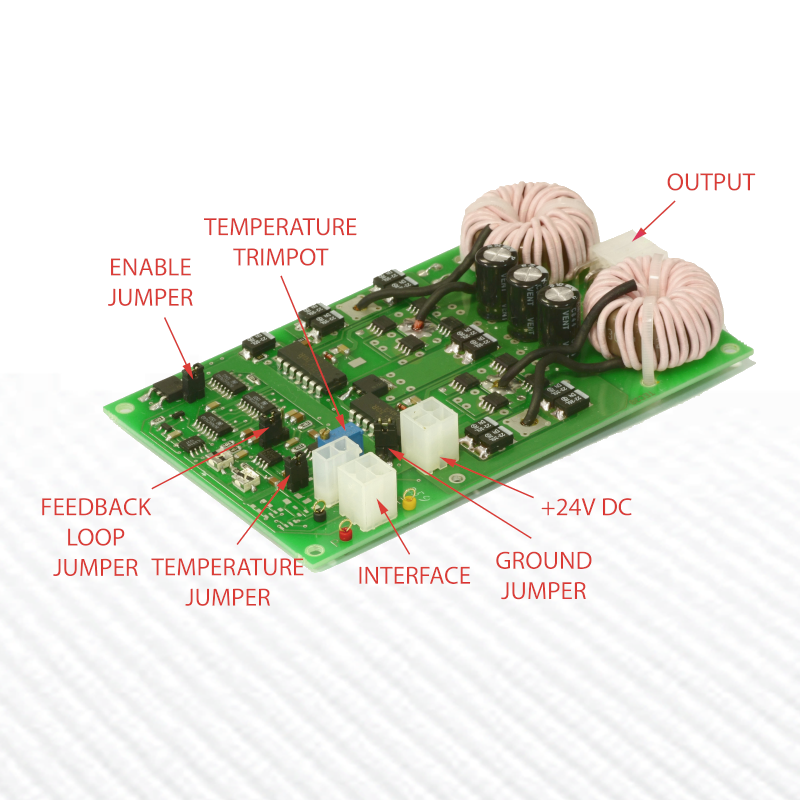

  • 150 Watt OEM Thermoelectric Controller

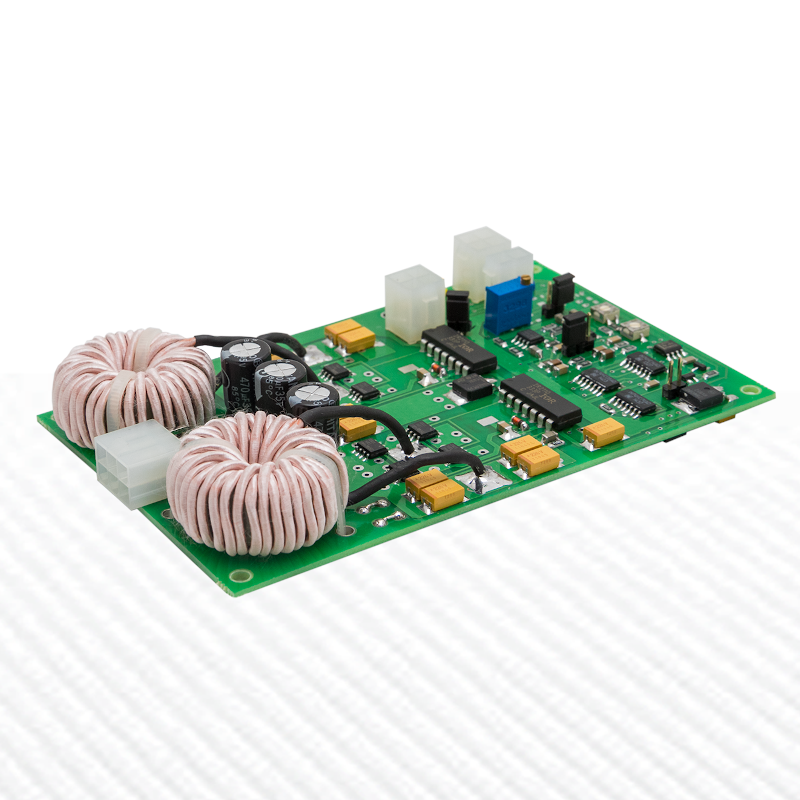

  • 150W OEM TEC Board Controls

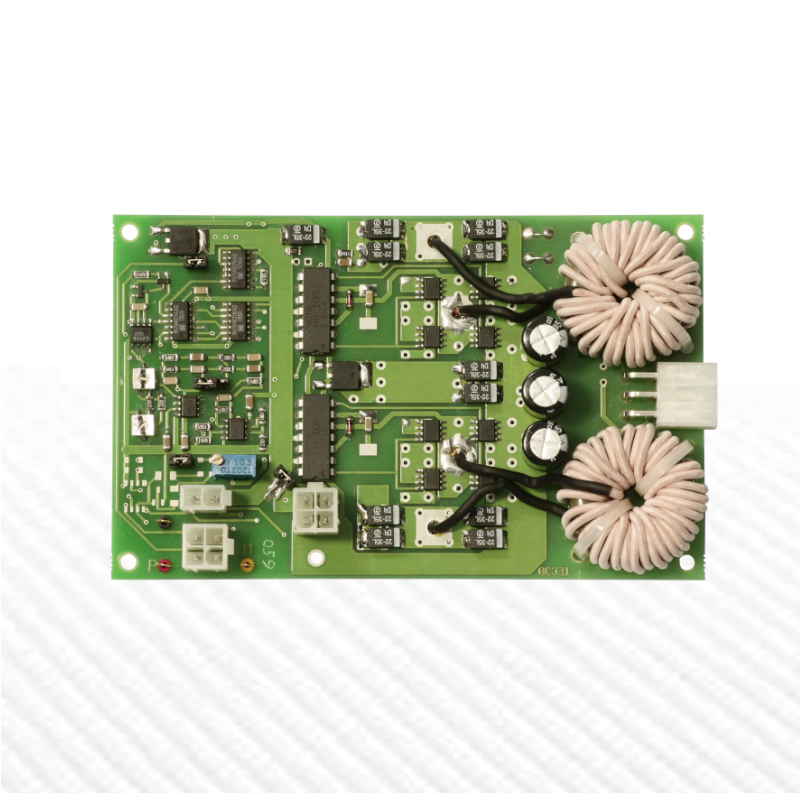

  • Compact OEM TEC Controller

Request Quote
sku / item#: RLS/TEC-150W-OEM
ships: Request a Quote for Current Ship Date

Key Features
  • Simple to Set-Up and Operate TEC Controller for Laser Diodes
  • Output up to 10 Amps and 20 Volts
  • Single Power Supply Input
  • Compact, Space Efficient Design
  • Offered by OEM Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/TEC-150W-OEM
PRICE Request Price
TEC Output Specifications
  • Maximum Output Power: 150 Watts
  • Maximum Output Current: 10 Amps
  • Maximum Output Voltage: 20 Volts
  • Output Temperature Control Range: 10ºC to 40ºC
  • Temperature Accuracy: 0.1ºC
Control Mode Specifications
  • Temperature Sensor Input: 10 kΩ NTC Thermistor
  • Stand-Alone Mode: On-Board Set Point Trimpot
  • Remote Mode: Set Point 0 - 4 V, Scaled to Correspond to 10ºC - 40ºC
  • Monitor Output: 0 - 4 V, Scaled to Correspond to 10ºC - 40ºC
  • Output Enable: 5 VDC Remote Enable Signal, or On-Board Jumper
  • Feedback Loop Modes: On Board Jumper to Set Two Feedback Loop Sensitivity Levels
General Specifications
  • Power Supply Voltage: 24 VDC
  • Cooling: Forced Air Cooling Required for Operation > 7 Amps
  • Size: 130 mm x 80 mm x 30 mm

Product Overview:

150 Watt OEM Board Temperature Controller

The TEC-150W-OEM is a compact OEM-format bipolar thermoelectric module controller. The controller is designed to regulate the temperature of objects using a Peltier-type thermoelectric cooler, and stabilizing the temperature at the setpoint level.

Two Control Modes for Application Flexibility

The TEC controller has two control modes: remotely using analog signals, or manually using the on-board jumpers and trimpots to allow for stand-alone operation:
  • Remote mode – uses analog input signals for the temperature setpoint and output enable.
  • Stand-Alone mode – the jumpers are set so that the controller uses the on-board trim pots for the temperature setpoint, and the output is enabled when power is applied to the controller board.

    • The controller provides an analog voltage output 0 - 4 V representing the temperature measured by the sensor through the control range of 10ºC - 40ºC. Two feedback loop sensitivity levels are available, set by a jumper on the board.
