1500mA OEM Laser Diode Driver
- Temperature Compensated for Stability
- Overheat Protection Circuit

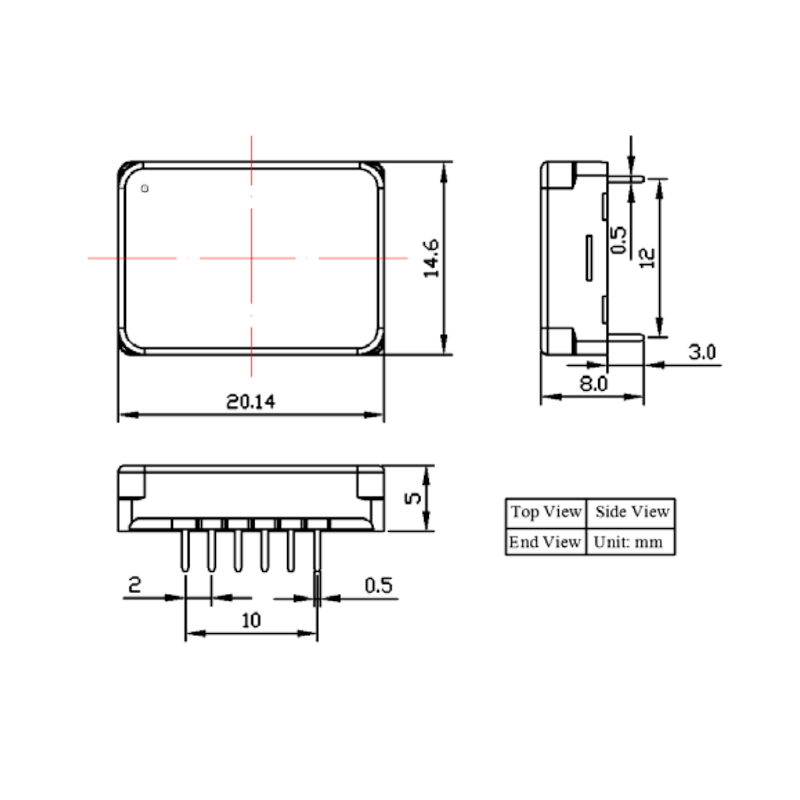

  • OEM Laser Driver Dimensions 1.5A

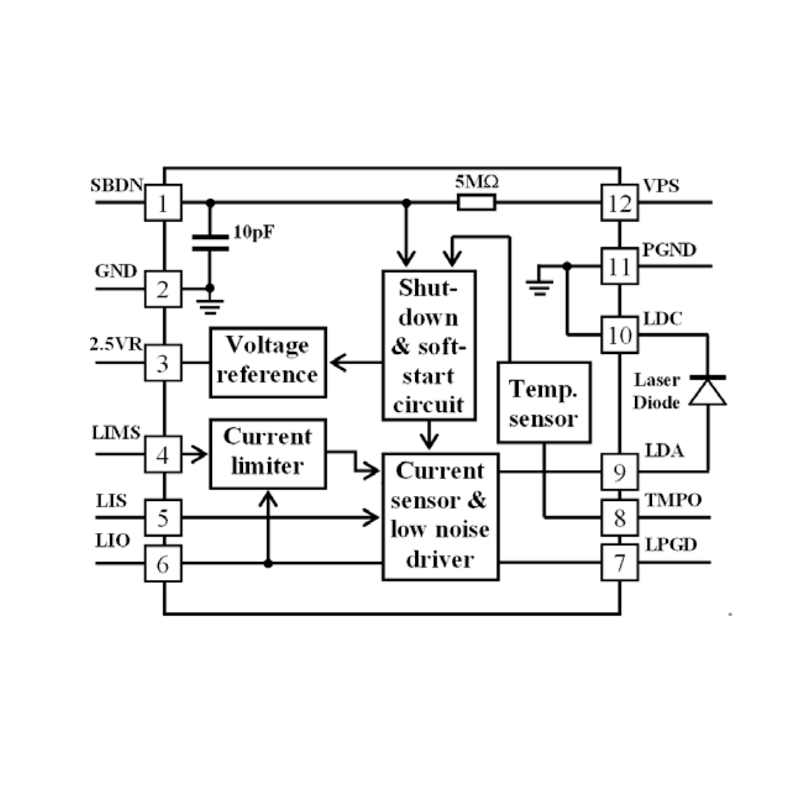

  • 1500mA Driver Block Diagram

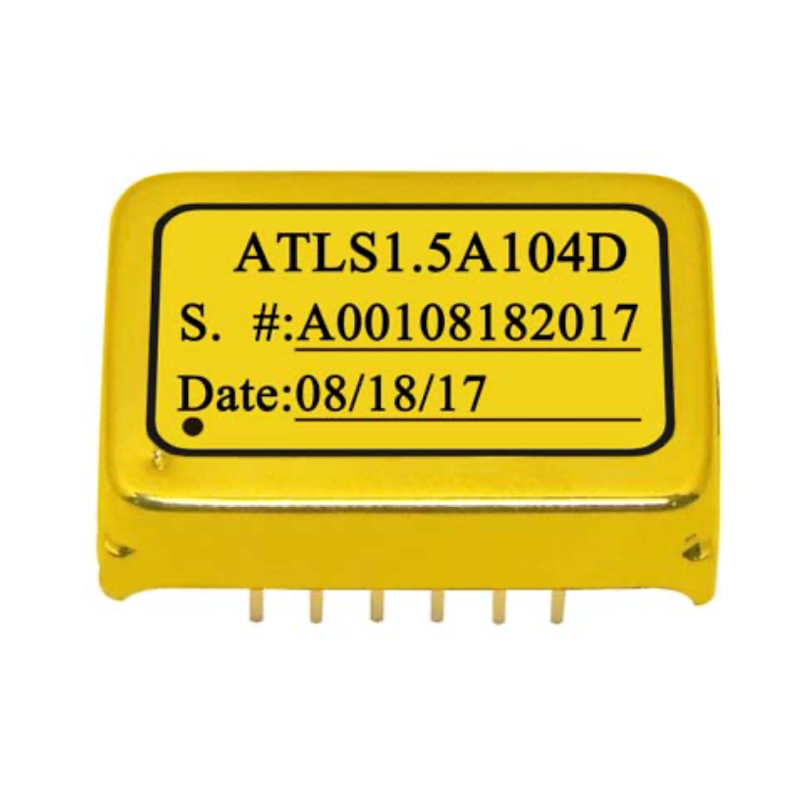

  • 1.5A OEM Laser Driver Package

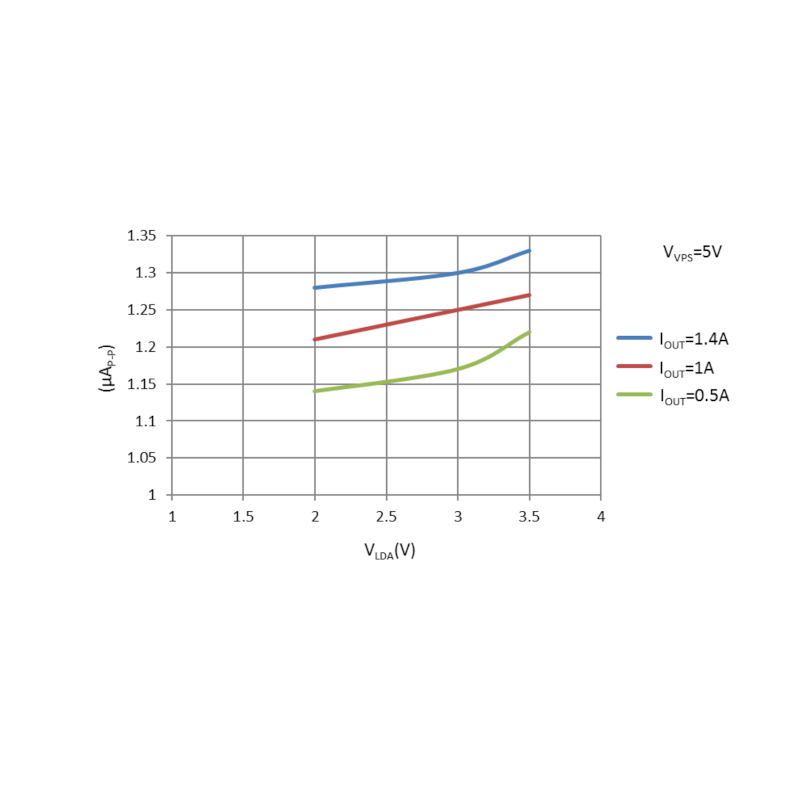

  • 1500mA OEM Driver Noise Performance

$79.00
sku / item#: RLS/ATLS1.5A104D
ships: Request a Quote for Current Ship Date

Key Features
  • 1500mA, 5V Board-Level OEM Driver
  • Compact, EMI-Shielded Case
  • Over-Temperature Protection Circuit
  • Programmable Current Limit
  • Offered by Analog Technologies, a Laser Lab Source Marketplace Seller
  • Please contact Analog Technologies directly for further assistance
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/ATLS1.5A104D
PRICE $79.00
Electrical Specifications
  • Maximum Output Current: 1500 mA
  • Ultra-Low Noise (RMS): <0.95 μARMS @ 0.1Hz ~ 10Hz)
  • High Current Stability: < ±0.5 mA (T = -30ºC – 60ºC)
Operational Specifications
  • Input Voltage Range: 3.1 V – 5.5 V
  • Control Accuracy: ± 0.1%
  • Operating Case Temperature: -40°C – 85°C
Mechanical Specifications
  • Dimensions: 20.14 mm × 14.6 mm × 8.0 mm
  • Package Style: DIP (SMT also Available)
  • 100% Lead (Pb)-Free and RoHS Compliant
  • Refer to Datasheet for Complete Specifications

Product Overview:

High Voltage, Compact, OEM Laser Diode Driver Overview

The ATLS1.5A104D is a through-hole PCB-mounted electronic module designed for driving diode lasers with up to 1500mA low noise current.

In order to maximize electrical and thermal efficiency, the output voltage of the driver is 2V less than the input voltage. This feature allows the designer to tailor the system to the exact laser specifications, and maximizes overall system efficiency.

Maximum Stability in Real-World Environments

The controller has a temperature compensation network so that the output current remains stable even as the controller temperature rises. In case the controller temperature exceeds the preset limit of 120°C, the controller will shut down by itself to prevent the controller from being damaged by the excessive heat.

Design and Application Flexibility

The output current of the ATLS1.5MA104D can be set by an input voltage linearly or modulated by an external large signal of up to 1.75MHz in bandwidth, resulting in a minimum 200nS rise and fall time (large signal) at the output current.

Evaluation Board Option

An evaluation board is available to speed R&D and prototype development activities. Inquire for a quotation for part number ATLS1A103DEV1.0
