Laboratory TEC Controller; Affordable & Accurate Thermoelectric Temperature Controller

  • TEC Controller Model TEC-150W-BT

Request Quote
sku / item#: RLS/TEC-150W-BT
ships: Request a Quote for Current Ship Date

Key Features
  • Easy to Use; Works with 10 kΩ Thermistor Temperature Sensors
  • Output Power to Peltier Cooler up to 10 Amps, 20 Volts
  • Universal Power Supply Input
  • Front-Panel Control and RS-232
  • Offered by OEM Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/TEC-150W-BT
PRICE Request Price
TEC Output Specifications
  • Maximum Output Power: 150 Watts
  • Maximum Output Current: 10 Amps
  • Maximum Output Voltage: 20 Volts
  • Output Temperature Control Range: 10ºC to 40ºC
  • Temperature Control Accuracy: 0.1ºC
Control Modes
  • Temperature Sensor Input: 10 kΩ NTC Thermistor
  • Front Panel Control
  • RS-232 Interface for Remote Control
General Specifications
  • Power Supply Voltage: 110-230 V AC, 50/60 Hz; 2 A (max)
  • Cooling: Forced Air Cooling
  • Size: 225 mm x 200 mm x 60 mm
  • Weight: 1.5 kg

Product Overview:

150 Watt Affordable Laboratory Temperature Controller

The TEC-150W-BT is a bipolar TEC controller designed to work with 10K thermistor temperature sensors. These TEC controllers are designed to set and control the temperature of laser diodes using a Peltier type thermoelectric cooling element. This affordable, accurate temperature controller is simple to set up and operate and is designed for laboratory environments.

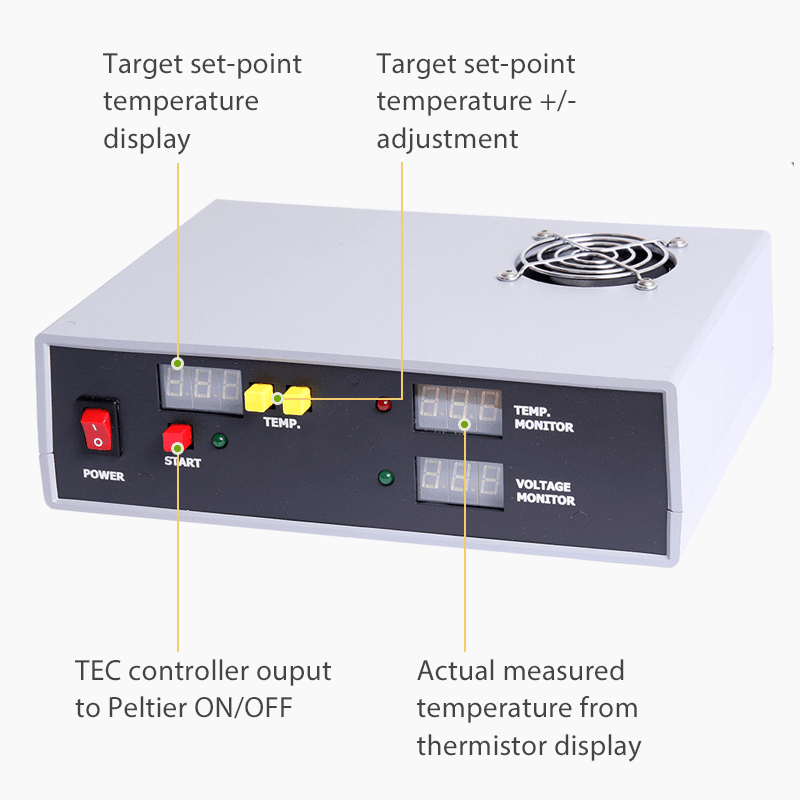

User Control by Front Panel or RS232 Interface

The TEC controller has two control modes: remotely using the RS-232 interface or manually using the front panel.
  • Remote mode – uses a simple RS-232 command set for setpoint adjust and output enable.
  • Front panel mode – the front panel is as easy to use and has simple controls for temperature set-point adjustment, output enable and actual-temperature display.
