Home  >  Laser Diode Drivers  >  LaCoSys | Laser Control Systems GmbH  >  S600-30 / LASER-DRIVER

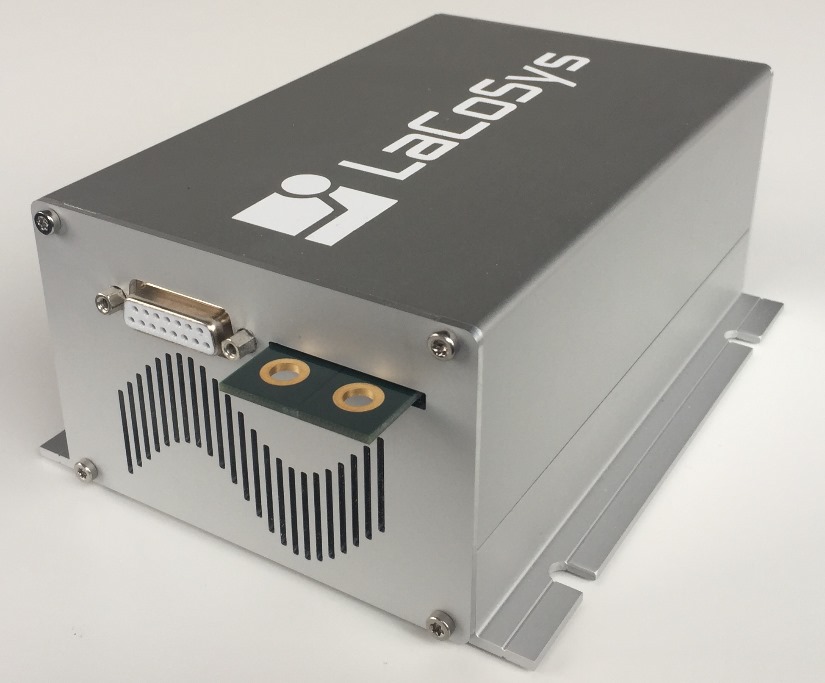

30 Amp, 600W OEM Laser Diode Driver, Compliance Voltage up to 30 Volts

  • 30A, 600W, Laser Diode Controller OEM Module

Request Quote
sku / item#: S600-30 / LASER-DRIVER
ships: Request a Quote for Current Ship Date

Key Features
  • 600 Watts of Output Power; CW and QCW Modes
  • 30 Amps with Compliance Voltage up to 30 Volts
  • Configurable Current and Voltage Versions
  • Analog or Digital Interface; Analog Galvanic Isolated Interface
  • Over-Load Protecion
  • Air-Cooled with Integrated Temp. Sensor Controlled Fan
  • Offered by LaCoSys, GmBH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL S600-30 / LASER-DRIVER
PRICE Request Price
Key Specifications
  • Current Output Range: 0 to 30 Amps
  • Compliance Voltage (max): 30 Volts
  • Customer Specified Available Compliance Voltage: 9V to 30V
    (specify at time of order)
  • Set-point Accuracy: 0.5%
  • Current Stability: < 0.1%
  • Current Ripple: < 0.5% @ full load (BW=20Hz)
Laser Diode Protection Circuits
  • Over-Current Limit
  • Over-Voltage Limit
  • Over-Temperature Limit
Input Power and Dimensions
  • Input Power: Universal AC Input 90 ~ 230 VAC
  • Dimensions (mm): 185 x 130 x 70
User Interface
  • These units can be ordered with either an analog or digital control user interface; please specify at the time of order; please contact us if you have questions or need more details

Product Overview:

30 Amp, 30 V High Power Laser Diode Driver Module Overview

The SmartPower series laser diode drivers have been developed for the safe operation of semiconductor diode lasers at high power Levels. These advance current sources are used in both laboratory and industrial product environments. The analog or digital interface allows the user full control over the laser diode in machine applications or in complex laser systems. The compact housing is easy to cool and easy to mount. Microprocessor controlled signal processing and safety shutdowns ensure reliable operation. They can be ordered with a galvanic isolated analog or digital interface and switched into or out of QCW mode by a pulse control pin.
