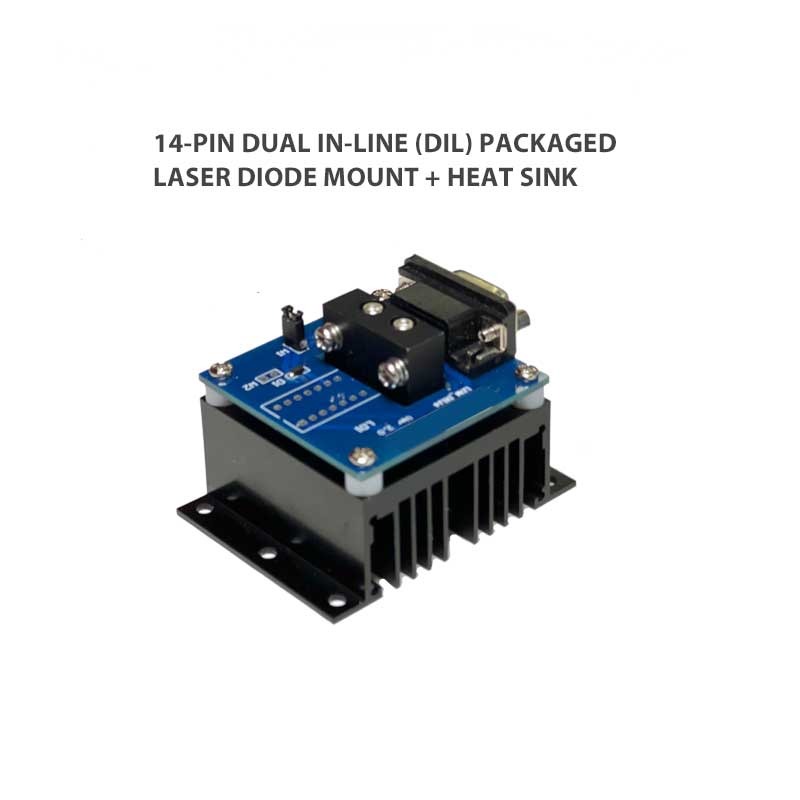

14-Pin Dual In-Line (DIL) Packaged Laser Diode Mount + Heat Sink

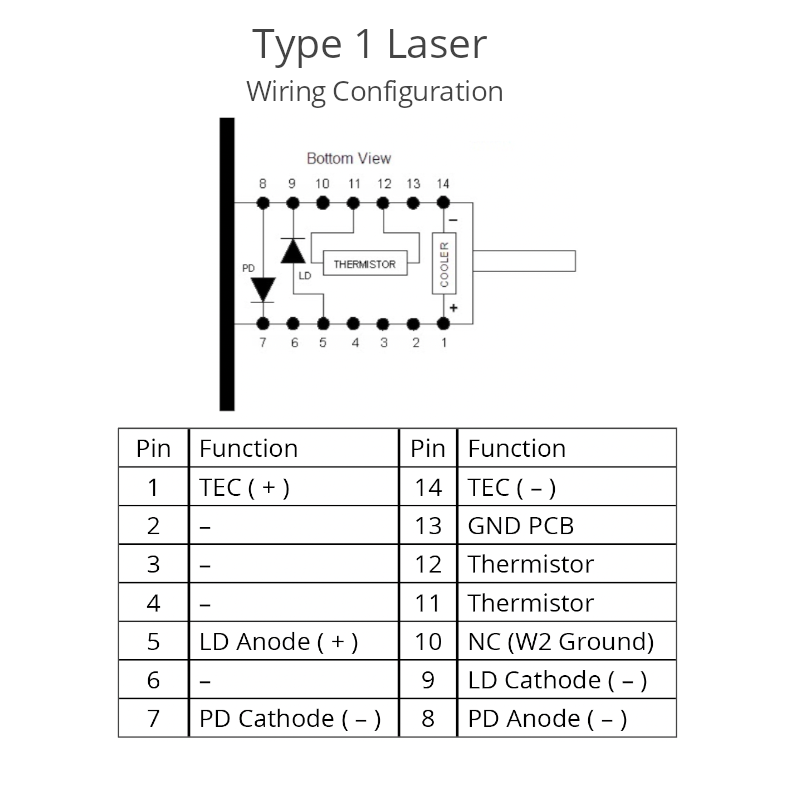

  • dil laser schematic for laser diode mount

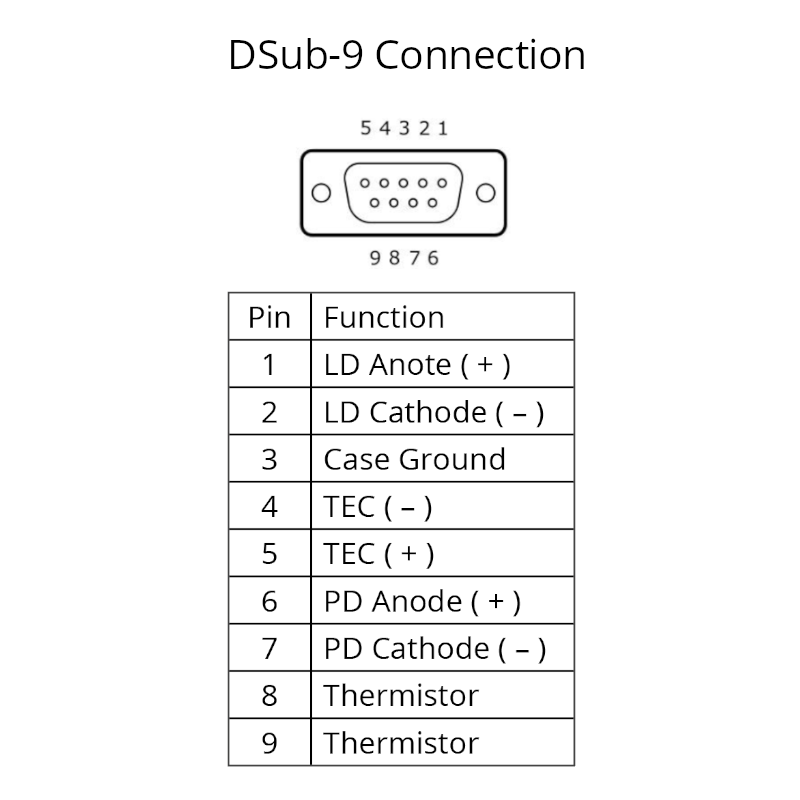

  • wiring diagram for DIL laser diode heat sink

$169.00
sku / item#: RLS / LDM-DIL-T1
ships: In-Stock (USA) -- Quantity Available: 2

Key Features
  • DIL Packaged Laser Mount and Heat Sink
  • Type-1 Laser Package Pin Configuration
  • Includes Shorting Jumper for ESD Protection
  • Passive Air-Cooled Heat Sink
  • Offered by ELOP Tech, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / LDM-DIL-T1
PRICE $169.00
Specifications
  • Input Connector: 9-Pin D-Sub (Female)
  • Laser Wiring Configuration: Type-1 (See Data Sheet)
  • Polarity of LD: AG / CG
  • Polarity of PD: Floating
  • Maximum TEC Current: 3 Amps
  • Dimensions: 66 mm x 50 mm x 43 mm
  • Mounting Hole Dimensions: 4x 3.4mm
  • Mounting Hole Pattern: 56 mm x 42 mm

Product Overview:

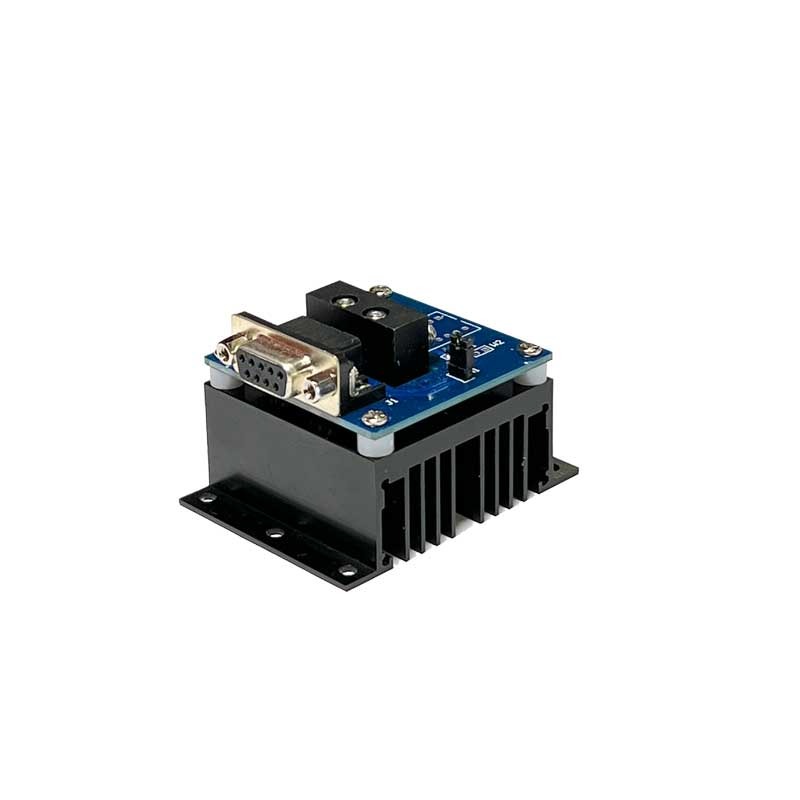

DIL Package Laser Diode Mount

This laser diode mount provides an affordable, easy to use, and versatile solution for 14-pin DIL-packaged laser diodes. A shorting jumper is included on the circuit board to provide ESD protection to the laser diode. The jumper is installed while the laser diode is being installed, while the laser diode is disconnected from the driver, and during connection to the laser driver. This DIL package laser diode mount is compact, and provides effective dissipation of waste heat from the laser package. Additional heat dissipation capacity is gained by blowing air across the heatsink fins.
