12 Amp, 24 Volt Laser Diode Driver with 216 Watt TEC Controller

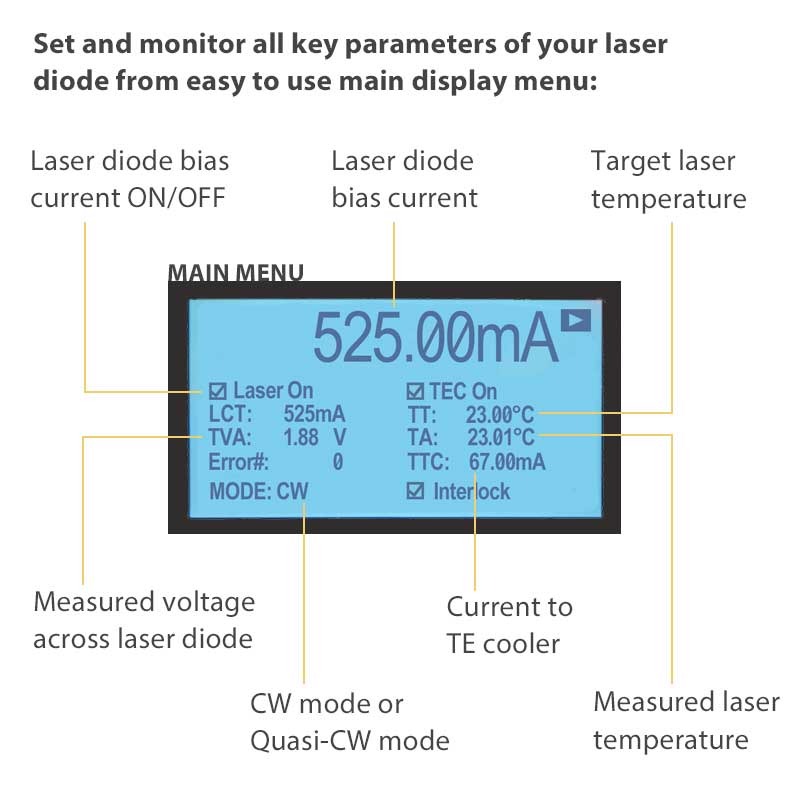

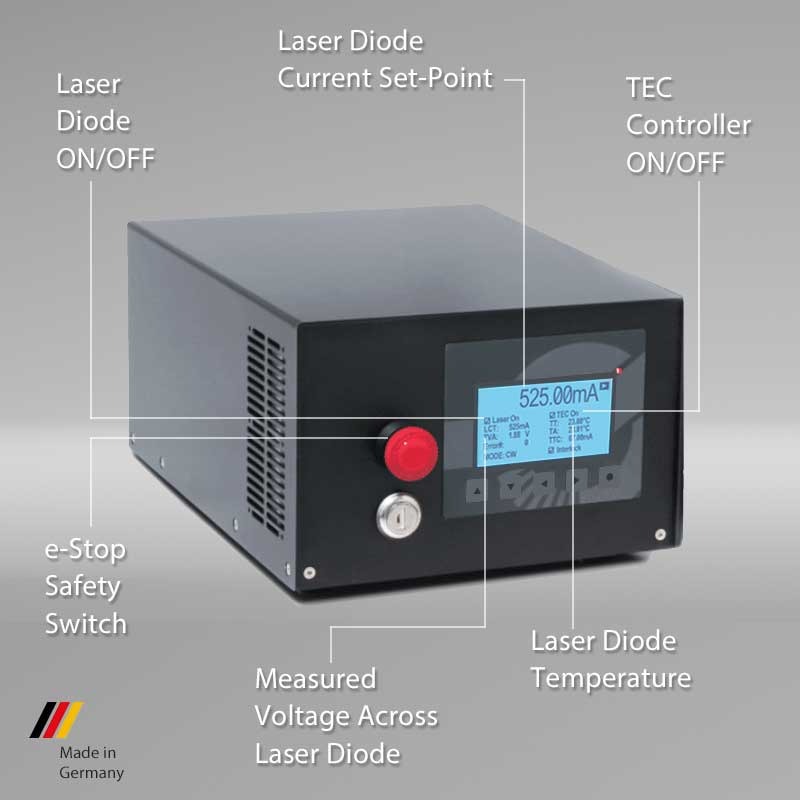

  • laser diode driver and TEC controller front panel
  • Driver and TEC-Controller for Laser Diodes LDC
  • Single Emitter Laser Diode Controller Pinout

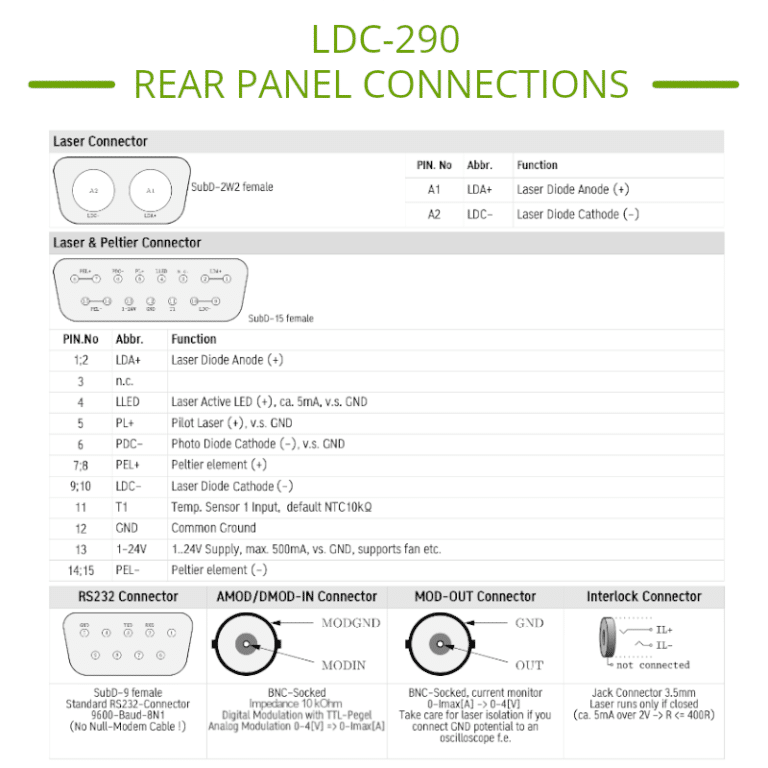

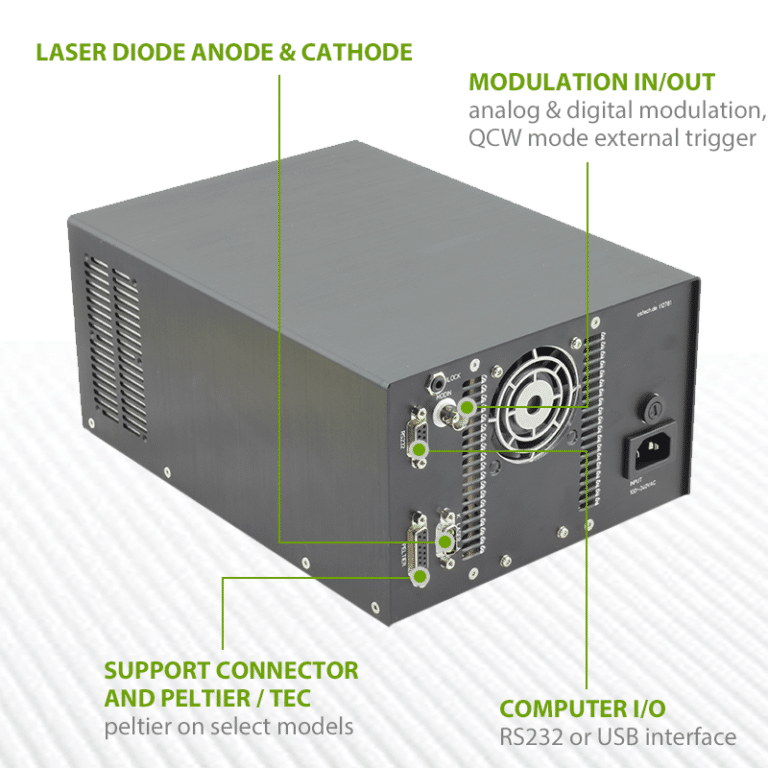

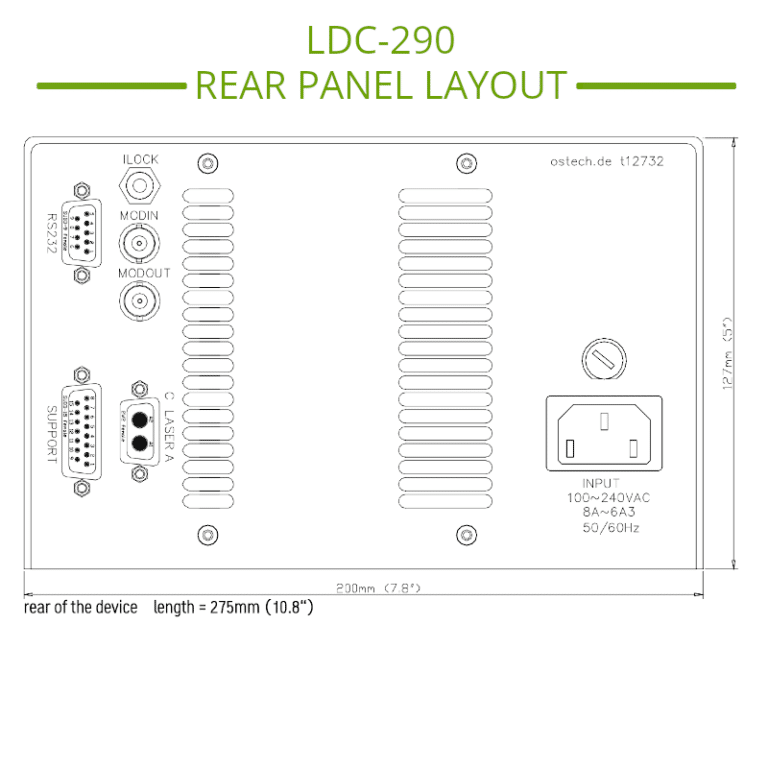

  • 12 Amp Laser Diode Controller Connectors
  • 12 Amp Laser Diode Controller with TEC
  • labview driver software

$4109.00
sku / item#: LDC-290
ships: Request a Quote for Current Ship Date

Key Features
  • Enhanced Protection Features Designed Specifically for High Voltage, Multi-Emitter Laser Diodes and Series Connected Lasers
  • Current Output up to 12 Amps, Compliance Voltage up to 24 Volts
  • Integrated High Power Laser Diode TEC / Temperature Controller
  • Programmable Current and Temperature Limits
  • Previous Part Number: LDC-636HV
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).

This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).

This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and a
2W2 d-sub connector (female) on the device end (kab-297).

This cable is also available terminated on the controller
end with a 2W2 d-sub connector (male) and unterminated
on the device-end (kab-286).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDC-290
PRICE $4109.00
LASER DIODE CURRENT and voltage OUTPUT
  • Output Current Range: 0.00 - 12.00 Amps
  • Compliance Voltage Range: 0.00 - 24.00 Volts
  • Current Noise & Ripple (rms): < ± 0.5% of Full Scale Current
  • Current Setpoint Resolution: 3 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 200 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds; User Adjustable
  • User-Programmable Current Limit
  • Programmable Temperature Limits (Upper and Lower)
  • Open Circuit Detection; Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Rear Panel Keylock Switch and Safety Interlock
  • Front Panel e-Stop Button Emergency Shut-Down
TEC TEMPERATURE CONTROLLER
  • TEC Output Power Total: 216 Watts
  • TEC Output Current Range (bipolar): ± 12.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 18.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
QCW MODE and MODULATION
  • User Adjustable Pulse Width Range: 25 μs to CW
  • Rear Panel Modulation Input: Digital or Analog
  • QCW Trigger: Internal or External
  • QCW Pulse Modes: Continuous, Single Pulses, Bursts
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
Auxiliary Functions
  • Temperature Sensor Input: 10kΩ NTC Thermistor
  • External Fan Control Circuit, 1 - 24V, 500mA (max)
  • Pilot Laser Anode, vs. Ground: (5V, 150 mA)
  • Laser-On External LED Indicator: 5mA Output
USER INTERFACE and Connectors
  • Front Panel: Alphanumeric LCD
  • USB Optional: $95.00 (Option SVC-USB)
  • LabView Drivers Included
  • Laser and Peltier Connector: SubD-15, Female
  • Laser Connector: SubD-2W2, Female
  • RS232 Connector: SubD-9, Female
  • Safety Interlock: Jack Connector, Stereo 3.5mm
DIMENSIONS AND power INPUT
  • Power Input: Universal 100V ~ 240 VAC, 50/60 Hz
  • Dimensions: 127 mm (H) x 200 mm (W) x 275 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable
  • kab-286 Unterminated Power Cable -or-
    kab-297 Terminated Power Cable
  • acc-417 USB-RS232 Converter

Product Overview:

LDC-290 High Power Laser Diode Driver Overview

The LDC-290 laser diode driver is designed with high compliance voltage to precisely and safely bias multi-single emitter lasers from companies such as nLight, Lumentum and II-IV. The LDC-290 can also be used to drive multi-emitter devices wired for series operation.

Modulation, Internal Function Generator, and QCW Pulse Modes

In addition to CW (continuous wave) mode of operation, the LDC-290 laser diode controller offers flexible modulation capabilities and a QCW mode. The rear panel of the controller has a BNC input for an analog or TTL digital modulation, DC up to 50 kHz, input with a 10kΩ input impedance. These controllers have an internal function generator which can be used to drive quasi-CW pulses in continuous, single, and burst-mode. In QCW mode, the user can also set 25μs-to-CW pulses to trigger from a remote TTL signal source.

Laser Diode Protection Features

These units offer the highest level laser diode protection available to ensure that your device under test is protected at all times. Soft-start current, current and temperature limits, and a fast shut-down sequence keep your device protected at all times. Additionally, transient filters and AC line filters protect the laser against brown-out or black-out power conditions. A back-panel safety interlock connector ensures that the laser diode current is not switched on until the user has determined it is safe to do so. A 15-pin D-sub connector is included for ancillary control functions, including external photodiode measurement, Laser-On Indicator LED, temperature sensor input, and an external cooling fan control.
