120A CW - 240A QCW Laser Diode Driver
- Pump Laser Diode Array Current Source
- 20V Compliance Voltage

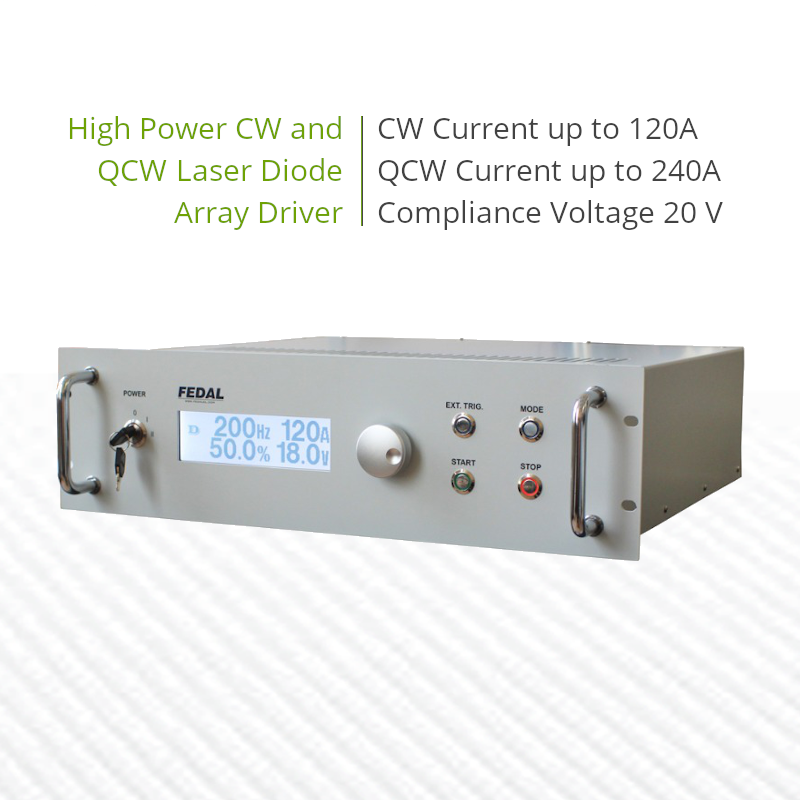

  • 120 Amp CW Laser Diode Driver, 240A QCW, High Power

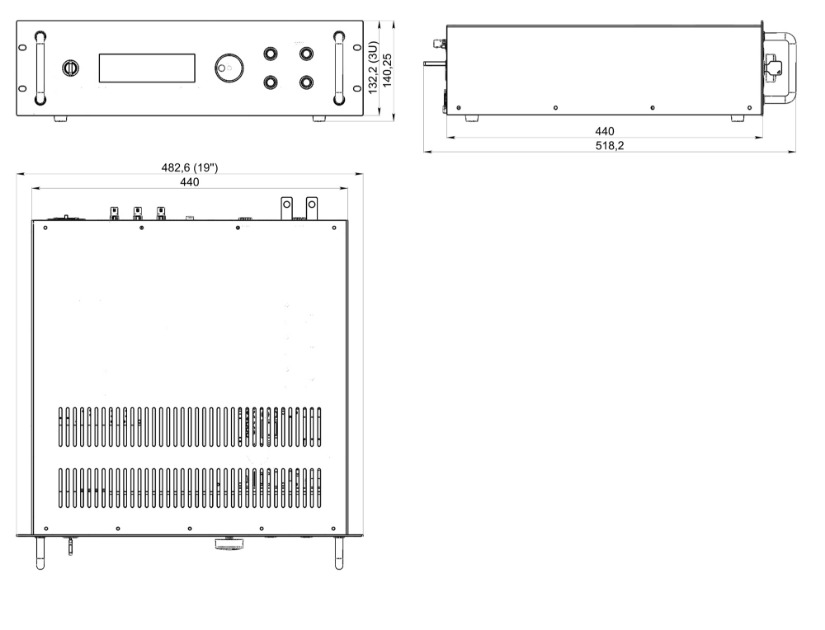

  • high power diode driver dimensions
  • Multiple Channel High Power QCW Laser Driver

Request Quote
sku / item#: RLS/SF530-120/20
ships: *** This product is currently unavailable **

Key Features
  • CW Output Current up to 1 - 120 A
  • Pulsed Output Current up to 1 - 240 A
  • Laser Diode Compliance Voltage up to 20 V
  • Variable Pulse Width: 50 µs to 1,000 µs
  • Pulse Rise Time < 60 µs
  • Trigger In / Trigger Out
  • Rack Mountable, 3U High
  • RS232 Communications Interface
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/SF530-120/20
PRICE Request Price
- Pulse (QCW) mode -
  • Output Current: 1 - 240А
  • Output Voltage: 0 - 20V
  • Pulse Rate: 1 - 500 Hz
  • Pulse Duration: 50 - 1000 μs
- CW mode -
  • Output Current: 1 - 120А
  • Output Voltage: 0 - 20V
- General characteristics -
  • Average Output Power: 2.4kW
  • Cooling: Air Cooled
  • Power Input: Single Phase 220 VAC, 50Hz
  • Dimensions: 440 * 132 * 440 mm; 3U
  • Weight: 20kg
  • Interface: RS232 (RS485 Optional)
Additional information
  • Values Are Limited by Average Power:
    F * V * I * τ ≤ P (pulse mode);
    V * I ≤ P (CW mode)
  • With a Length of Laser Diode Power Wire is Not More Than 2m

Product Overview:

High Power CW/QCW Laser Diode Driver Overview

This high power CW / QCW laser diode driver is designed to power the diode arrays for pumping high-power solid-state or fiber lasers. It is optimized for use as part of laboratory, educational, experimental, and industrial applications. It has current limit, duty cycle limit, and safety interlocks to help protect the laser diodes and the user.

The operating parameters are adjusted and controlled via front panel, with an LCD display. The controller comes standard with an RS232 interface for connection to a control computer, and RS485 is available optionally.

Options to Increase Functionality and Versatility

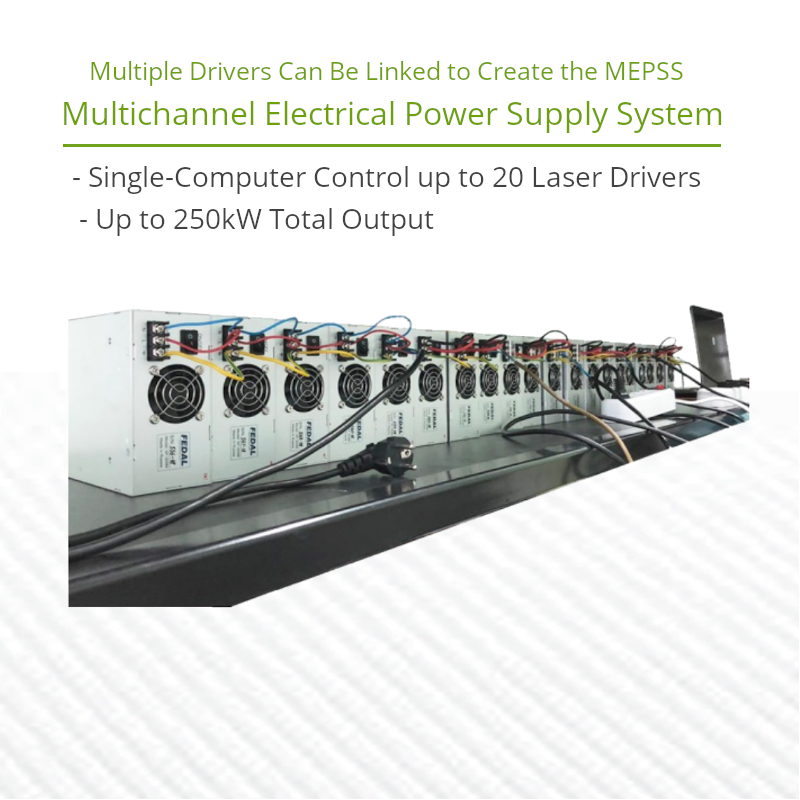

This high power CW/QCW laser diode driver can be assembled into the Multichannel Electrical Power Supply System (MEPSS), allowing up to 20 drivers to be controlled by a single operating computer. The MEPSS is meant for applications such as research into laser-matter interaction, inertial confinement fusion, laser diode array testing, and other cases where multiple high power lasers are controlled simultaneously.

The laser diode driver can be equipped with a high power temperature controller to drive TECs for laser temperature stabilization; inquire for details and options.

Additionally, the flexible internal architecture of the driver means it can be modified according to customer requirements for a specific load.
