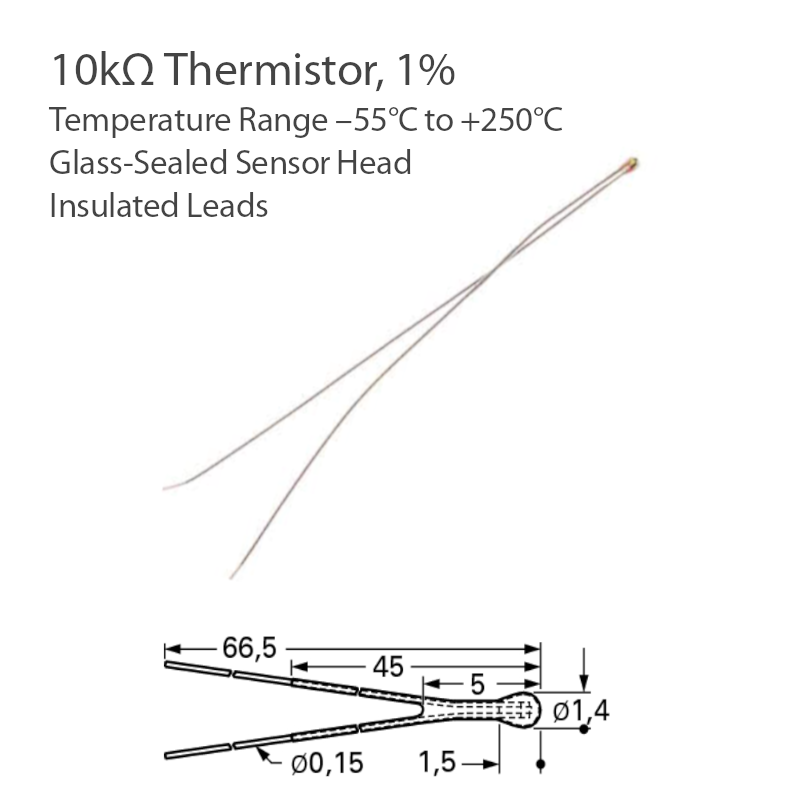

10kΩ NTC Thermistor, –55°C to +250°C, Insulated Leads

  • 10k high resistance ntc thermistor

Request Quote
sku / item#: sen-611
ships: 14 to 18 days

Key Features
  • Operating Temperature: –55°C to +250°C
  • NTC Thermistor in a Glass Head, with Insulated Leads
Product Warranty
All products purchased from Laser Lab Source
are sold with a full one-year warranty.
See terms & conditions for full details.
The Laser Lab Source group websites include:
  • LaserDiodeSource.com
  • LaserLabSource.com
  • LaserDiodeControl.com
Shipping Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL sen-611
PRICE Request Price
General Specifications
  • Operating Temperature: –55°C to +250°C
  • Rated Temperature: +25ºC
  • Power at 25ºC: max 18mW
  • Resistance Tolerance: ±1%
  • Thermal Conductivity (Air): approx 0.5 mK/W
  • Cooling Time Constant (Air): approx 4 s
  • Beta Value: at 25/100ºC
  • Insulation Resistance: min 100MΩ
Thermistor Constants for
OsTech Temperature Controllers
  • xTSC0-273.15
  • xTSC11.1333e-3
  • xTSC22.3321e-4
  • xTSC39.2801e-8
  • xTSM1

Product Overview:

Sealed Glass Head NTC Thermistor

This NTC thermistor is molded into a glass head for high stability over a wide temperature range. The lead wires are insulated.
