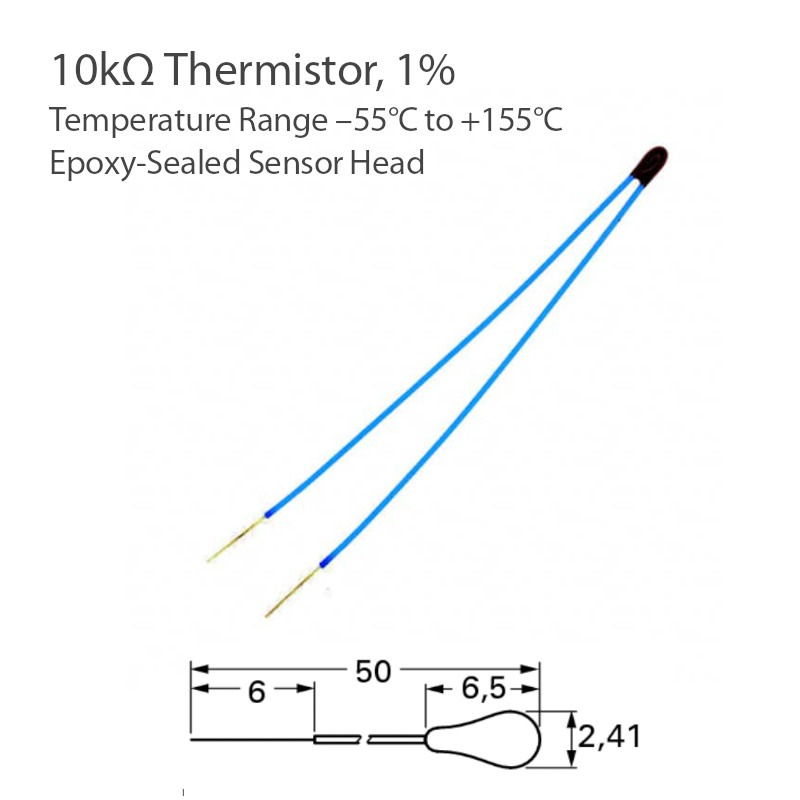

10kΩ NTC Thermistor, –55°C to +155°C, Epoxy Head with Insulated Leads

  • 10k ohm ntc thermistor epoxy head

Request Quote
sku / item#: sen-237
ships: 14 to 18 days

Key Features
  • Operating Temperature: –55°C to +155°C
  • NTC Thermistor in a Molded Epoxy Head with Insulated Leads
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL sen-237
PRICE Request Price
General Specifications
  • Operating Temperature: –55°C to +155°C
  • Rated Temperature: +25ºC
  • Power at 25ºC: max 18mW
  • Resistance Tolerance: ±1%
  • Thermal Conductivity (Air): approx 1.5 mK/W
  • Diameter: 2.41 mm
  • Beta Value: at 25/100ºC
  • Lead Wires: AWG30, PTFE Insulation
Thermistor Constants for
OsTech Temperature Controllers
  • xTSC0-273.15
  • xTSC11.1249e-3
  • xTSC22.3480e-4
  • xTSC38.5273e-8
  • xTSM1

Product Overview:

Epoxy Sealed Head NTC Thermistor

This NTC thermistor is molded into a small-form epoxy head. The lead wires are PTFE insulated.
