10kΩ NTC Thermistor, –55°C to +155°C

  • metal lug ntc 10k Ohm thermistor

Request Quote
sku / item#: sen-609
ships: 14 to 18 days

Key Features
  • Operating Temperature: –55°C to +155°C
  • NTC Thermistor Molded in a Metal Lug for Positive Thermal Contact
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL sen-609
PRICE Request Price
General Specifications
  • Operating Temperature: –55°C to +155°C
  • Rated Temperature: +25ºC
  • Power at 25ºC: max 150mW
  • Resistance Tolerance: ±2%
  • Thermal Conductivity (Air): approx 2.6 mK/W
  • Cooling Time Constant (Air): approx 28 s
  • Beta Value: at 25/100ºC
  • Lead Wires: Nickel, AWG30, PTFE Insulation
Thermistor Constants for
OsTech Temperature Controllers
  • xTSC0-273.15
  • xTSC11.1249e-3
  • xTSC22.3480e-4
  • xTSC38.5273e-8
  • xTSM1

Product Overview:

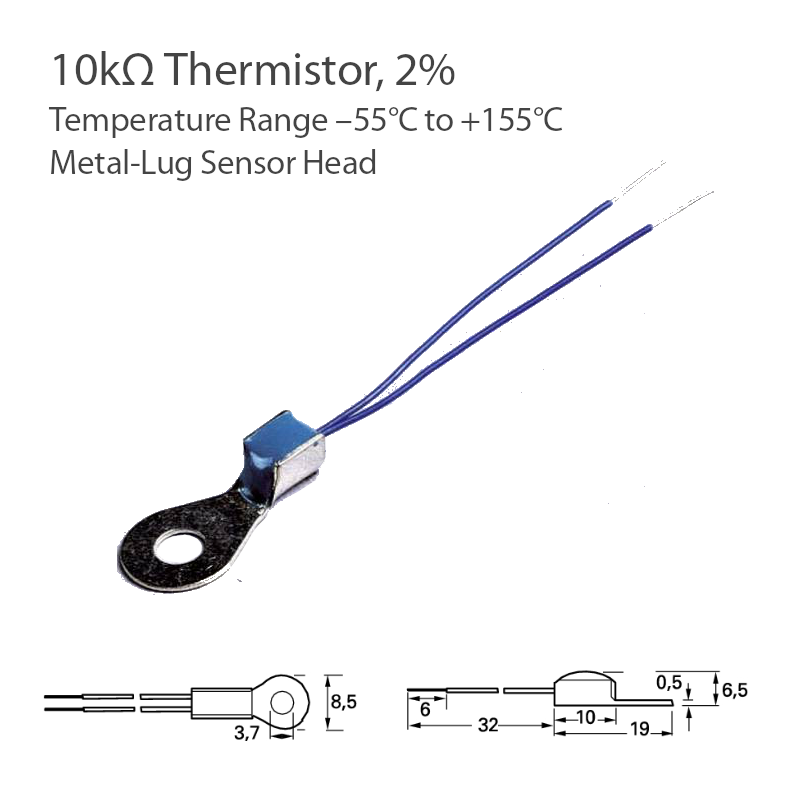

Metal-Lug NTC Thermistor

This NTC thermistor is molded into a metal lug for positive thermal contact.
