10kΩ NTC Thermistor, –55°C to +250°C, Non-Insulated Leads

  • glass head ntc thermistor

Request Quote
sku / item#: sen-610
ships: 14 to 18 days

Key Features
  • Operating Temperature: –55°C to +250°C
  • NTC Thermistor in a Glass Head, non-Insulated Leads
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL sen-610
PRICE Request Price
General Specifications
  • Operating Temperature: –55°C to +250°C
  • Rated Temperature: +25ºC
  • Power at 25ºC: max 18mW
  • Resistance Tolerance: ±1%
  • Thermal Conductivity (Air): approx 0.4 mK/W
  • Cooling Time Constant (Air): approx 3 s
  • Beta Value: at 25/100ºC
  • Lead Wires: Wires not insulated
Thermistor Constants for
OsTech Temperature Controllers
  • xTSC0-273.15
  • xTSC11.1333e-3
  • xTSC22.3321e-4
  • xTSC39.2801e-8
  • xTSM1

Product Overview:

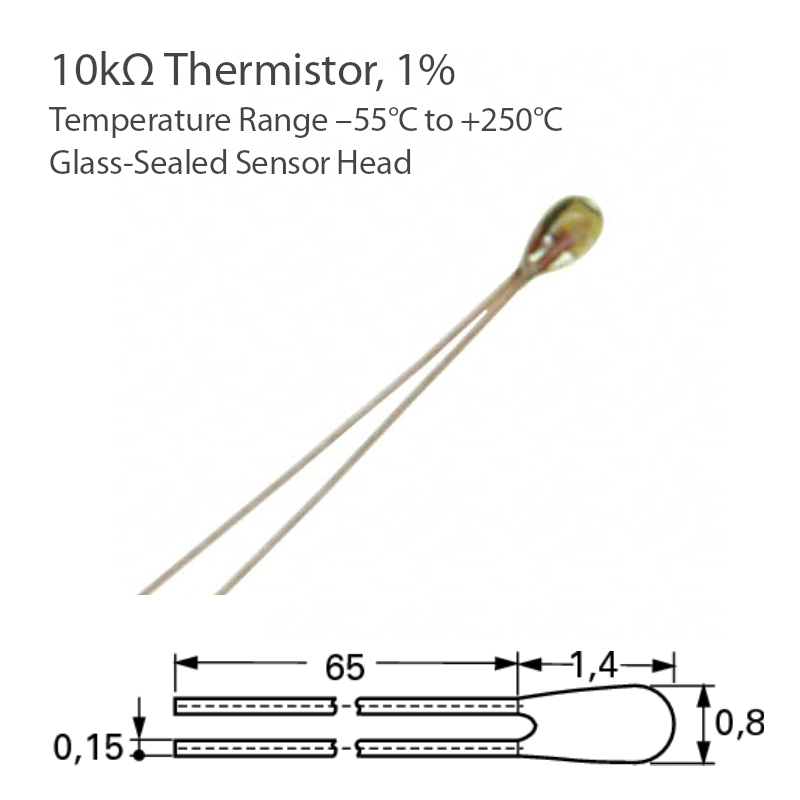

Sealed Glass Head NTC Thermistor

This NTC thermistor is molded into a glass head for high stability over a wide temperature range. The lead wires are not insulated.
