High Current 100 Amp Laser Diode Driver Module for Laser Bars & Stacks

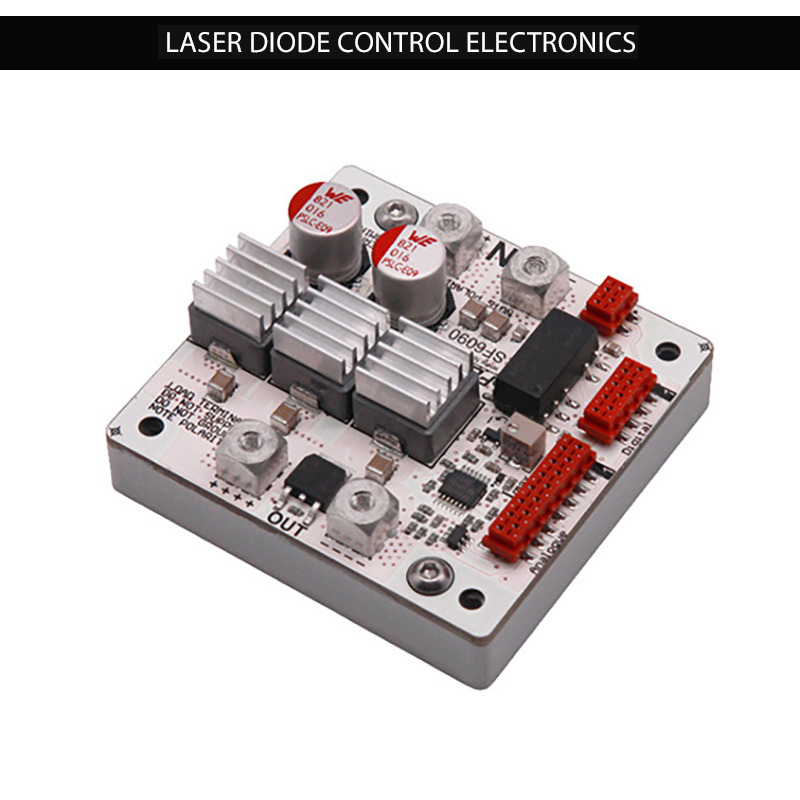

  • High Power Laser Diode Driver Module, 100A

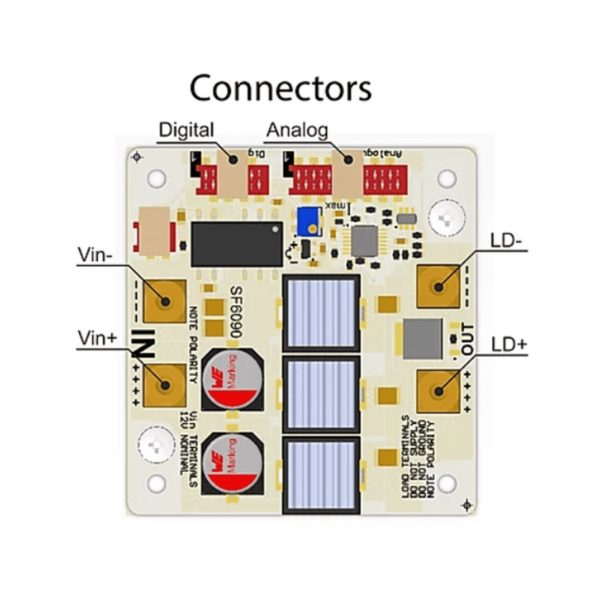

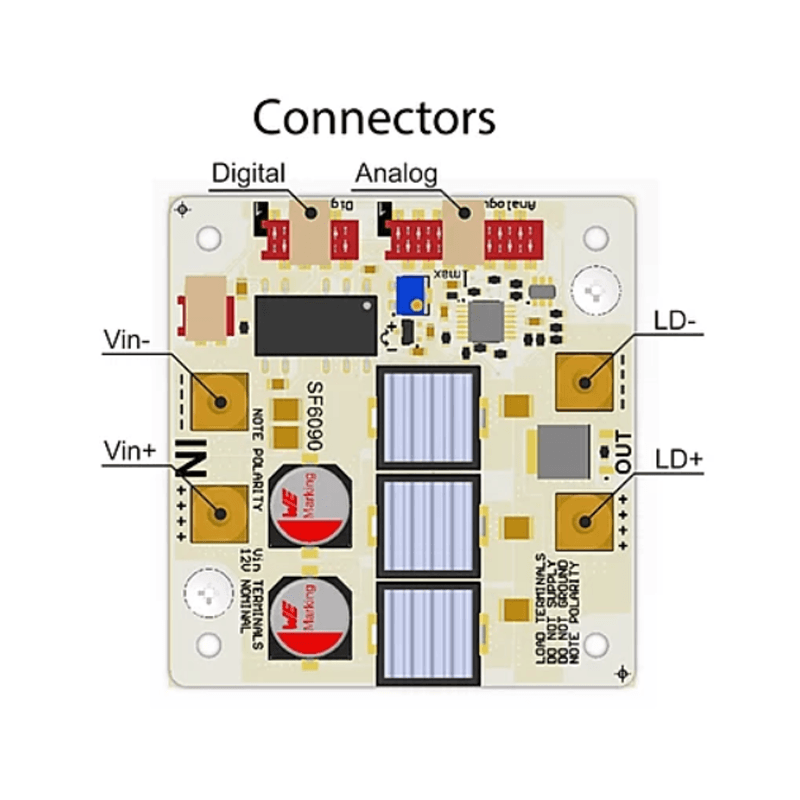

  • 100 Amp Laser Diode Driver Circuit

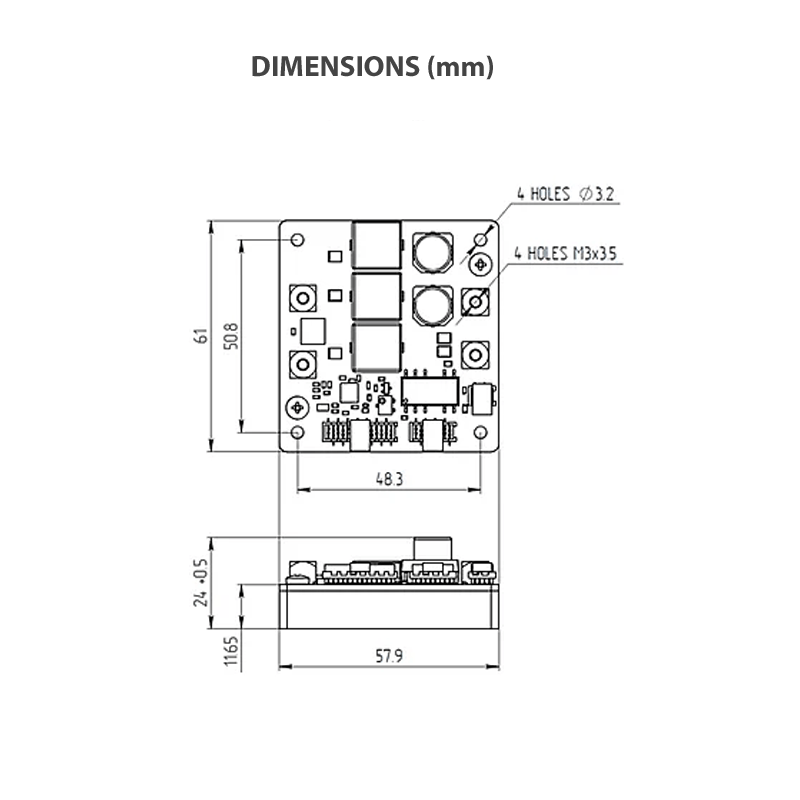

  • 100 Amp Laser Diode Driver Dimensions
  • 100 Amp Laser Diode Controller Software GUI
  • power-supply
  • laser diode driver pulse rise time

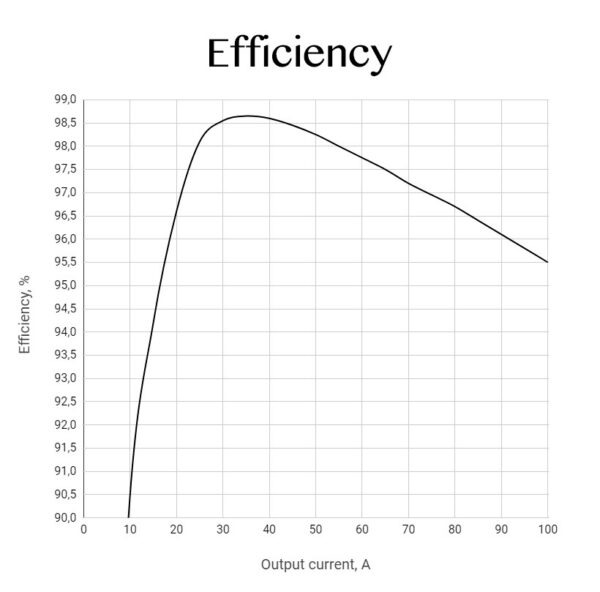

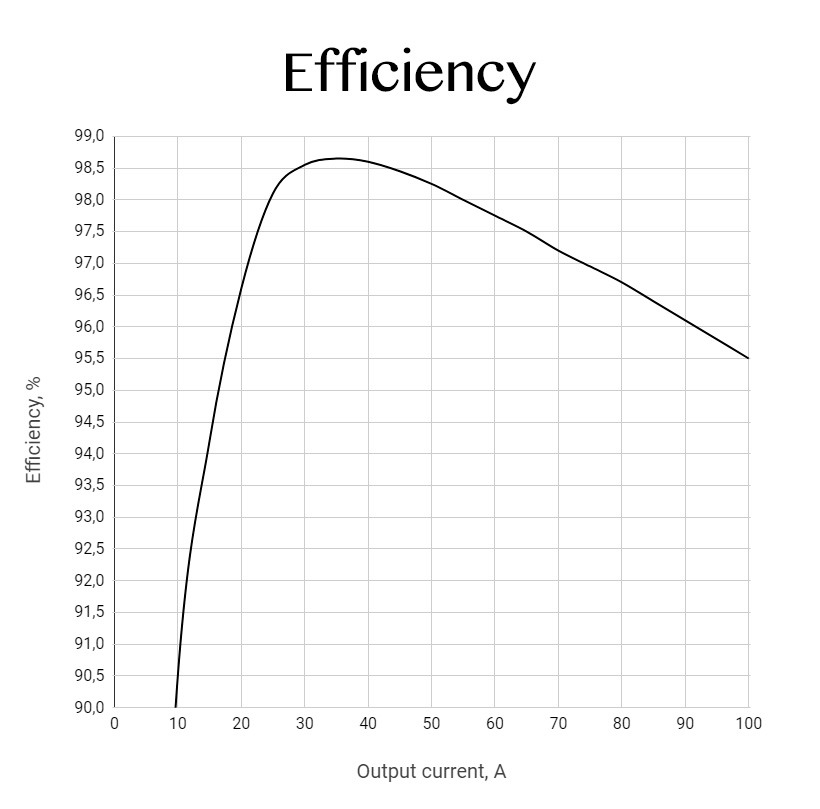

  • 100 Amp Laser Diode Driver Software Efficiency Graph

sku / item#: SF6090 v1.3
ships: Request a Quote for Current Ship Date

Key Features
  • Output Current Up to 100 Amps (CW); Compliance Voltage up to 10V
  • Designed for High Power Laser Diode Bars and Arrays
  • Soft-Start Current Ramp, Current Limit, Reverse Voltage Protection
  • Analog Control Signal/ RS-232 / UART $35.00 (Option UART-USB)
  • NTC Thermistor Input for Laser Over-Temperature Fast Shut-Down
  • Very High Efficiency up to 98%
  • Free Control Software Included
  • LabView driver
  • RoHS3 compliant
  • ULTRA-COMPACT: 60mm x 58mm x 30mm
  • Free Control Software with GUI
    5% Discount for Orders > 5 Units

Price and Delivery Quote

Buy Now / Add to Cart

5% Discount on Orders > 5 Units

Purchase the Recommended Switching
Power Supply for this Laser Diode Controller

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL SF6090 v1.3
PRICE $575.00
  • CW Output Current Range (I): 0 ~ 100 Аmps
  • CW Output Voltage (0.75*Vin max) (V): 1 ~ 10 Volts
  • Minimum Current Set-Point Step Size: 0.03 Amps

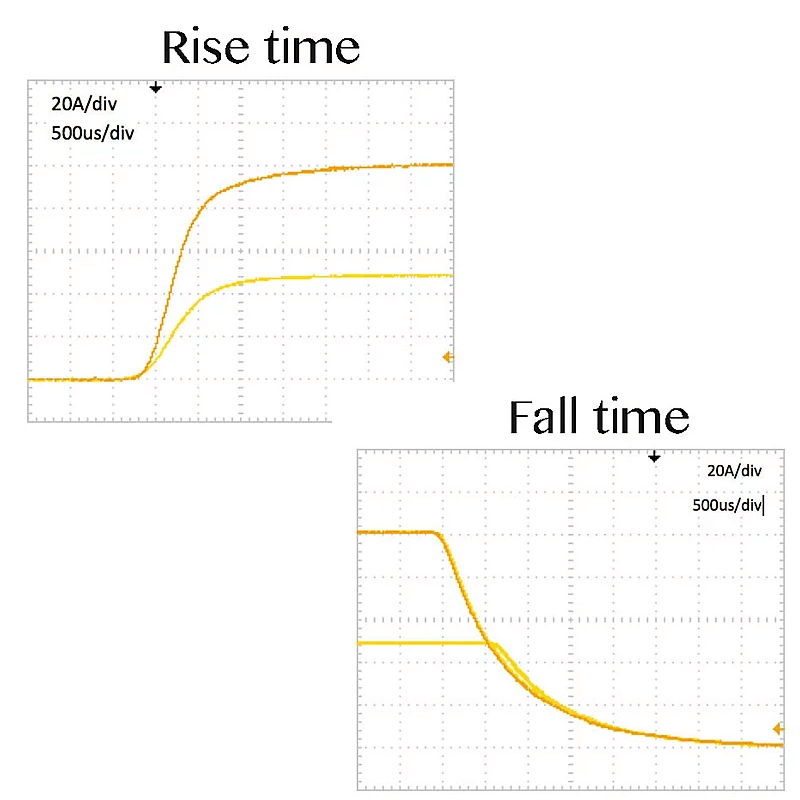

  • Rise Time: (Iout = 100A) min - 150μs; max - 300μs
  • Rise Time: (Iout = 50A) min - 120μs; max - 400μs
  • Fall Time: min - 250μs; max - 500μs
  • Current Stability: <0.2 %
  • Current Setpoint Absolute Accuracy: <1 %

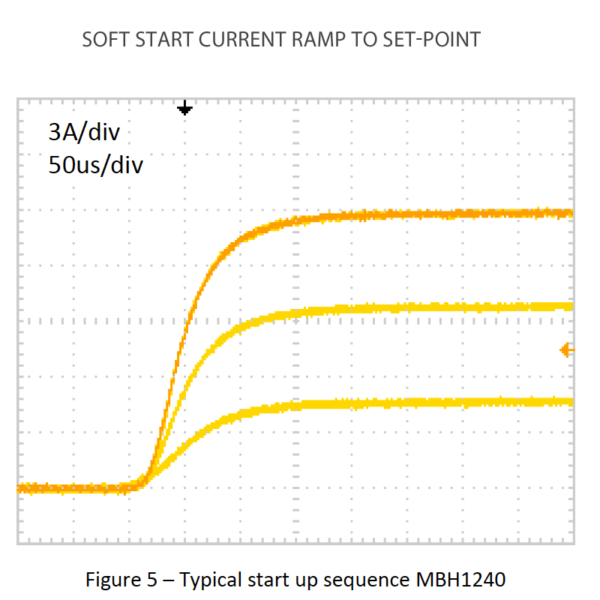

  • Soft-Start Current Ramp to User Set-Point
  • User Adjustable Current Limit
  • Over-Current Protection Shutdown
  • Over-Temperature Warning & Shut-Down
  • Reverse Current Protection
  • Crowbar Circuit Protection
  • Disable Input
  • Interlock
  • Dimensions: 61 mm x 57.9 mm x 24 mm
  • Weight: 146 g
  • Analog Control Signal Connector
  • RS-232 / UART Serial Digital Interface
  • Enable / Disable Input Signal Input
  • User Adjustable Trim Potentiometer Current Limit
  • USB Optional: $35.00 (Option UART-USB)
  • Input Voltage Range (Vin): 10 VDC ~ 14 VDC
  • Recommended Switching Power Supply: Mean Well RSP-1000-12,
    available for purchase with this laser diode controller.
  • Driver – 1 pcs
  • 50 cm ribbon cable with one 8-pin connector – 1 pcs
  • 50 cm ribbon cable with one 14-pin connector – 1 pcs
  • Wires fixing set – 1 pcs
  • Datasheet & User Manual – 1 pcs
  • Current Output Cable Not Included
  • 1-year manufacturer's warranty

Product Overview:

100 Amp, 10 Volt High Power Laser Diode Driver Module Overview

The SF6090 is a precision high power, small form factor CW constant current source driver for laser diodes. In addition to multiple laser diode protection circuits, these modules deliver high stability at power levels up to 100 Amps with low ripple. They are offered on a thermally optimized aluminum base plate to assist with efficient heat dissipation. This driver module was designed to be easily mounted onto a thermally conductive surface with enough heat sink capability to dissipate the required waste heat. These 100 Amp, 10 Volt high performance OEM modules are an ideal choice for integration into high power laser systems used for materials processing and medical equipment applications.

Review of SF6xxx Series High Power Laser Diode Protection Features

The SF6xxx Series drivers provide protection features which are simple to set-up and more than adequate to protect your LD. They include an over current protection circuit with a user adjustable limit, a soft-start current ramp, and an over-temperature shutdown. Additional features to protect your high power laser diode include reverse current protection and crowbar circuit protection. The crowbar circuit is a fast shorting clamp which is activated in over-current, open circuit and over-temperature events.

Sourcing Current to your Laser and the Crowbar Clamp Protection

The modules are initially enabled by applying an active high 3.3V ~ 5V DC compatible logic input signal. The driver sources current and begins to operate when the 5V input enable pin is high. To ensure that the current enable is applied without overshoot, a slow start sequence initiates when the enable pin is set high. The enable pin can also be used in the quasi-CW mode. The output current is set by applying an analog signal to the current set pin on the control connector. The current set pin can be used for analog modulation by applying sign wave, square wave or ramp signal. The output may be pulsed by applying a TTL square signal to enable pin. The minimum pulse duration 500 microseconds.

These high power drivers offer a highly reliable crowbar clamp to short the current and disable power to your laser diode. There is a pin on the control connector which shows the crowbar protection circuit status. The crowbar will short the output while the module is in an over-current shutdown or an over-temperature shutdown mode.

Driver Safety Interlock, Current Monitoring and Voltage Monitoring

These SF6xxx units have an interlock pin which must be connected to the ground order for output current to be enabled. The safety interlock is used to shut-down the module with a logic high signal triggered by and external interlock trigger such as a door to the lab or an external over-temperature circuit. These modules also have an on-board temperature sensor which will shut-down the output when the temperature exceeds a pre-set temperature. The output voltage of the driver can be monitored by a linear scaled voltage monitor output, 0~1V. The voltage is measured between LD+ terminal and GND. The current can be monitored by a linear voltage output, 0~1V = 0~3A also with +/-2%.
