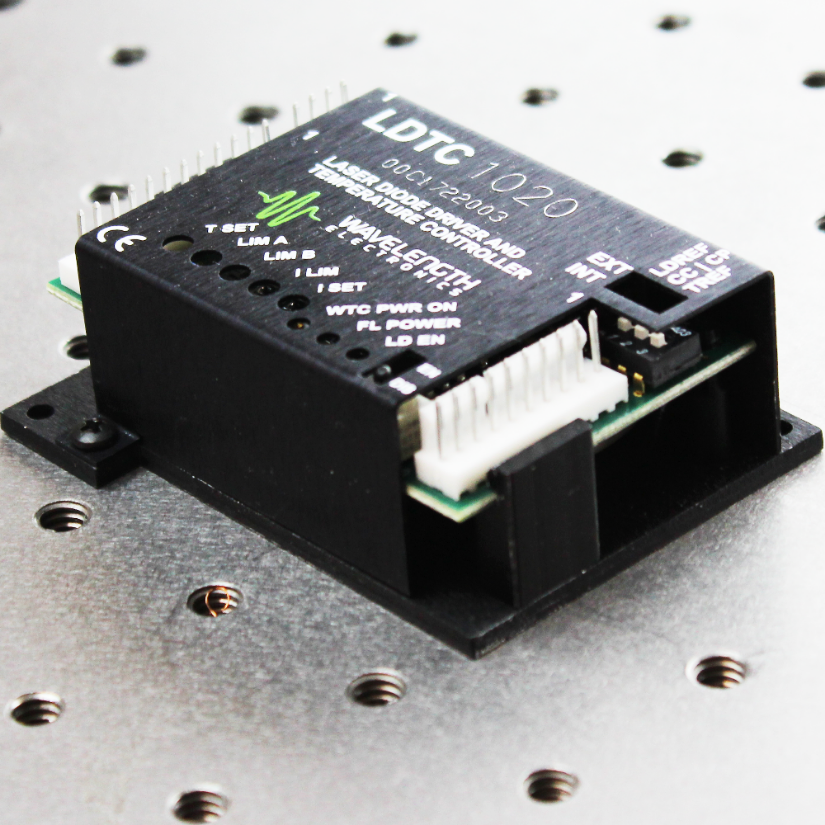

Wavelength Electronics 1 Amp Laser Diode Driver & Thermal Controller

$489.00   Ships: Stock | Model LDTC1020

Key Features
  • Low Noise 1000mA Laser Diode Current Source
  • User Adjustable Limits
  • Slow-Start Protection
  • Small Dimensions 2.35 x 2.9 x 1.075 inches

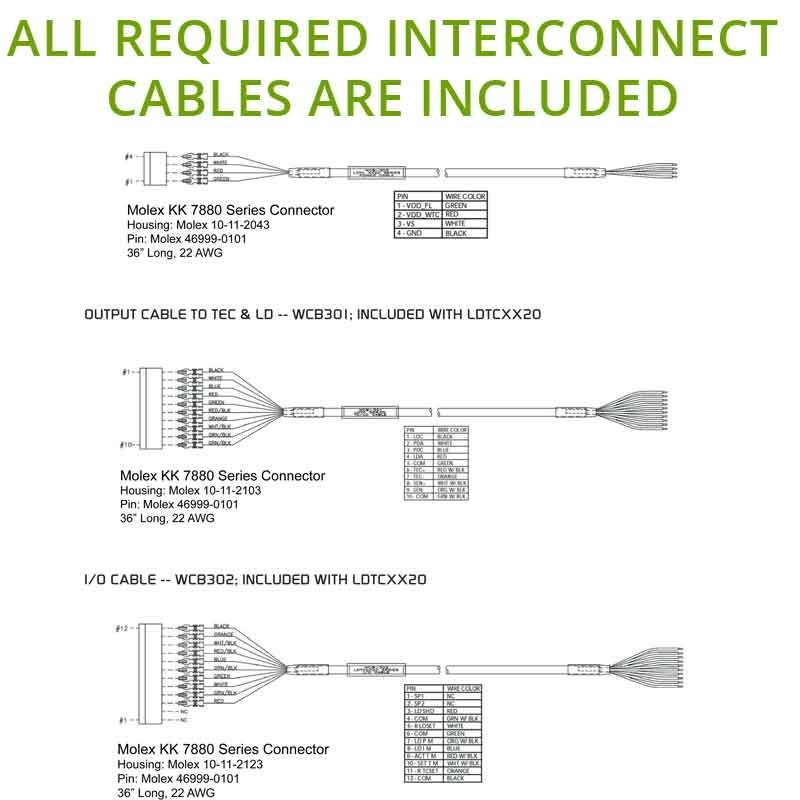

  • Chassis mount assembly includes all cables

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL LDTC1020
PRICE $489.00
LASER DIODE DRIVER / CURRENT SOURCE:
  • Laser Diode Driver Output Current: 0 - 1000 mA
  • Noise & Ripple: < 22 µA RMS noise at full scale
  • 24 Hour Current Stability @ 25°C: 50-75 ppm
  • Input Power Supply Range: +3 to +12 VDC
  • Soft Start Delay: 100 msec.
  • Soft Start Ramp: 15 mA / msec
  • Rise / Fall times: 300 nsec (to full scale)
  • TTL Compatible RESET / ENABLE
  • Safety: Brownout Protection, Current Limit
  • Maximum Power Dissipation: 2 Watts
TEMPERATURE CONTROLLER:
  • Temperature Control Output Current: 0 to ±2.2 A
  • One Hour Temperature Stability: 0.002°C (10 kΩ thermistor at 25°C)
  • One Hour Stability across ambient: 0.005°C (10 kΩ thermistor at 25°C)
  • Safety: Temperature Limit
  • Setpoint vs. Actual Temperature Accuracy:< 2 mV
  • PI Control Loop
  • Compatible with multiple sensors (NTC Thermistors and others)
  • Maximum TEC Power Dissipation: 9 W

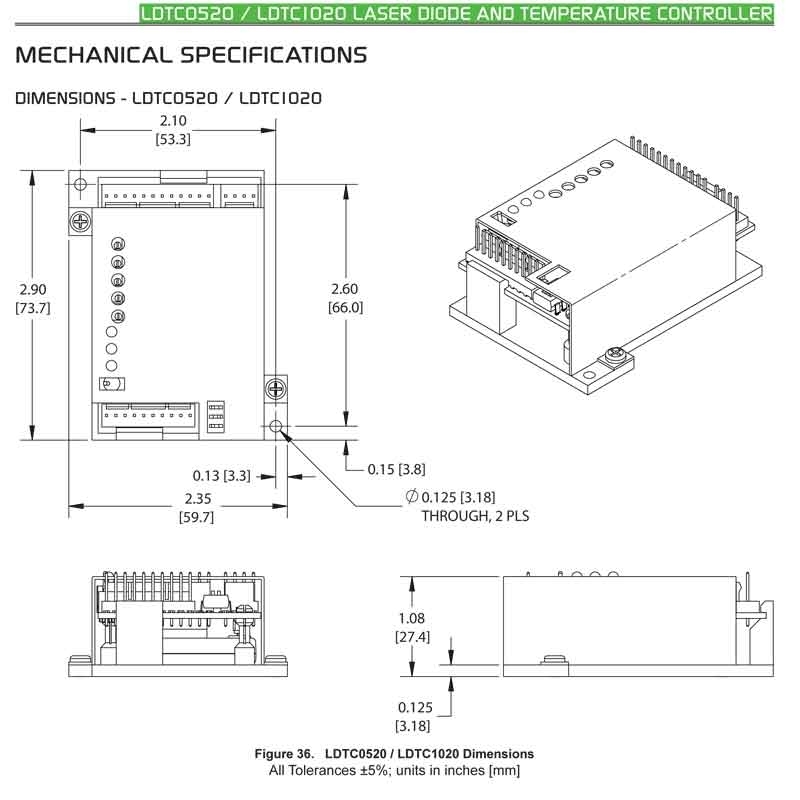

DIMENSIONS
  • 60 x 74 x 28 mm

Product Overview:

The LDTC1020 series laser diode control modules are offered in a small package size with a current range up to 1000mA. These units have an adjustable laser diode current limit and they drive up to ±2.2 A of TEC current. The current limit is set by an on-board trim pot and protects the laser from over-current situations. The current limit circuit is intended to avoid overshoot, ringing, or saturating the control elements, and recovers from limit events without phase shifts or inversions.
