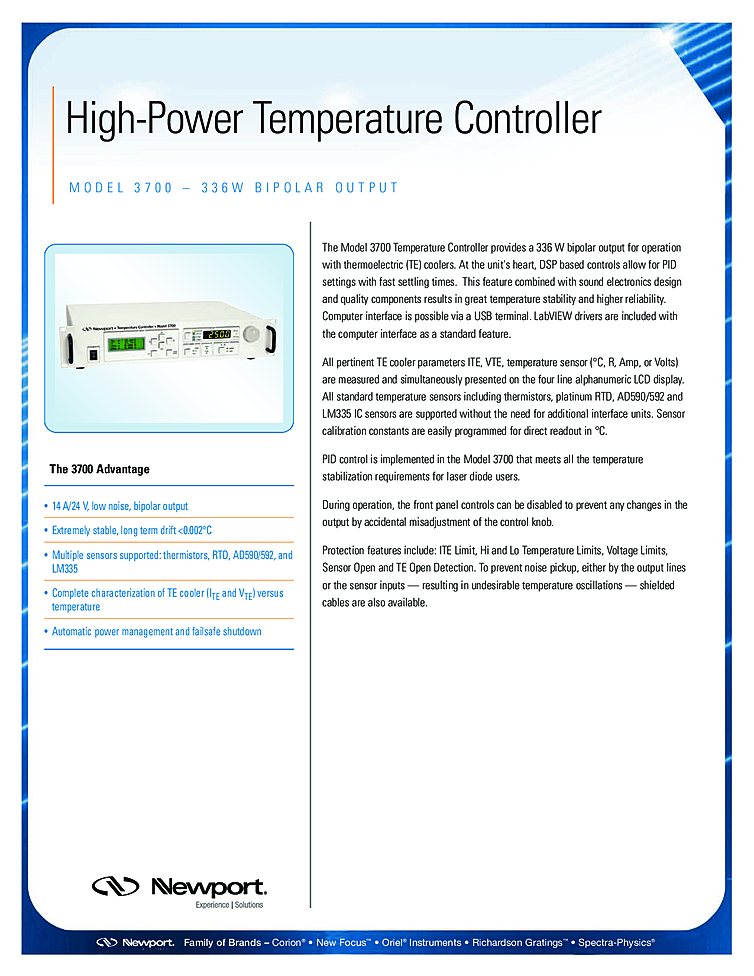

336 Watt TEC, ILX/Newport Model 3700

ILX/Newport Model 3700
The Newport 3700 is a precision high power laser diode TEC controller that delivers 336 Watts of high stability power while protecting your device from thermal damage. The 3700 is a bipolar Peltier / TEC temperature controller designed to precisely control your laser diode's temperature. Multiple layers of protection including user-set temperature and power limits protect your device from thermal damage.

A fast P.I.D. control loop delivers high stability and fast settling times.

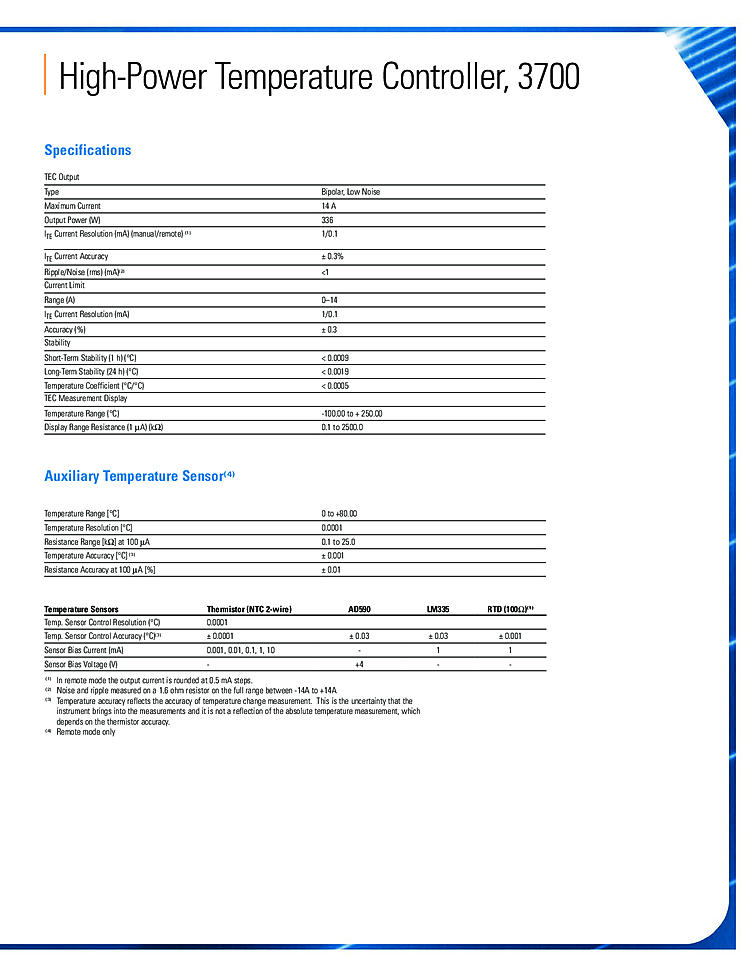

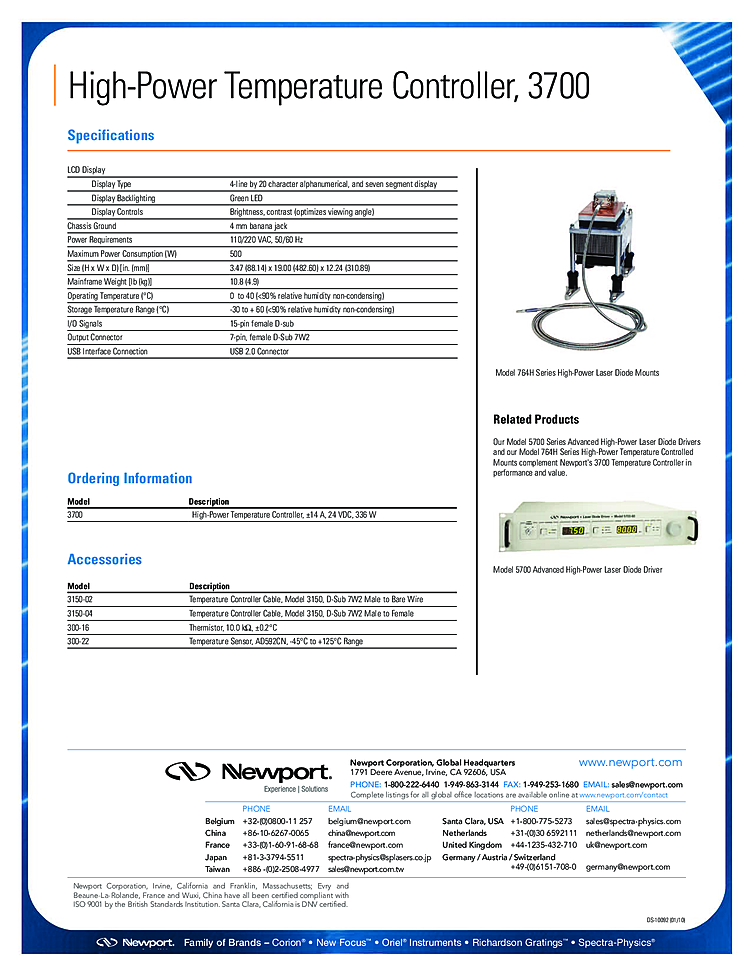

Specifications and Key Features:
- The Newport 3700 is a precision high power laser diode TEC controller that delivers 336 Watts of high stability power and includes multiple levels of protection to safeguard your device from thermal damage
- Cooling Power: 336W
- Current: 14 Amps
- Voltage: 24V
- Type: Bipolar

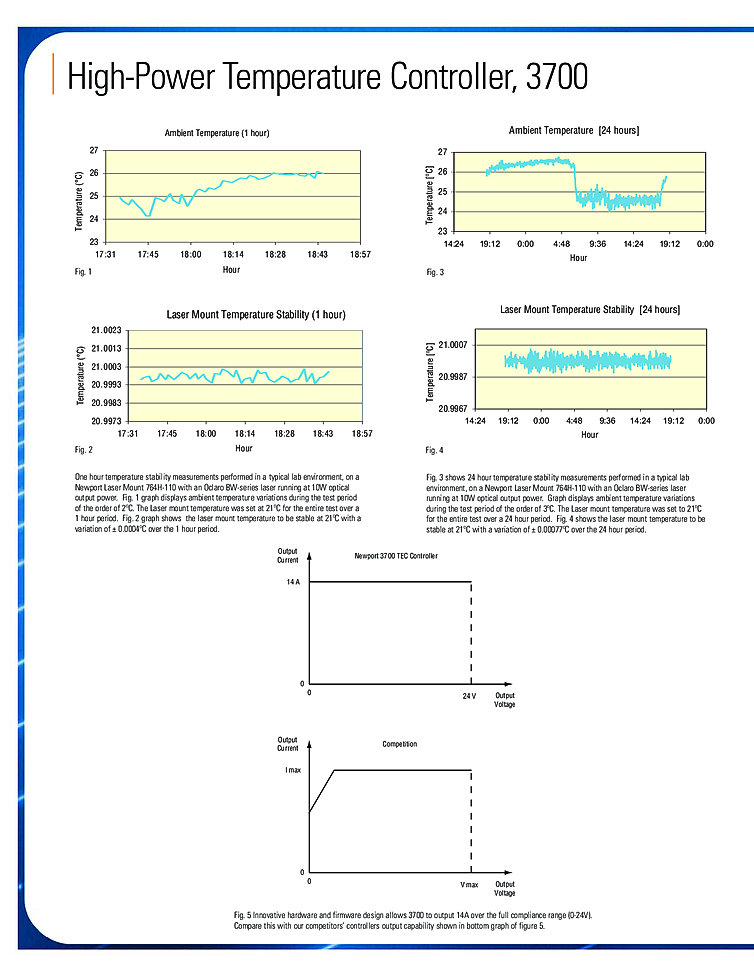

- Long-Term Stability: +/- 0.002°C (24hr)
- Short-Term Stability: +/- 0.001°C (1hr)
- Control Loop Algorithm: Full P.I.D.
- Temperature Range: -100°C to +250°C
- Limits: User Adjustable
- Set Point Resolution: 0.001°C
- Thermistor: NTC 2-wire
- IC: AD590, LM3350
- Sensor Control Accuracy (25°C) (°C): ±0.2 (NTC)
- Front Panel: Multi-Segment LED
- Rear Panel: 15 Pin Female D-Sub Connector
- Rear Panel: USB
