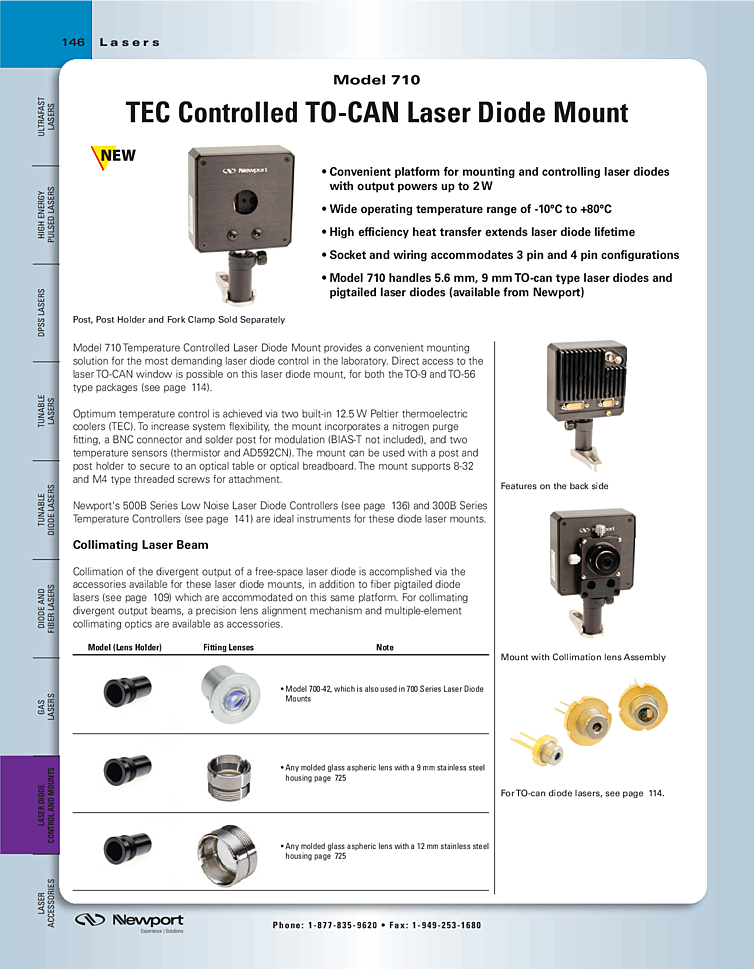

TO-Can Packaged Laser Diode Mount

ILX Lightwave model: Model 710

These temperature controlled laser diode mounts have integrated TEC coolers to provide a convenient mounting solution for 5.6mm and 9mm TO-Can packaged laser diodes. These heat sinks offer direct access to the laser window. A wide temperature control range is offered by using 2 integrated TEC coolers. The mount includes temperature sensors (thermistor and AD592CN). The mount can be used with a post and post holder to secure to an optical table or optical breadboard. The mount supports 8-32
and M4 type threaded screws for attachment.

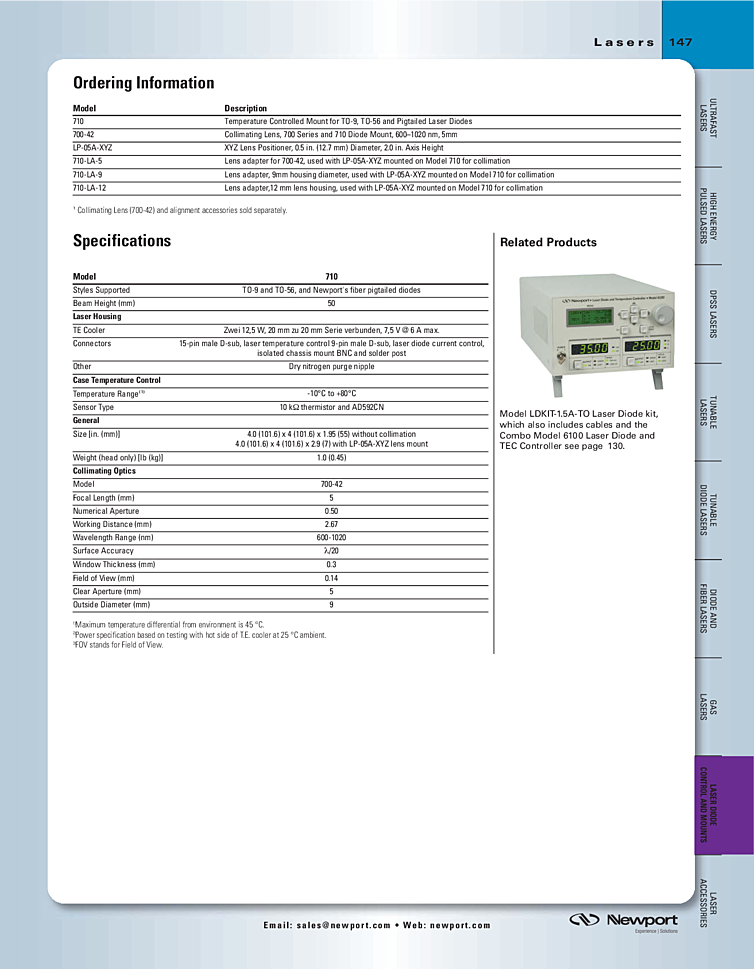

Specifications and Key Features Review:
- Compatible with 5.6 mm and 9mm TO-can Packaged Laser Diodes

- Two Integrated Peltier (TEC) Coolers for High Performance Thermal Control

- User Configurable Wiring Accommodates 3 pin and 4 pin Laser Diodes

- Manufactured by Newport, Offered and Fulfilled Worldwide by Laser Lab Source

- Compatible Package Styles: 5.6mm, 9mm

- Beam Height: 50mm

- Temperature Control Range: -5 to 80 °C

- Integrated Temperature Sensor: 10 kOhm thermistor and AD592CN

- Power: 6.0 A, 7.5 V maximum

- Dual 12.5 Watt TEC Coolers (Series Connected)

- Connector 1: Laser Bias Current: Female 9-pin DSUB

- Connector 2: TEC Controller: Male 15-pin DSUB

- Optional: Contact for Options
