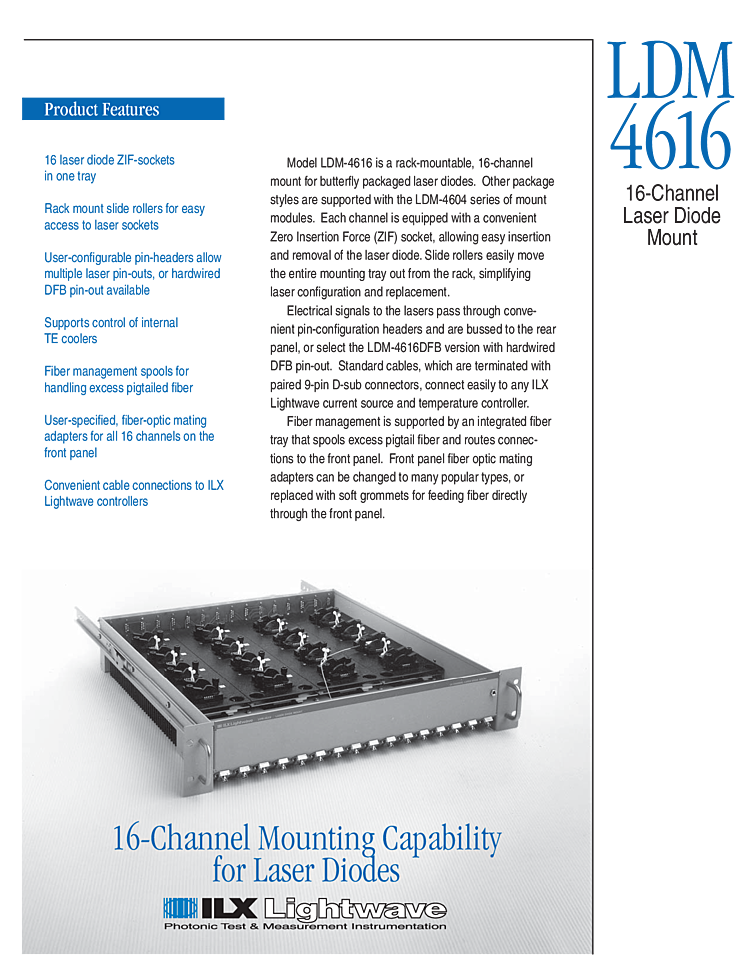

Laser Diode Mount, ILX Model LDM 4616

ILX Lightwave model: LDM 4616

The model LDM-4616 is a rack-mountable, 16-channel mount for butterfly packaged laser diodes. Other package styles are supported with the LDM-4604 series of mount
modules. Each channel is equipped with a convenient Zero Insertion Force (ZIF) socket, allowing easy insertion and removal of the laser diode. Slide rollers easily move
the entire mounting tray out from the rack, simplifying laser configuration and replacement. Electrical signals to the lasers pass through convenient pin-configuration headers and are bussed to the rear panel, or select the LDM-4616 DFB version with hardwired DFB pin-out. Standard cables, which are terminated with paired 9-pin D-sub connectors, connect easily to any ILX Lightwave current source and temperature controller. Fiber management is supported by an integrated fiber tray that spools excess pigtail fi ber and routes connections to the front panel. Front panel fiber optic mating adapters can be changed to many popular types, or replaced with soft grommets for feeding fiber directly
through the front panel.

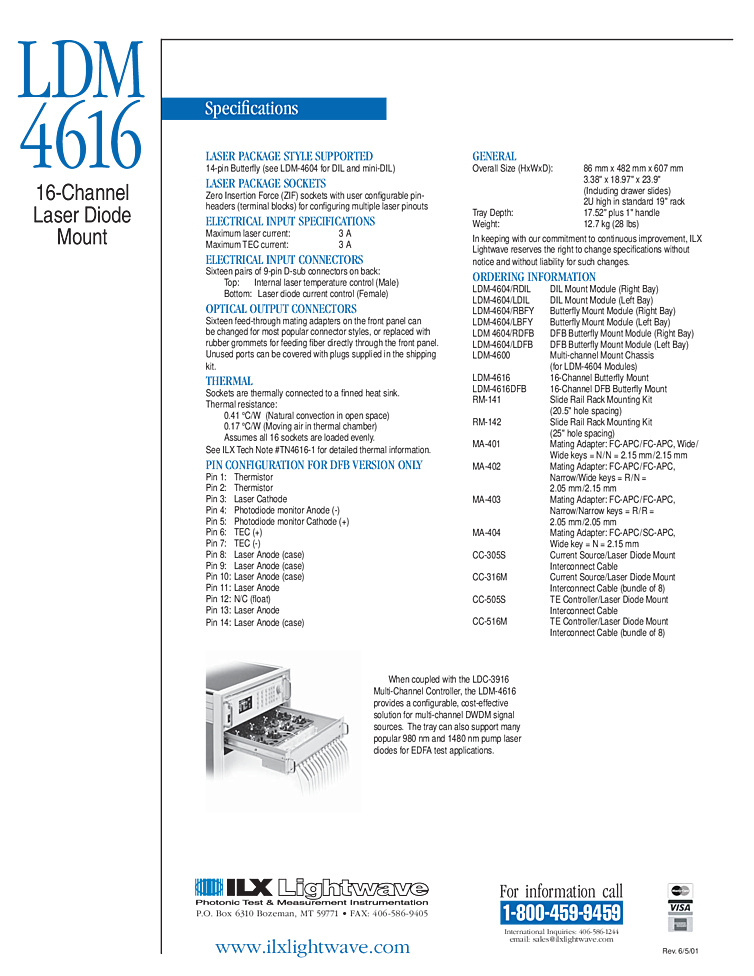

Specifications and Key Features:

- 16 Laser diode ZIF sockets
- Rack mount slide rollers for easy access
- User configurable pin headers
- Cable connections for ILX controllers
- Butterfly package
