32 Watt TEC Controller, ILX Model LDT-5910B

TEC Controller LDT-5910B

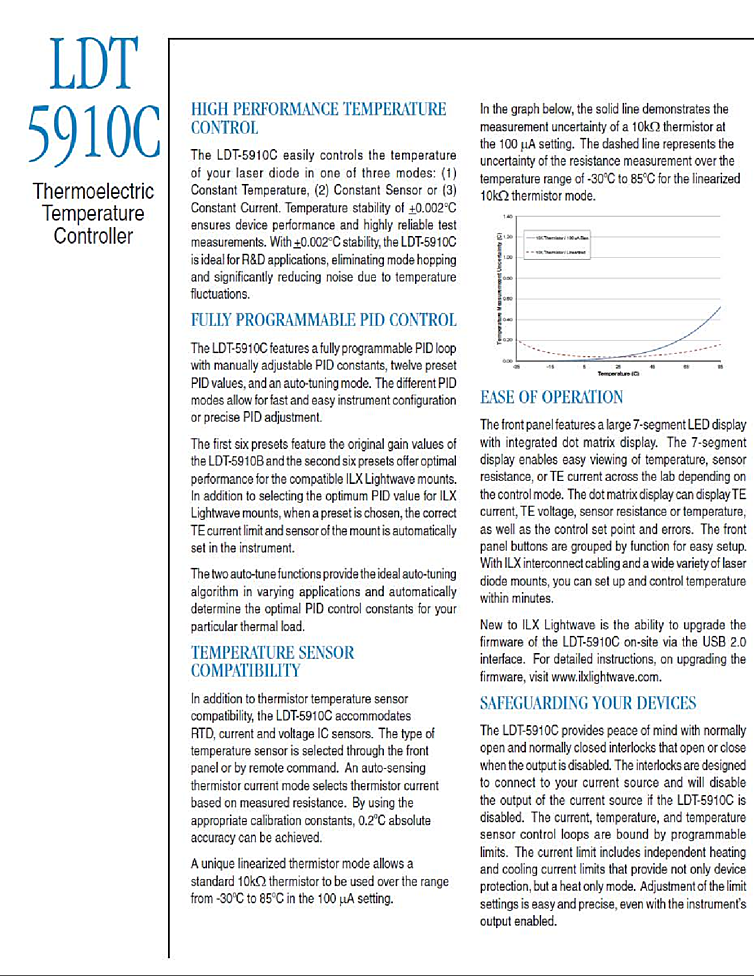

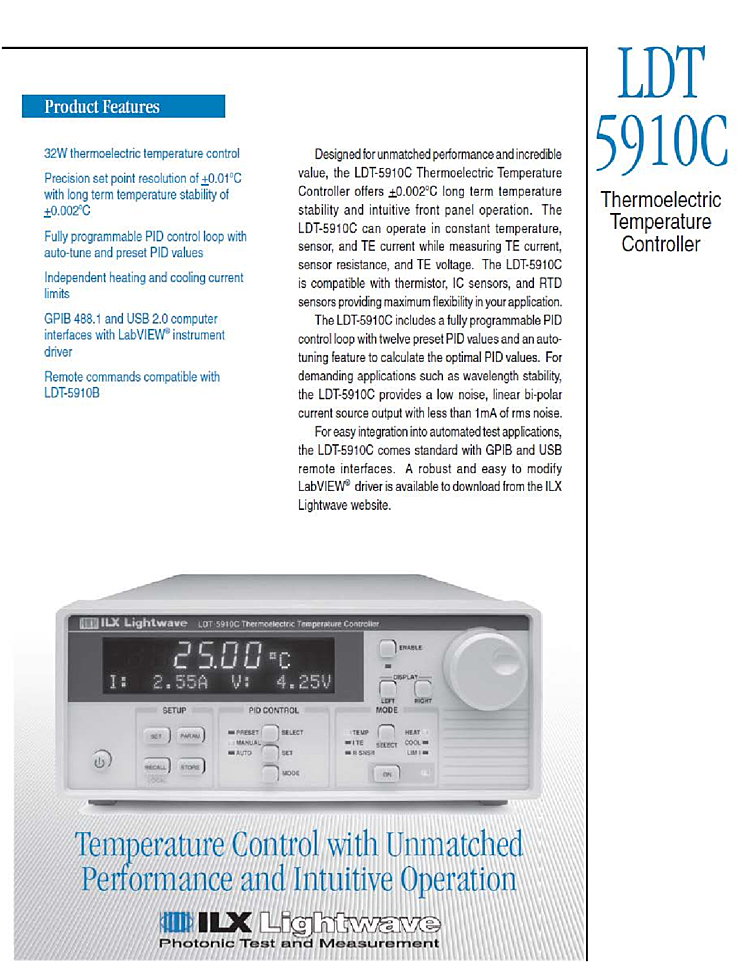

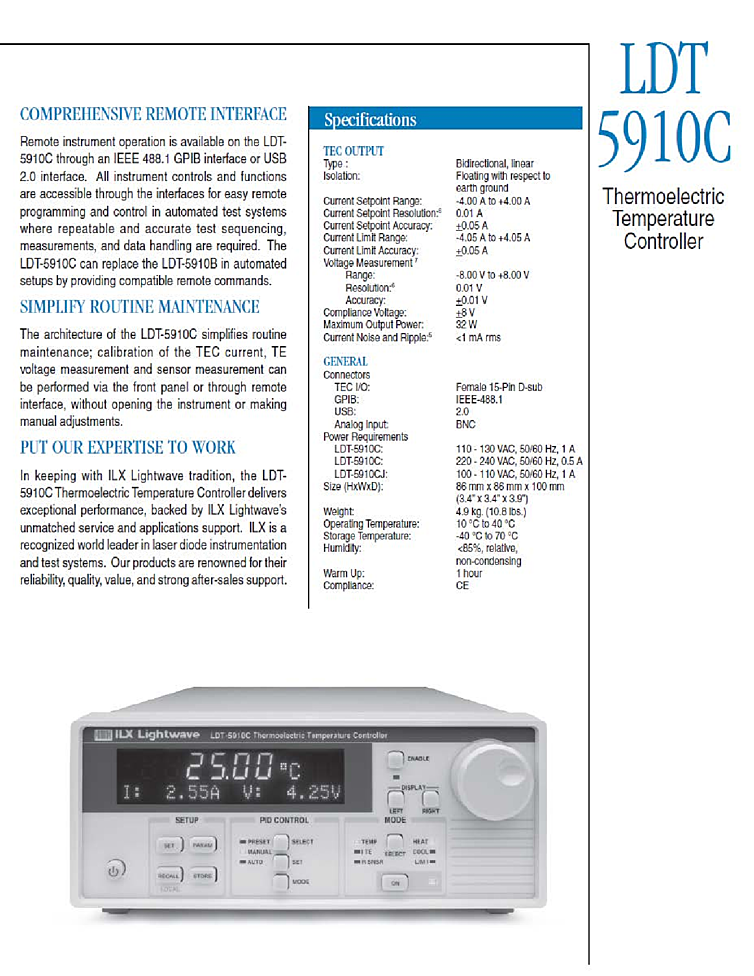

This laser diode temperature controller from ILX Lightwave is a replacement for the LDT-5910B series laser diode TEC controller. This product is a 32 Watt thermoelectric temperature control unit with precision set point resolution of +0.001 degrees Celsius. The long term temperature stability of this temperature controller is +0.002 C. Other key features include a fully programmable PID control loop with auto-tune and preset PID values and independent heating and cooling current limits. The LDT-5910C can operate in constant temperature, sensor, and TE current while measuring TE current, sensor resistance, and TE voltage. These units replace both the obsolete ILX Lightwave LDT-5910B series and the A series controllers. For more information, please refer to the attached specification sheet.

Specifications and Key Features:

- 32 Watt TE temperature control
- Programmable PID control loop
- Independent heating and cooling current limits
- Remote commands compatible with LDT-5910B
