60W Laser Diode Heat Sink, ILX Model 49800

ILX Lightwave series: LDM 49800

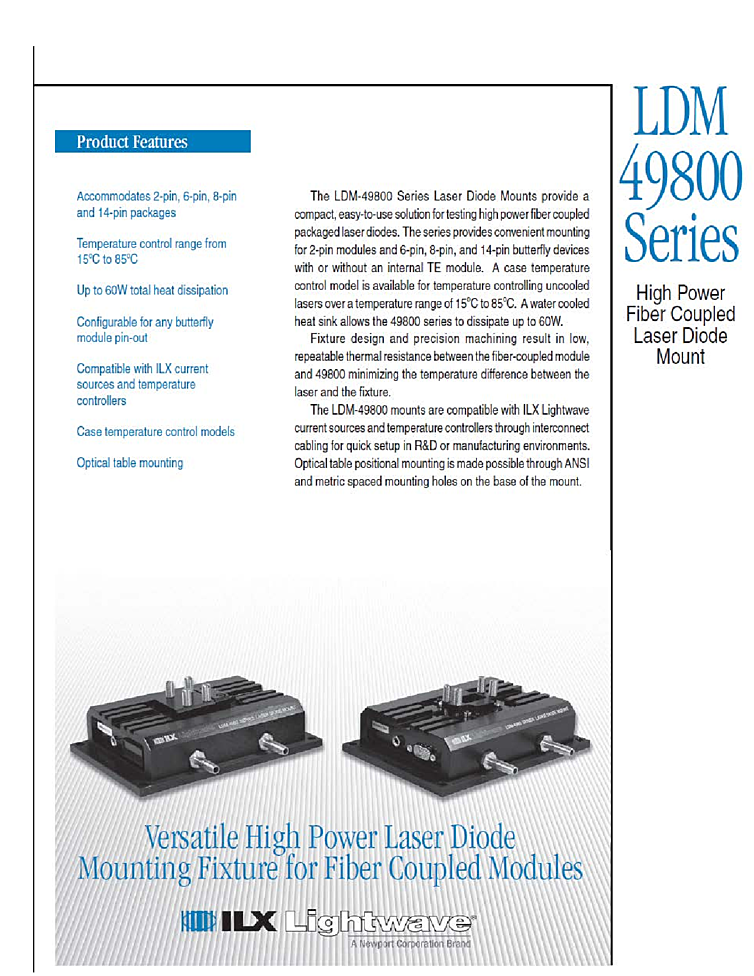

The LDM-49800 Series Laser Diode Mounts provide a compact, easy-to-use solution for testing high power fiber coupled packaged laser diodes. The series provides convenient mounting for 2-pin modules and butterfly devices with or without an internal TE module. A case temperature control model is available for temperature controlling un-cooled lasers over a temperature range of 15°C to 85°C. A water cooled heat sink allows the 49800 series to dissipate up to 60W. For more information, please contact ILX directly.

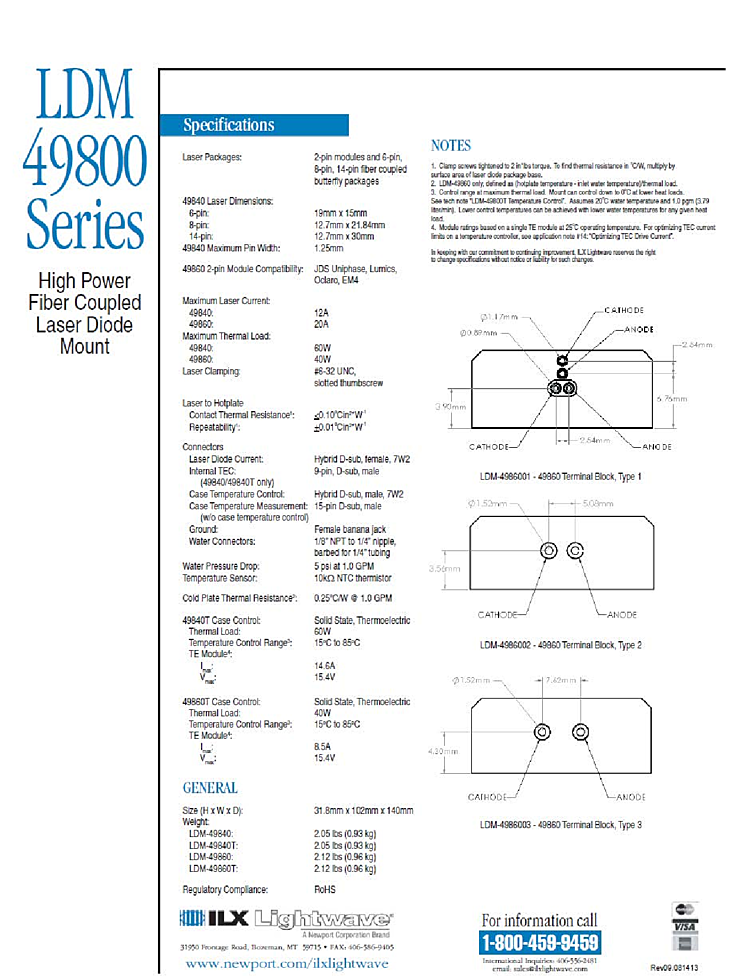

Specifications and Key Features:

- Heat dissipation up to 60W
- Temperature control range from 15°C-85°C
- Optical table mounting
- Configurable for any butterfly module
- Accommodates 2, 6, 8, and 14 pin packages
