TC15 LAB High Precision TEC Temperature Controller with IntelliTune®

$4779.00   Ships: In Stock | Model RLS-TC15 LAB

Key Features
  • Output Current ±15A
  • Compliance Voltage 20V
  • Temp stability better than 0.0009°C
  • Compatible with most sensor types
  • Intuitive user interface touchscreen
  • IntelliTune® PID control
  • Adjustable current limits
  • Over- and under-temperature protection
  • USB, Ethernet interfaces
  • 19" Rack mountable, 2 U half rack

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL RLS-TC15 LAB
PRICE $4779.00
General SPECIFICATIONS
  • Short Term Stability: 0.0006ºC
  • Temperature Coefficient: 5 - 18 ppm/ºC
  • Max. Compliance Voltage: 20 V
  • Bias Current Accuracy: 0.004%
  • Size: 3.47 x 8.86 x 17.72 inches
  • Operating Temperature: 0 - 40°C

Product Overview:

ULTRA-STABLE TEMPERATURE CONTROLLER

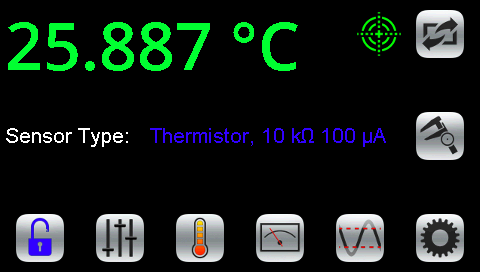

The TC LAB series of temperature controllers integrates high-end Digital Control with a precision output current drive stage to offer the best stability temperature control instrument commercially available today. Many different sensors can be used in the feedback loop including thermistors, RTDs, linear current and voltage sensors.

PROTECT YOUR THERMOELECTRIC AND LOAD

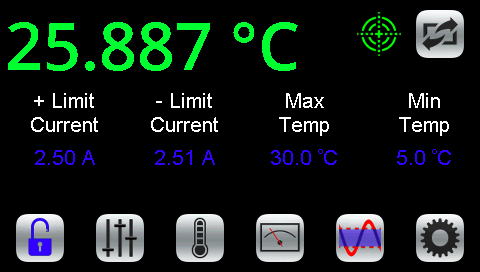

Safety features protect the thermoelectric [TE] and it’s load. Over and under temperature limits as well as positive and negative current limits can be set. If the sensor signal is lost or a short is detected at the TE, output current is disabled. If temperature limits are exceeded, a signal to the active load can be sent to disable its current. For example, connect the LD Shutdown BNC output to the Active Lock input on Wavelength’s QCL LAB driver and the QCL current will shut down if temperature limits are exceeded. An Auxiliary Sensor can be used to monitor the temperature of the system heatsink.

INTUITIVE USER INTERFACE AND SUPERIOR SOFTWARE CONTROL
With Wavelength’s plug and play instrument, you have the ability to quickly set the controls using either the instrument touch screen or a remote computer, and results are easy to monitor. This allows taking your temperature controlled application from the test bench to market quickly and efficiently.

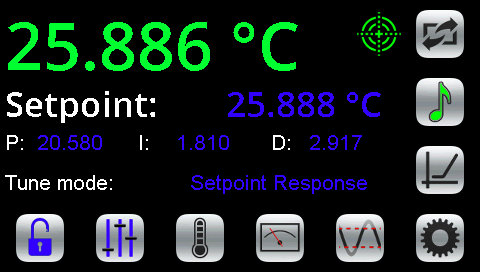

INTELLITUNE®: INTELLIGENT AUTOTUNE
Wavelength’s proprietary IntelliTune algorithm characterizes the TE/sensor system’s response to the controller and determines the optimal PID control coefficients. It then automatically adjusts the PID control values as setpoint, tuning mode, or bias current change.
