TO-5 brass Laser Diode Housing Mount

$24.00   Ships: In Stock | Model OPLLM0001

Key Features
  • High precision
  • Engraved cross
  • Back PCB
  • Offered by Opt Lasers, fulfilled by LaserLabSource.com

Price and Delivery Quote

You will receive factory-direct price with no mark-ups

Technical Questions for this Product

ASK AN ENGINEER

Questions route directly to the correct Product Engineer

Add to Cart or Buy Now

Why do Scientists & Engineers Choose Laser Lab Source?

  • NO SALES PERSON. Get direct access to the correct product ENGINEER. learn more »

  • NO MARK-UP's. Manufacturer's set their own lowest direct pricing. learn more »

  • LEADING BRANDS. We make it simple to buy from top Global suppliers. learn more »

Customers Also Considered:

MODEL OPLLM0001
PRICE $24.00

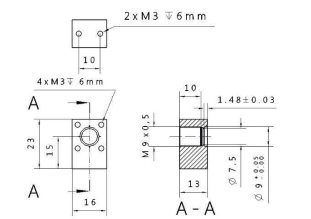

Mechanical
  • Diode housing TO-5 (9mm)

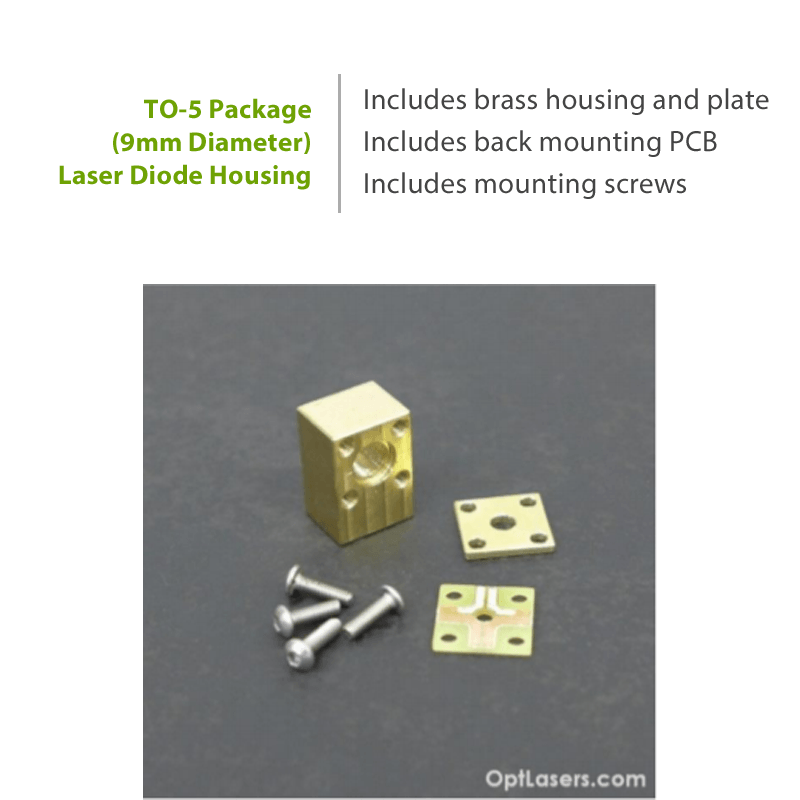

  • Included Brass housing, brass plate, laminate plate, 4xM3
  • screws
  • Lens thread M9x0,5
  • Beam height from the base 15mm
  • Dimensions (mm) 23x16x16,2

Product Overview:

TO-5 laser diode housing made of brass. The M9x0,5 hole for collimator is provided. "Cross" shape PCB at the back of the housing allows you to solder the diode pins in order to prevent them from breaking after soldering the wires. It also helps to fast solder the diode without thermal shrinking tube. Engraved cross at the back of the housing helps to put the diode in proper position (horizontal or vertical) with high accuracy.
