5.6mm, TO-18 Packaged Laser Diode Brass Housing Mount

  • TO can Housing Opt Lasers 000649

$59.00
sku / item#: RLS/000649
ships: Request a Quote for Current Ship Date

Key Features
  • Back mounted PCB plate for electrical connections
  • Includes Clamping Plate
  • Minimum Order Qty: 5 pcs
  • Offered by: OptLasers, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/000649
PRICE $59.00
Mechanical
  • Diode housing TO-18 (5,6mm)

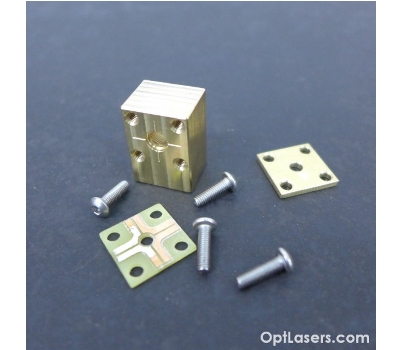

  • Included Brass housing, brass plate, laminate plate, 4xM3 screws
  • Lens thread M9x0,5
  • Beam height from the base 15mm
  • Dimensions (mm) 23x16x16,2

Product Overview:

5.6mm TO-18 Brass Laser Diode Housing Mount

This brass mount and heat sink is designed for standard 5.6 mm diameter, TO-18 laser diodes. The M9x0,5 hole for collimator is provided. "Cross" shape PCB at the back of the housing allows you to solder the diode pins in order to prevent them from breaking after soldering the wires. It also helps to fast solder the diode without thermal shrinking tube. Engraved cross at the back of the housing helps to put the diode in proper position (horizontal or vertical) with high accuracy.
