Dual-Output TEC Controller Optimized for Simultaneous Control of Laser & Non-Linear Crystal

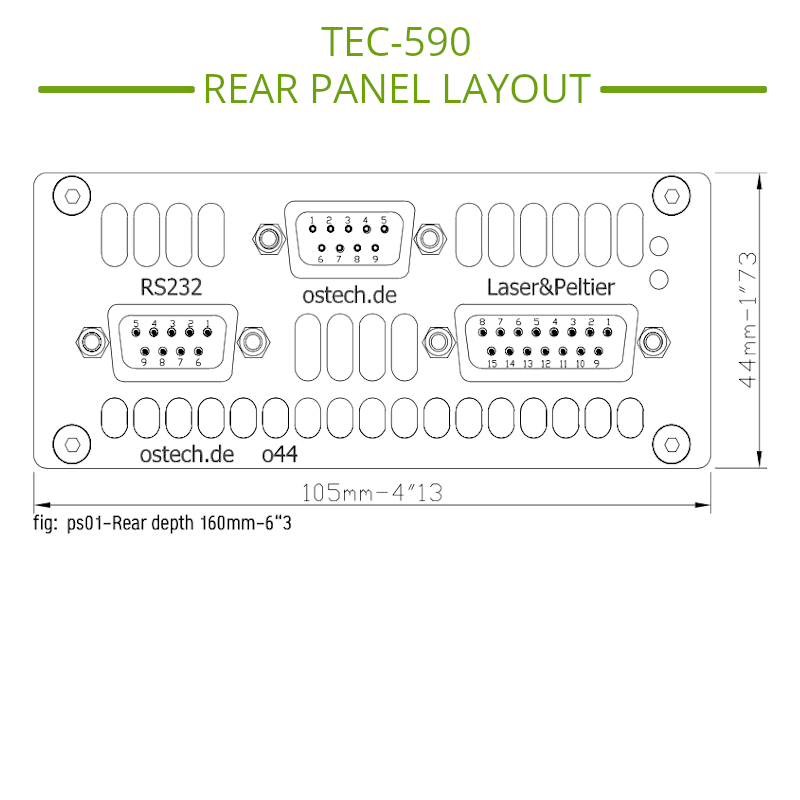

  • Dual TEC controller connector panel

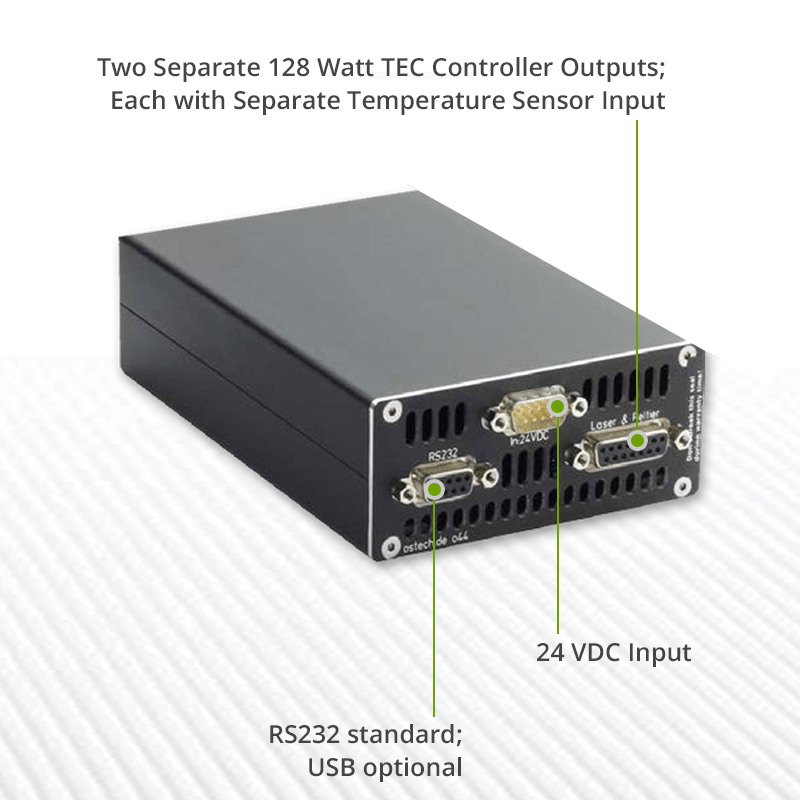

  • TEC-150 Dual Controller Case

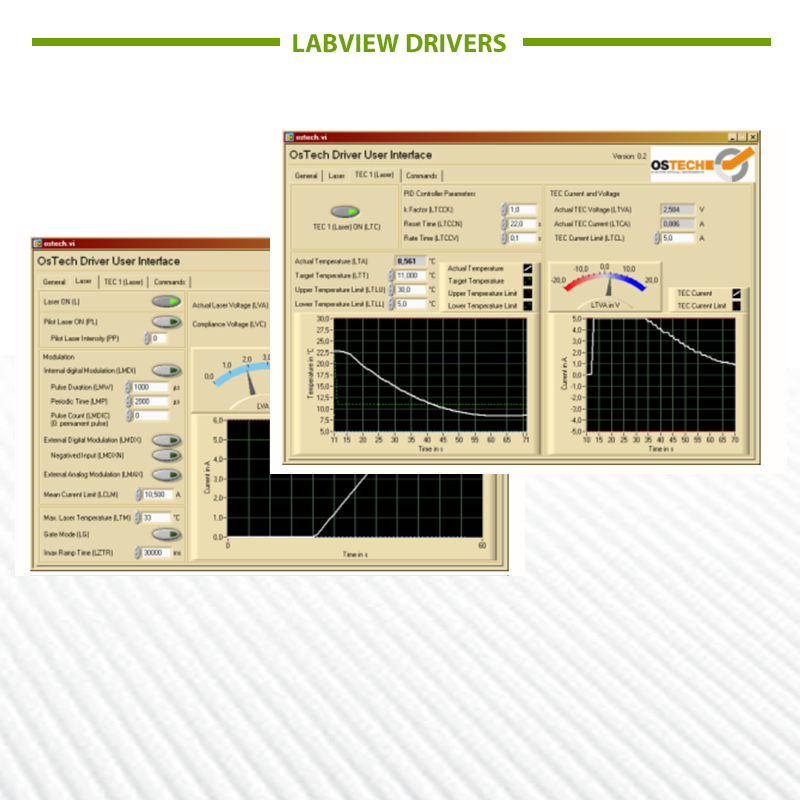

  • LabView Driver Software Screen Captures

$1275.00
sku / item#: TEC-590
ships: 14 to 18 days

Key Features
  • High Stability Dual Independent Temperature Controller for Laser Diodes and Crystals
  • Dual ±8 A, ±16 V, TEC / Peltier Controller Outputs
  • Dual Temperature Sensor Inputs
  • Previously Sold as PN: TEC-150

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).


This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL TEC-590
PRICE $1275.00
2 x TEC CONTROLLER (PELTIER) OUTPUTS
  • 2 x TEC Output Current Range (bipolar): ± 8.00 Amps (each)
  • 2 x TEC Output Voltage Range (bipolar) : ± 16.00 Volts (each)
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable (ships with factory pre-set variables)
  • Temperature Control Stability (8 hours @ 25°C) : 0.005°C
  • Temperature Range: -25°C to 150°C
  • TEC Setpoint Resolution: 0.01°C
  • Hardware Design Topology: H-Bridge, Bipolar
tec protection features
  • Peltier Element Protection: User Set Current Limit
  • User Set Upper & Lower Temperature Limits
Temperature Sensor
  • Dual Temperature Sensor Inputs
  • Thermistors: All 2 Wire NTC Types: 10 kΩ, 100 kΩ
auxiliary functions
  • External Fan Control Circuit, 1 - 24V, 500mA (max)
  • Electronic Safety Interlock
USER INTERFACE and connectors
  • RS232 Standard, LabView Drivers Included
  • USB Optional: $95.00 (Option SVC-USB)
  • Peltier Connector: SubD-15, Female
  • Power and Support Connector: SubD-9, Male
  • RS232 Connector: SubD-9, Female
Dimensions and Power
  • 44 mm (Height) x 105 mm (Width) x 160 mm (Depth)
  • 24V DC Power Input
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable

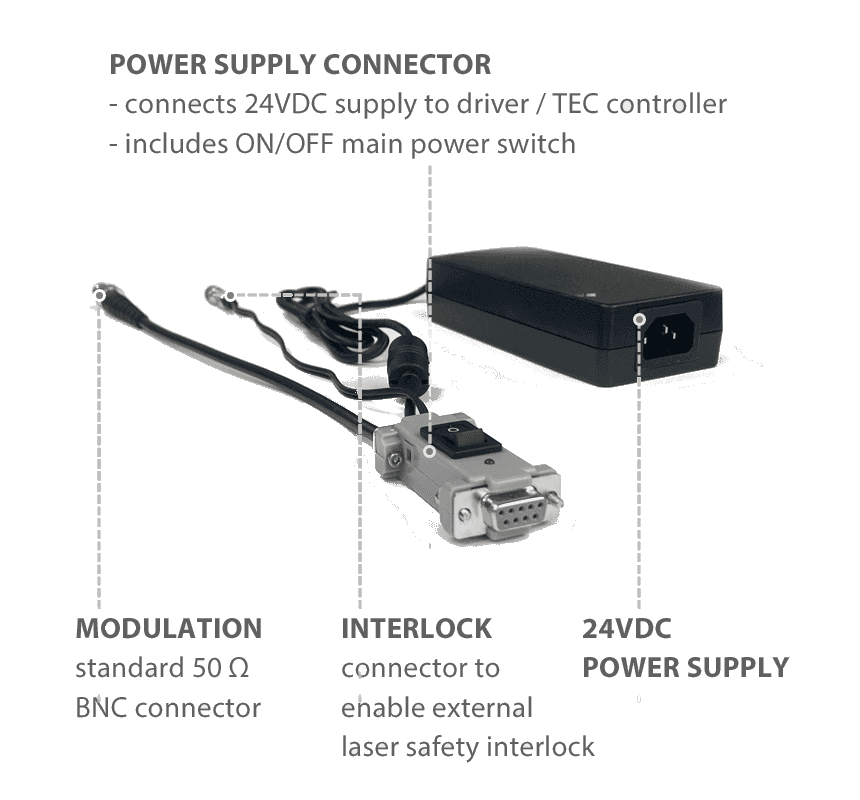

  • nt-82 24 VDC / 90 W Power Supply
  • acc-417 USB-RS232 Converter

Product Overview:

Dual-Output TEC Controller Overview

The TEC-590 dual output high power laser diode TEC controllers provide precise, simultaneous control of two Peltier coolers with independent fully programmable PID control loops. The controller is designed to deliver milli-degree temperature control stability from two separate 8 amp, 16 volt bipolar DC current outputs. One output and temperature sensor is typically used for the laser diode cooler and the second output is used to control the temperature of a crystal. Each controller has it's own feedback from a temperature sensor input.

Built-in Safety Features

The TEC-590 includes thoughtfully designed safety features to protect your laser investment.
  • Output to drive an external cooling fan, capable of supplying up to 500 mA at 24 V.
  • Leads for the laser interlock to ensure the laser driver is switched on only when it is safe to do so.

    High Speed Precision PID TEC Control Loop for Fast Temperature Settling and Milli-Degree Stability

    The TEC-590 Peltier element controllers come with preprogrammed PID control loop settings, set for optimal control of typical laser diode thermal loads. The proportional variable (gain) can be set using a simple linear scale of gain constants. In order to simplify setup and programming, the commands are prefixed with L for laser and C for crystal, respectively.

    Simple GUI Interface and Powerful Programming Tools

    All TEC control parameters and all monitoring functions are accessible through the RS-232 or the optional USB interface. The graphical user interface offers a simple dashboard for laboratory and R&D environments, while the terminal software tools suite provide fast integration of the TEC-590 into laser systems or manufacturing applications.
