Pre-Configured High Power Laser Diode Heat Sink & Mount for 1W (laser output power) to 35W Fiber-Coupled Laser Diodes
- Configured for your Laser Package & Pins

  • 50 Watt Laser Diode Heat Sink Features
  • Laser Diode Heat Sink Top View
  • Laser Diode Heat Sink Connectors

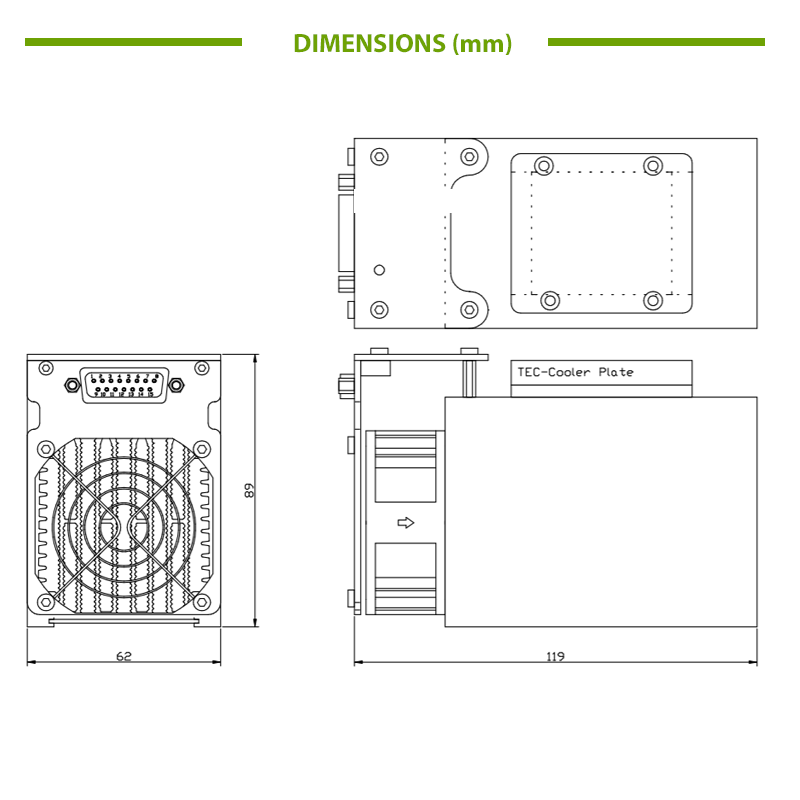

  • Laser Diode Heat Sink Dimensions

$781.00
sku / item#: LDM-50W
ships: 10 to 14 days

Key Features
  • Simply input the part # of your laser diode in the REQUEST A QUOTE field below
    - put part # in the field below email address
    - we will confirm lead time for your pre-     configured LDM-95W

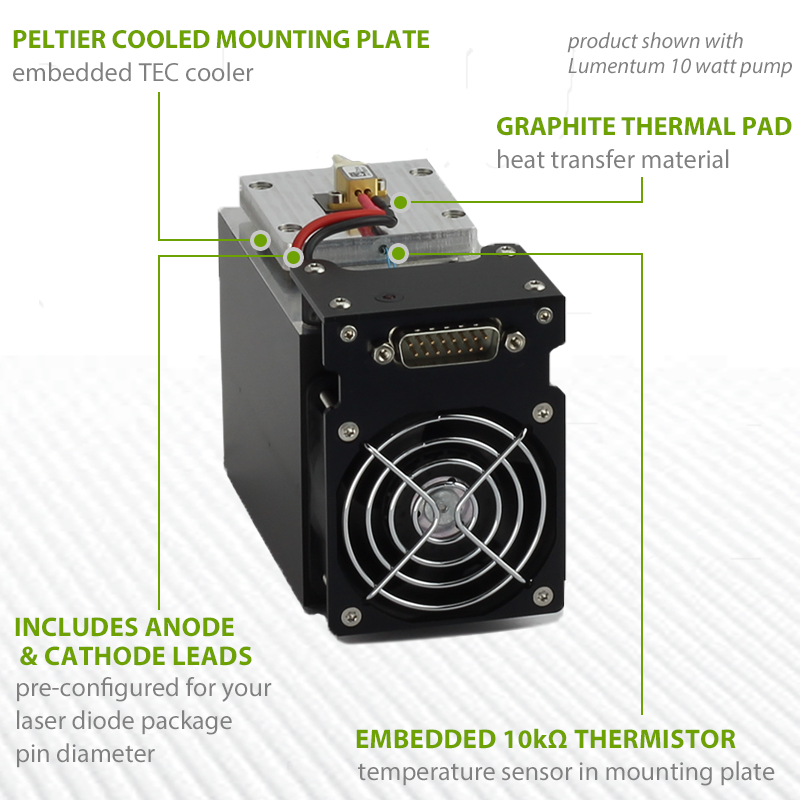

  • Laser Diode Mounting Plate Footprint and Lead Wires Pre-Configured for your Laser Diode Package; Integrated TE / Peltier Cooler Under Mounting Plate and 10 kΩ Thermistor
  • Top Mounting Plates and Configurations Available for nLight, Jenoptik, LUMICS, QPC Lasers, Lumentum, DILAS-COHERENT, BWT and Others
  • Comes with High Current Leads which Match your Laser Diode Anode/Cathode Pin Diameter and Control Signals I/O Cable for Laser Package
  • Mounting Plate Thermal Resistance R (th): < 0.06 K/W

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


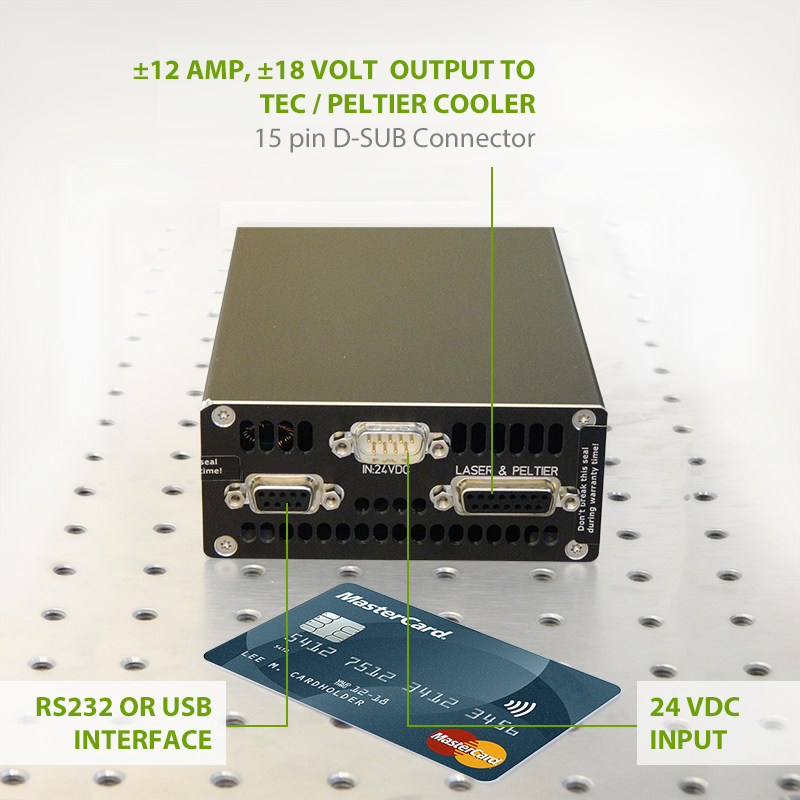

This cable is designed to interface directly to the compatible controller, and is terminated on both ends with the appropriate 15-pin D-Sub connector.

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDM-50W
PRICE $781.00
general Specifications
  • Maximum Heat Load (@ 25ºC room temp.): 52 Watts
  • Laser Diode Mounting Plate Area: 58 mm x 52 mm
  • Laser Diode Mounting Plate Material: Anodized Aluminum
  • Laser Diode Mounting Plate Surface Flatness: < 10 µm
  • Laser Diode Package Footprint (pre-drilled holes): Customer Specified
  • Graphite Thermal Pad (included): Pre-Cut to Match Laser Diode Package Footprint
  • Temperature Uniformity (typical): < 0.5 ºC Across Mounting Plate
  • Temperature Control Range (typical): 10 ºC ~ 45 ºC
  • Thermal Resistance R (th): < 0.06 K/W
INTEGRATED PELTIER COOLER and thermistor specifications
  • Peltier / TEC Current (max): 6 Amps
  • Peltier / TEC Voltage (max): 11 Volts
  • Integrated Temperature Sensor: 10 kOhm NTC
Cooling Capacity @ 25°C Ambient (room) Temperature
  • Laser Diode Set Point @ 15°C ... Waste Heat Removal 38 Watts
  • Laser Diode Set Point @ 20°C ... Waste Heat Removal 45 Watts
  • Laser Diode Set Point @ 25°C ... Waste Heat Removal 52 Watts
  • Laser Diode Set Point @ 30°C ... Waste Heat Removal 55 Watts
INTERFACE CONNECTOR
  • D-sub 15-pin
Fan for Waste Heat Removal (in heat sink base)
  • Fan Power Input (max): 12 VDC
  • Total Power Consumption: 0.9 Watts

Product Overview:

50 Watt Laser Diode Mount & Heat Sink Overview

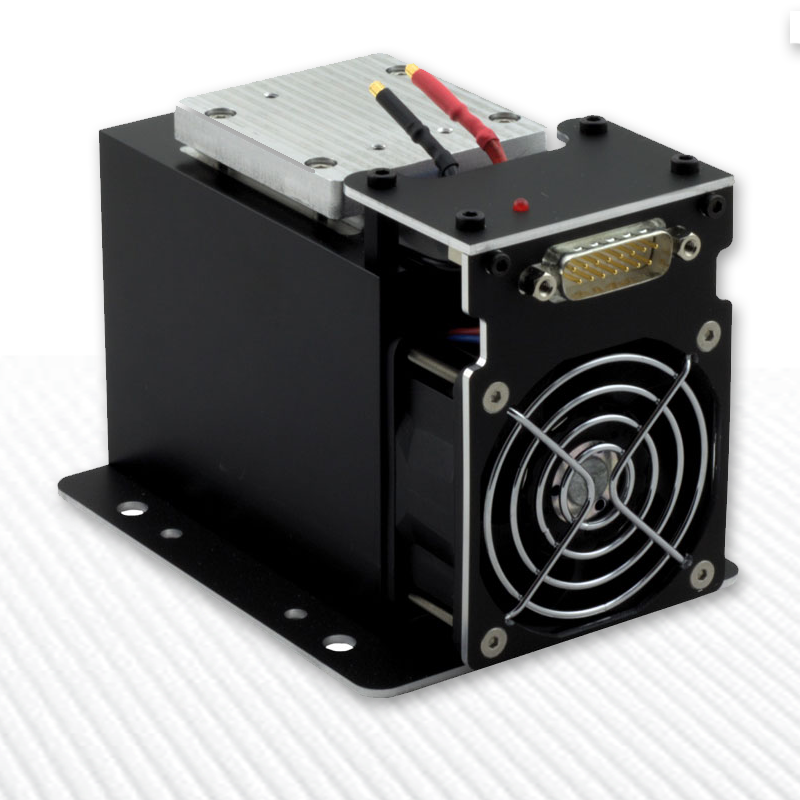

The LDM-50W is an actively cooled heat sink which utilizes a Peltier TEC element embedded beneath the laser mounting plate as well as a fan in the base of the cooling block. The heat from the laser diode is pumped through the TEC to the heatsink at the base of the cooling block. The fan located in the base dissipates the heat from the base of the cooling block.

These Peltier / TEC-cooled mounts provide high performance heat removal and temperature stabilization for the pump laser diode. Standard mounting plates are available for most fiber coupled package styles, and custom plates are available.

Mount & Heatsink Features

The heat sink and mounting modules offer a temperature control range of +10 °C to 45 °C and can dissipate up to 52 watts of waste heat at a lab temperature of 25 °C.

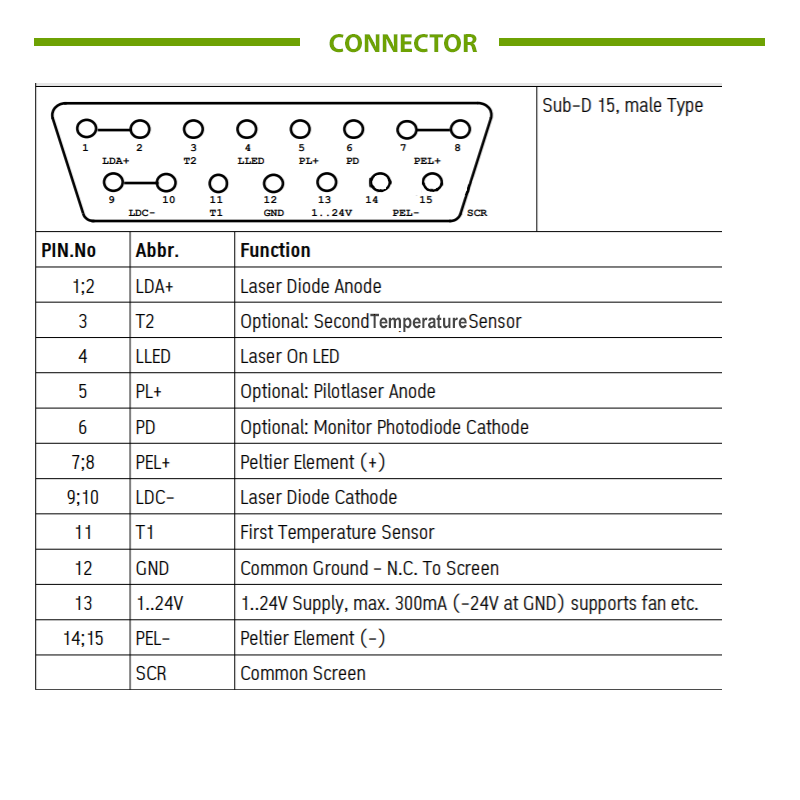

The mount includes a 15-pin D-Sub connector, wired for the built-in TEC, temperature sensor, and the fan in the base. The connector also includes pre-wired Anode and Cathode leads for the laser package.

Mount & Heatsink Thermal Conductivity

The LDM-50W offers a low thermal impedance of < 0.06 K/W.

The surface of the mounting plate is machined with micron level surface flatness and finish tolerances. These units ship with a graphite thermal mounting pad which can be placed under the laser to increase thermal conductivity to the mounting plate. The graphite pad is slightly flexible so that small particulates or dust don't inhibit the thermal conductivity path. These features combine to provide a very low thermal resistance between the laser and the TEC controlled mounting plate.
