Pre-Configured Control System for Lumics LuOcean Series High Power Fiber-Coupled Laser Diodes

  • master-front-panel-image-laser-diode-driver-and-tec-controller-ostech-4-4-2
  • Laser Controller Software GUI

$3895.00
sku / item#: LDX-212 / LuOcean / Mini4
ships: Request a Quote for Current Ship Date

Key Features
  • All-Inclusive Control System for High Power Fiber-Coupled Laser Diodes
  • Includes Current & TEC Controller + Mount + Cables
  • 18 Amp Current Source
  • 128 Watt TEC Controller
  • Pre-Wired Laser Diode Heat Sink / Mount

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDX-212 / LuOcean / Mini4
PRICE $3895.00
LASER DIODE CURRENT OUTPUT
  • Laser Diode Current Range: 0.00 - 18.00 mA
  • Compliance Voltage Range: 8 Volts
  • Current Noise & Ripple (rms): < ± 0.5% of Full Scale Current
  • Current Setpoint Resolution: 5 mA
  • Current Stability (4 hours): ≤ 150 ppm (@ full scale)
  • Current Setpoint Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 4,000 μA
  • Photodiode Measurement Accuracy: < +/- 1.0%
  • Current Limit Setpoint Accuracy: ± 2%
  • Current Measurement Accuracy: ± 0.5%
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds
  • Current Limit and Voltage Limit
  • Temperature Limits (Upper and Lower)
  • Open Circuit Detection Short Circuit when Laser Diode Current Turned OFF
  • Temperature Limits (Upper and Lower)
  • ESD and Power Surge Clamp
  • AC Line Filte
  • Interlock Shut-Off
  • Soft-Start Current Ramp to Setpoint (User Programmable)
TEC TEMPERATURE CONTROLLER
  • TEC Output Power Total: 128 Watts
  • TEC Output Current Range (bipolar): ± 8.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 16.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • TEC Output Stability: ± 0.01°C (subject to ambient temp. stability)
  • Temperature Range: 15°C to 35°C
  • TEC Control Output: Bipolar (Cool and Heat)
MODULATION & PULSING (QCW) MODE OF OPERATION
  • Pulse Width Range: < 25μs, 10%-90%
  • Pulse Repetition Rate Range: DC ~ 50 kHz
  • Pulse from Internal Function Generator or External Trigger
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
USER INTERFACE and General Specifications
  • Front Panel: Alphanumeric LCD
  • USB: Optional (additional $95.00)
  • RS-232: Standard
  • LabVIEW Drivers Included
  • Input Power: Universal 110V~230VAC, 50/60 Hz
Heat Sink / Mount and Connecting Cable Specifications
  • Mounting Plate Package Style Configuration: LuOcean Mini4
  • Mounting Plate Material: Nickel Plated Aluminum
  • Heat Sink Capacity: 95 Watts Waste Heat

Product Overview:

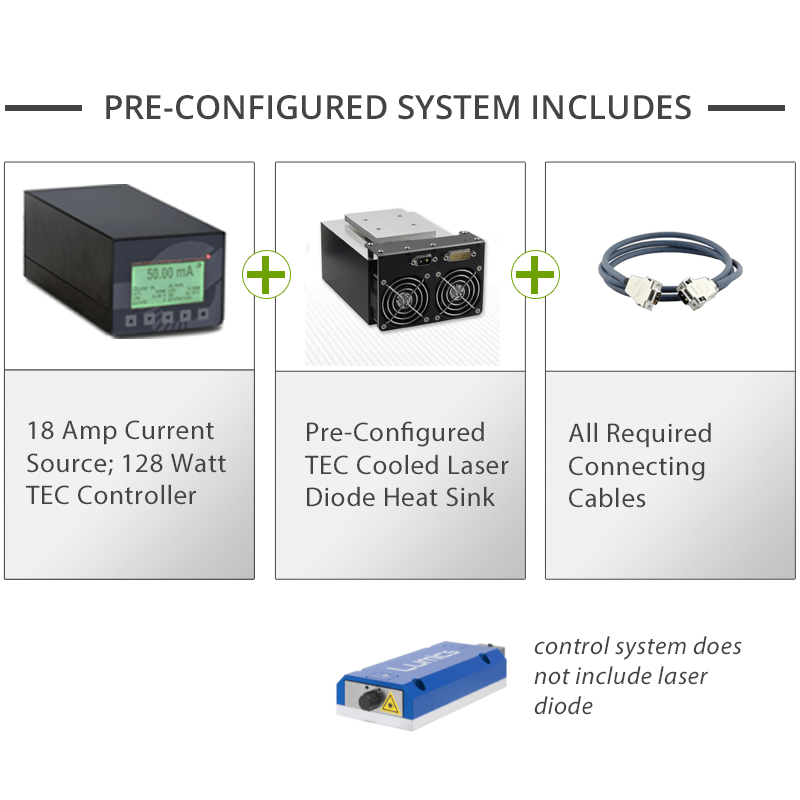

Laser Diode Control System for Lumics LuOcean Series Modules: Driver + TEC Controller + Mount & Cables

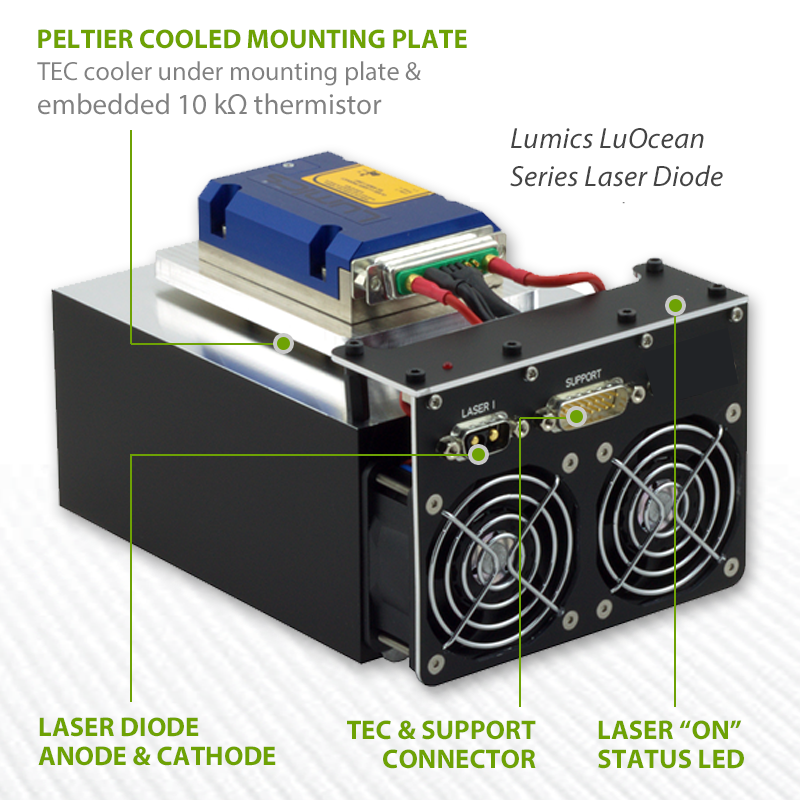

These pre-configured control systems are designed and configured for turn-key control of Lumics LuOcean series fiber-coupled laser diodes with laser output power in the range of 10 to 50 watts. The system includes a precision current source, a full PID temperature controller, an TEC and fan cooled heat sink and all of the required connecting cables. The current source offers industry leading protection for your laser diode. The mounting socket and heat sink offer a high performance, pre-configured mounting solution for a butterfly package. This system is an affordable, high performance solution for safely powering your laser and running at a stable temperature in laboratory environments.

Laser Diode Protection Features

These units offer the highest level laser diode protection available to ensure that your device under test is protected at all times. Soft-start current, current and temperature limits, and a fast shut-down sequence keep your device protected at all times. Additionally, transient filters and AC line filters protect the laser against brown-out or black-out power conditions. The precision TEC controller offers a full P.I.D. control loop for fast and efficient thermal stabilization. A back-panel safety interlock connector ensures that the laser diode current is not switched on until the user has determined it is safe to do so.

TEC Temperature Controller Features

The full PID loop provides millidegree temperature stability, and can quickly stabilize high heat loads to the temperature set-point to reduce the risk of damage to your laser. User adjustable upper and lower temperature limits can be programmed to protect the laser diode.

Modulation, Internal Function Generator, and QCW Pulse Modes

In addition to CW (continuous wave) mode of operation, the laser diode controller offers flexible modulation capabilities and a QCW mode. The rear panel of the controller has a BNC input for an analog or TTL digital modulation input with a 10k Ω input impedance. The controller has an internal function generator which can be used to set the quasi-CW pulses. In QCW mode, the user can also set the 100μs to CW pulses from a remote TTL signal source.

Intuitive Front Panel User Interface

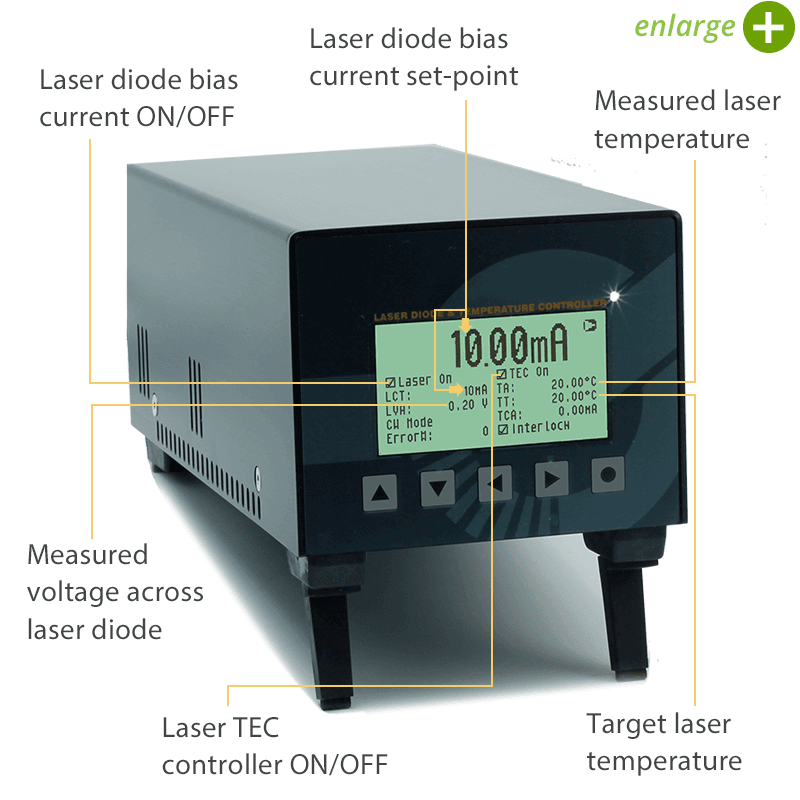

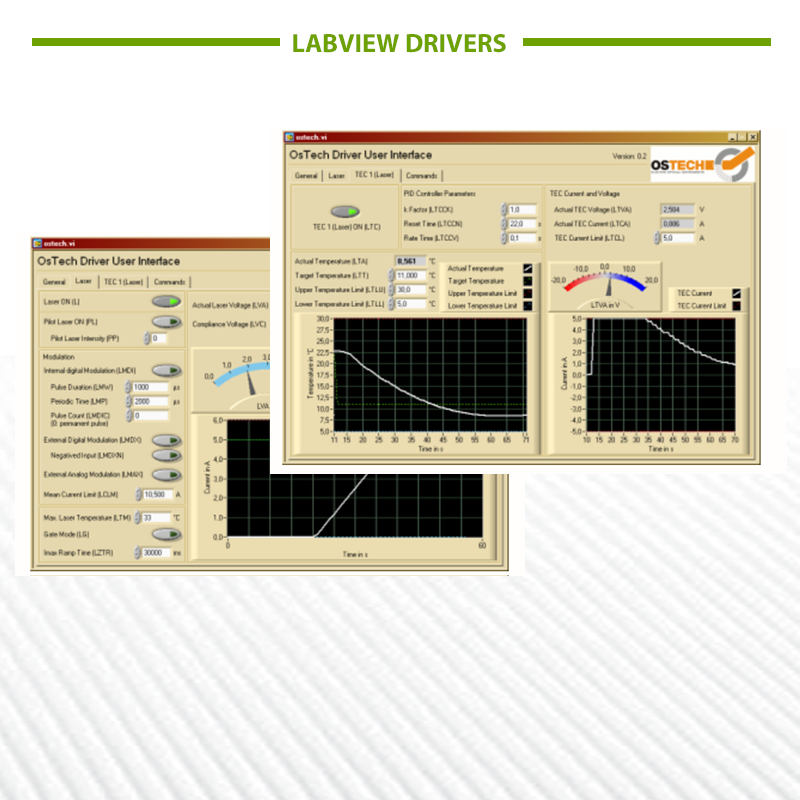

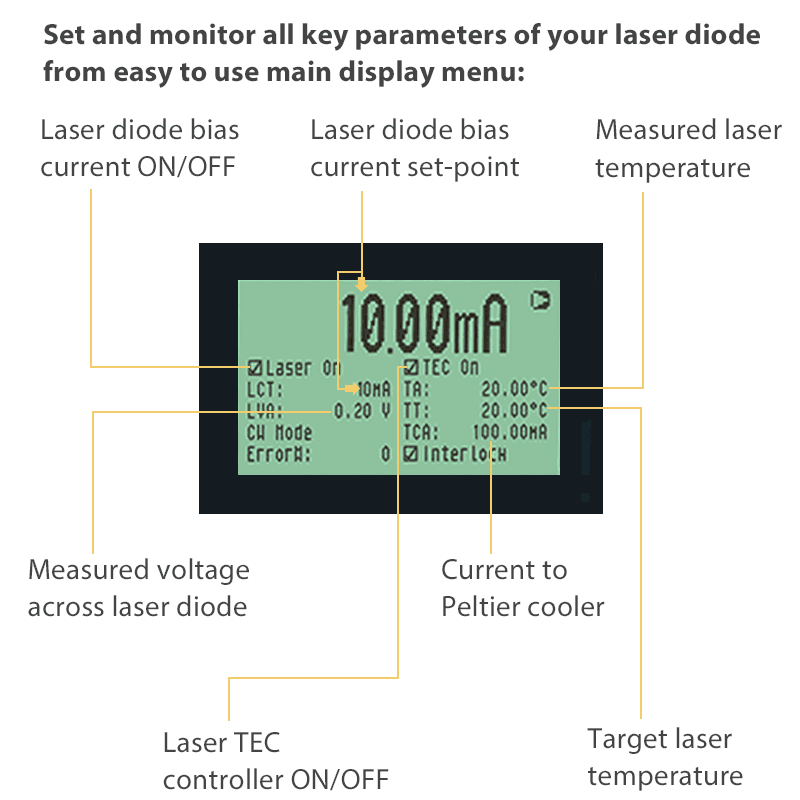

The user also complete control of all laser diode bias and temperature control parameters through an intuitive front panel menu. The front panel has an LCD display with a key pad. For remote control, these systems come with a standard RS-232 interface and can be ordered with an optional USB interface. The LabView GUI (included) makes set-up and control of the system fast and simple.
