Pre-Configured HHL Packaged Laser Diode Control System; All-Inclusive with 8 Amp Current Source, 128 Watt TEC Controller and Laser Diode Mount

  • Laser Diode Controller Rear Panel
  • LDC rear panel connectors
  • LabView Drivers for Laser Diode Controllers
  • HHL Laser Diode Controller with TEC

sku / item#: LDC-950X
ships: Request a Quote for Current Ship Date

Key Features
  • Configured for Fiber-Coupled HHL Packages; All-Inclusive Control System
  • Current & TEC Controller + Cooled Mount + Cables
  • Precision 8 Amp Laser Driver, 128W TEC Controller, Laser Diode Mount
  • RS232 Interface with LabVIEW Drivers; USB Optional

Price and Delivery Quote

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $3595.00
  • Output Current Range: 0.00 - 8.00 Amps
  • Compliance Voltage Range (max): 20.00 Volts
  • Current Noise & Ripple (rms): < 1% of Full Scale Current
  • Current Setpoint Resolution: 2.0 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 100 ppm (@ full scale)
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 4000 μA
  • Soft-Start Current Ramp to Setpoint (User Programmable)
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds
  • Current Limit
  • Temperature Limits (Upper and Lower)
  • Open Circuit Detection
  • Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp
  • Reverse Voltage Transient Clamp
  • Factory Pre-Set Default Upper Temperature Limit: 35°C
  • AC Line Filter
  • Rear Panel Keylock Switch and Safety Interlock
  • TEC Output Power Total: 128 Watts
  • TEC Output Current Range (bipolar): ± 8.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 16.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • TEC Output Stability: ± 0.01°C (subject to ambient temp. stability)
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
  • Cooling Method: TEC-Peltier Cooler, Fan for Waste Heat Removal
  • TEC Rating (max): 9 Amps, 17 Volts
  • Heat Sink Thermal Load Maximum: 38 Watts (@25ºC)
  • Fan Rated Input Voltage 24 VDC (supplied by controller)
  • Fan Rated Input Current: 300 mA (supplied by controller)
  • Mounting Plate Material: Anodized Aluminum
  • Mounting Plate Area: 105 mm x 75mm
  • Mounting Plate Hole Footprint: 11-Pin Fiber-Coupled HHL
  • Electrical Connector to Controller: DSUB, 15-pin
  • System Includes 1 x 1.5 meter Current Interface Cable (50A rated)
  • System Includes 1 x 1.5 meter TEC Control Interface Cable (20A rated)
  • QCW Pulse Width Rise Time: 15 μs
  • Pulse Time Base Accuracy: ± 1.0%
  • QCW MODE 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW MODE 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • MODULATION Input (BNC): Digital (TTL) or Analog
  • MODULATION BNC Input Impedance: 10K ohm
  • ---------------------------------------------------------------------------------------------
  • MODULATION Input Voltage Range: 0 ~ 4 Volts (4V = Max Current
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
  • RS232 Standard, LabView Drivers Included
  • USB Optional: $95.00 (Option SVC-USB)
  • Power Input: Universal 90 ~ 230 VAC, 50/60 Hz
  • System Weight (total): ~ 10 kg
  • Controller Dimensions: 200mm x 105mm x 85mm

Product Overview:

Laser Diode Control System: 8 Amp Current Source, 128 Watt TEC Controller, Cooled Mount & Cables

This all-inclusive control electronics and mounting system was designed and configured for fiber-coupled HHL packaged laser diodes in the 1 Watt to 5 Watt range. This system offers a convenient, affordable solution for laboratory R&D applications. The LDC-950X offers precise control of the 8 amp bias drive current to the laser in CW mode, and includes Quasi-CW mode functions. The current can be modulated by a digital or analog input signal, and the controller includes an on-board pulse generator for QCW pulses. These control systems are also available to ship pre-configured and pre-tested with your laser diode module. Contact us for more details.

Laser Diode Protection Features

These units offer the highest level laser diode protection available to ensure that your device under test is protected at all times. Soft-start current, current and temperature limits, and a fast shut-down sequence keep your device protected at all times. Additionally, transient filters and AC line filters protect the laser against brown-out or black-out power conditions. The precision TEC controller offers a full P.I.D. control loop for fast and efficient thermal stabilization. A back-panel safety interlock connector ensures that the laser diode current is not switched on until the user has determined it is safe to do so.

TEC Cooled Heat Sink and Mounting Plate

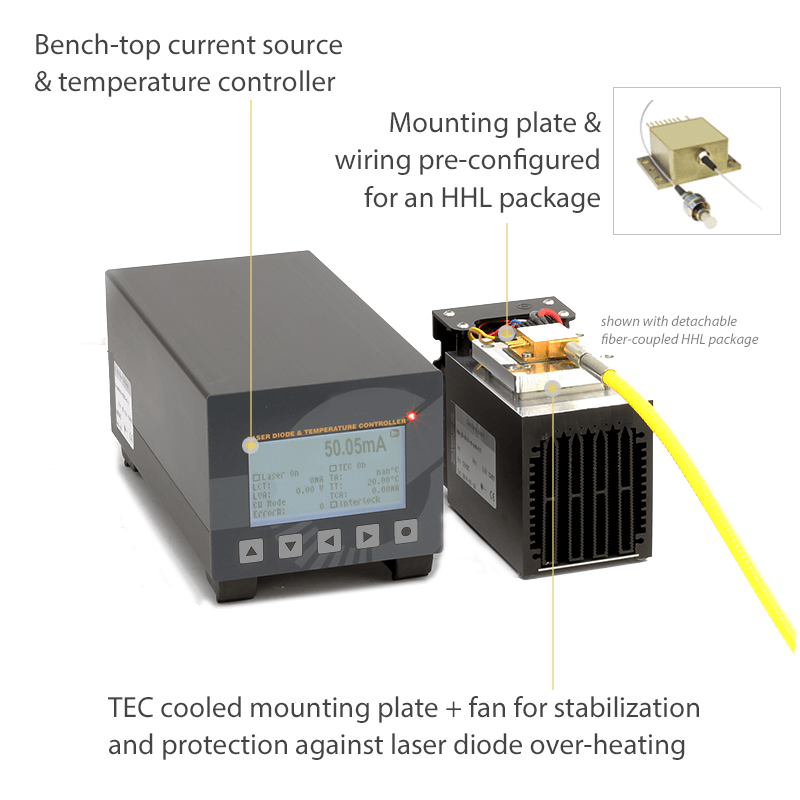

The LDC-X controller unit has an integrated TEC controller to drive the Peltier element embedded below the mounting plate. The Peltier cooler works with the heat sink fan to to provide fast heat removal and stable temperature control. The anodized aluminum mount surface is machined with high surface flatness and finish to ensure the best thermal performance. The mounting plate ships with a graphite thermal pad the maximize heat dissipation and remove the potential for any air gaps between the laser diode package and the mount surface.

Mounting plates are available for free space and fiber coupled lasers. Standard mounting hole footprint patterns are available for most fiber coupled package styles. Custom mounting hole patterns are available on request. Email us your laser's data sheet and we will send you a quote with the correct mounting plate option part number.

User Control through Front Panel, RS232 or USB

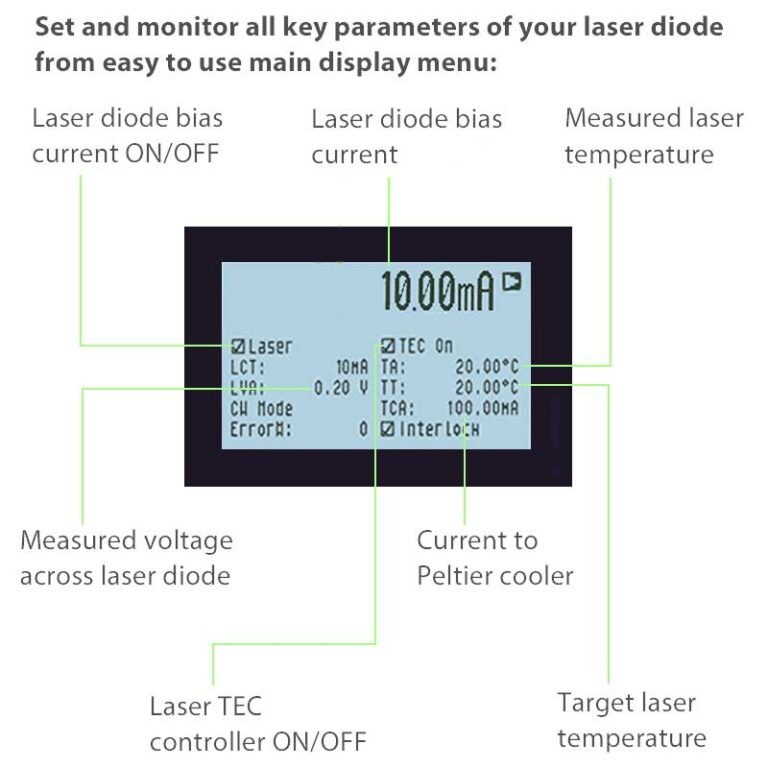

The user has complete control by using the intuitive front panel LCD display and key pad through a simple menu structure. These systems also come with a standard RS-232 and an optional USB interface, and Labview drivers are included.
