60 Amp High Power Laser Diode Driver, CW and QCW Modes

  • laser diode driver top view
  • 60 Amp High Power Laser Diode Driver, CW and QCW Modes

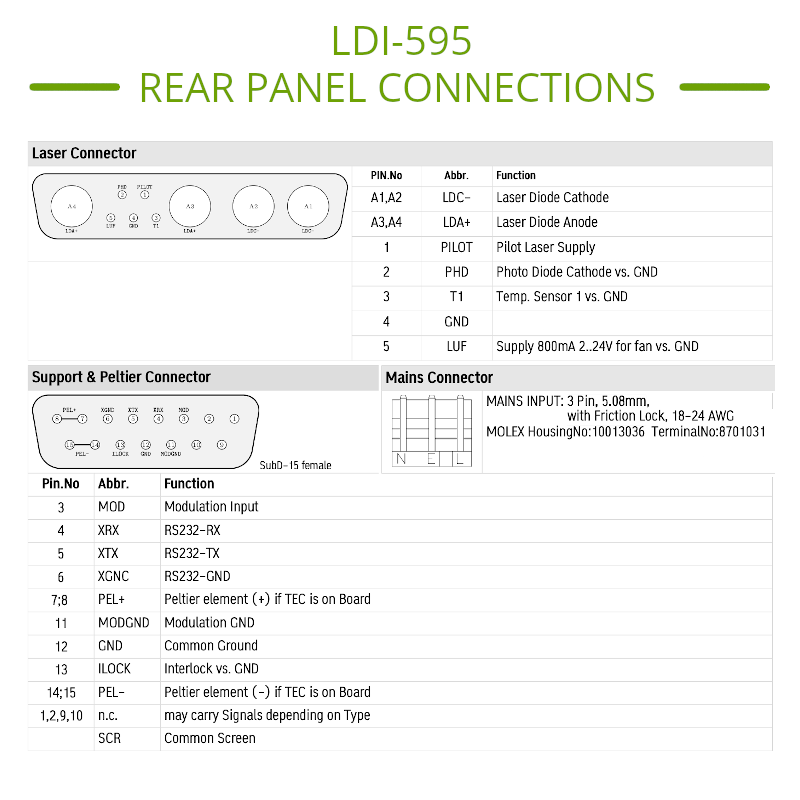

  • 60A Laser Diode Driver Pinout

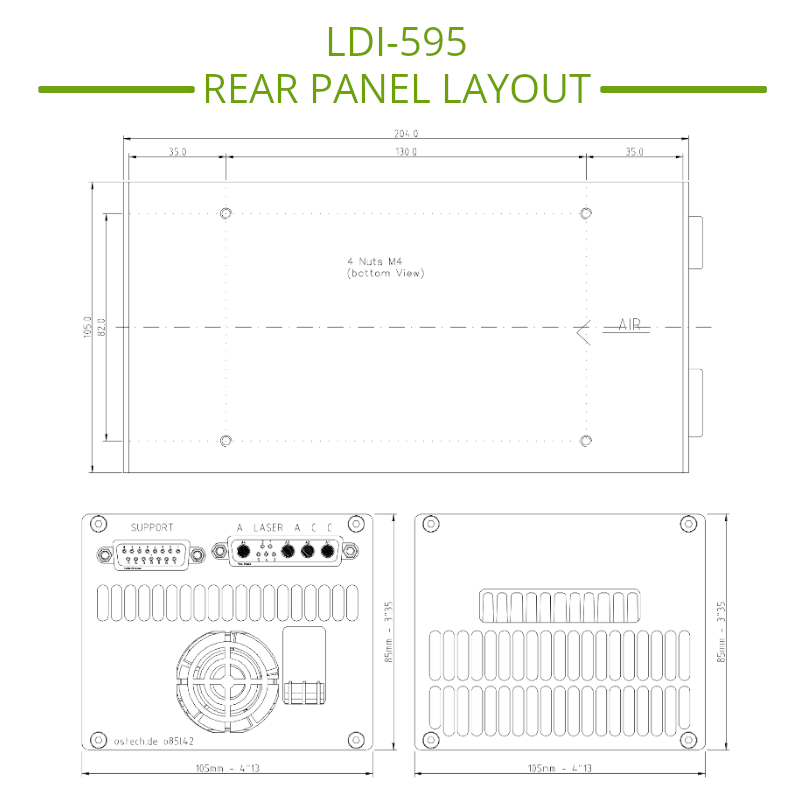

  • 60A 12V High Power Laser Diode Driver Dimensions
  • labview drivers master low power controller

$2095.00
sku / item#: LDI-595
ships: 14 to 18 days

Key Features
  • 60 Amp (CW), 12 Volt High Power Laser Diode Driver
  • CW and QCW Modes
  • Integrated QCW Pulse Generator: Pulse Widths 25μs to CW
  • Operates from Universal 110~230 VAC, 50/60 Hz

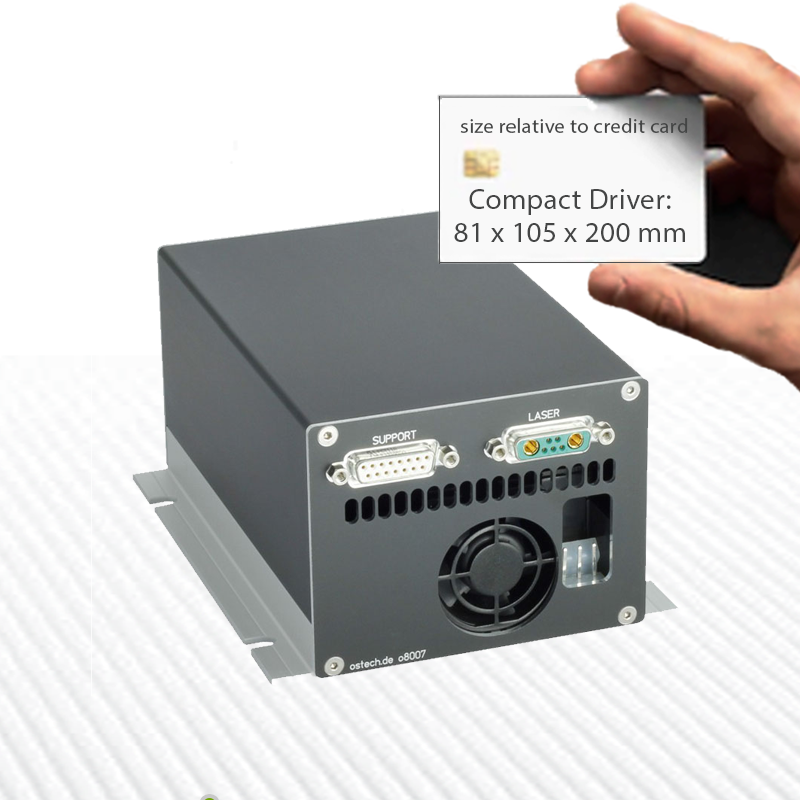

  • Compact Enclosure: 105 x 81 x 200mm
  • RS232 Interface with LabVIEW Drivers; Optional USB Interface available
  • Previously Sold as PN: LDC-161
Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).

This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDI-595
PRICE $2095.00
LASER DIODE DRIVER CURRENT OUTPUT
  • Output Current Range: 0.00 - 60.00 Amps
  • Compliance Voltage Range: 0.12 -12.00 Volts
  • Current Noise & Ripple (rms): < 1% of full scale current
  • Current Setpoint Resolution: 15 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 100 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA

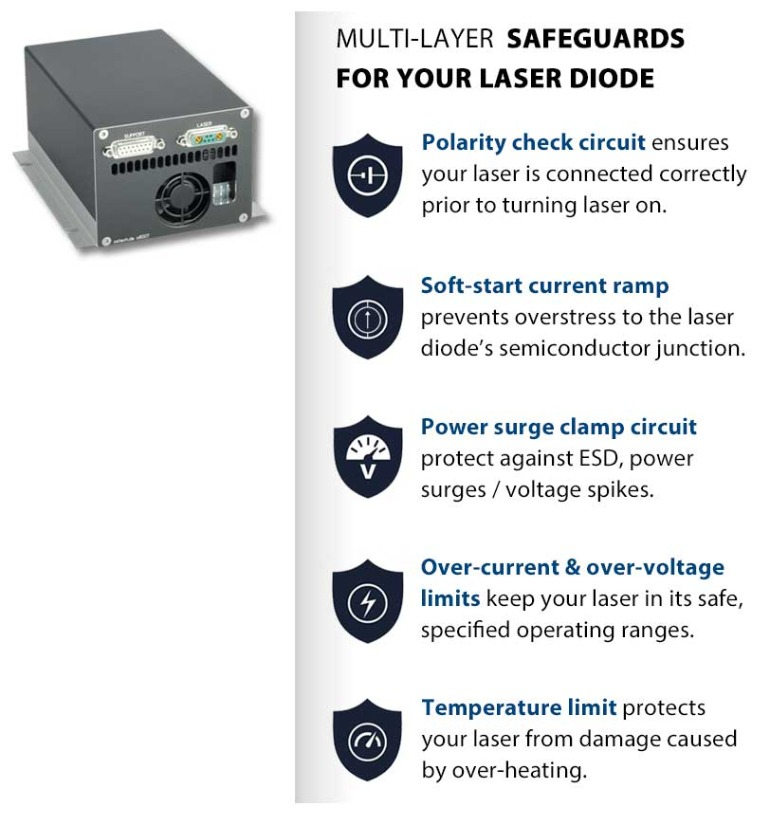

INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp to Setpoint (User Programmable)
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds
  • User-Programmable Current Limit
  • Open Circuit Detection
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Short Circuit when Laser Diode Current Turned OFF
  • Temperature Limits (Upper and Lower)
  • Safety Interlock Connection
QCW PULSE MODE AND MODULATION
  • Pulse Rise / Fall Time: < 25μs, 10%-90%
  • Integrated QCW Pulse Generator, Also Accepts External Trigger for QCW Pulses
  • QCW Mode 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW Mode 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
auxiliary functions
  • Temperature Sensor Input: 10kΩ NTC Thermistor
  • Photodiode Cathode (Analog Connected to Gnd)
  • Pilot Laser Anode, vs. Ground: (4 - 5V, 150 mA)
  • Modulation Input
  • Electronic Safety Interlock
  • RS232 Connections
  • External Fan Control Circuit, 2 - 24V, 800mA (max)
USER INTERFACE AND CONNECTORS
  • RS232 Standard (USB Adapter Optional - Price $125.00)
  • LabView Drivers Included
  • Laser Diode Anode / Cathode Output Connector: DB-9W4, Female
  • Support and Peltier Connector: SubD-15, Female
  • Main Power Connector: MOLEX Housing 10013036; Terminal 8701031
DIMENSIONS AND power INPUT
  • Power Input: Universal 90V ~ 230 VAC, 50/60 Hz
  • Dimensions: 85 mm (H) x 105 mm (W) x 200 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable

Product Overview:

60 Amp High Power Driver Overview

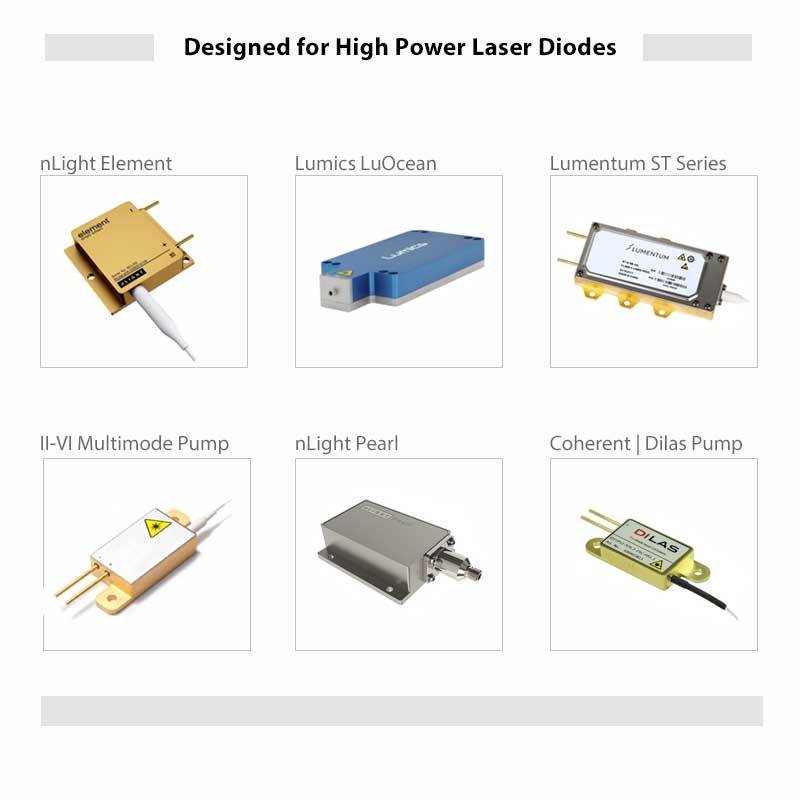

The LDI-595 high power laser diode driver offers a maximum output of up to 700 Watts (60 Amps @ 12 Volts) and can operate in constant current CW or pulsed Quasi-CW mode. They are typically used to drive high power multi-mode lasers in the 808 nm through 980 nm range for pumping applications.

These units feature a high efficiency design with high reliability components to offer long-life operation, and are integrated into industrial lasers systems used in harsh environments as well as laboratory R&D applications.

Laser Driver Features

These drivers feature a user programmable soft-start ramp of the laser diode bias current. The factory sets the ramp time to 300 milliseconds as the default. This current ramp-up and ramp-down function is designed to protect the laser from thermal shock during power-up and power-down sequences.

Laser Driver Control Interface

The LDI-595 features an RS232 interface and includes LabView drivers. An optional USB digital interface is available; inquire for details on ordering the USB control option.

Controller Power Interface

The LDI-595 has AC line filters and a fast response to shunt the current in the event of an open-circuit. The driver utilizes a high current connector, and a low impedance copper cable can be purchased with these units to optimize the QCW pulse mode of performance. The low impedance cable option is highly recommended for high power pulsing applications to achieve the shortest possible rise and fall times.

Protection Features for High Voltage Laser Diodes: The driver includes laser diode protection features such as current limit, soft start current ramp, and power surge filters to make sure that your laser diodes are protected at all times.

Please contact us for more information on cables and other accessories available.
