Condor HC5-6-OV-A+G Linear Power Supply
Low-Noise for Powering Laser Diode Drivers

$145.00
sku / item#: RLS / HC5-6-OV-A+G
ships: In-Stock (USA) -- Quantity Available: 1

Key Features
  • Low Noise Linear Power Supply
  • Universal AC Power Input
Manufacturer/Seller, Shipping & Warranty Information

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS / HC5-6-OV-A+G
PRICE $145.00
General Specifications
  • Output Voltage: 5 VDC
  • Output Current: Up to 6 Amps
  • Output Ripple (p-p): 3 mV + 0.05% of output voltage
  • Transient Response: <50 µs for 50% load change
  • Stability: ±0.05% for 24h after warmup
  • Temperature Rating: 0 to 50°C full rated, derated linearly to 40% at 70°C
  • Temperature Coefficient: ±0.01%/°C maximum
  • Efficiency: 45%
  • Storage Temperature: -40ºC to +85°C
  • Size: 143 mm (l) x 173.85 mm (w) x 65.5 mm (h)
Safety Features
  • Short Circuit Protection: Automatic current limit/foldback
  • Overvoltage Protection: set at 6.2 V ±0.4 V

Product Overview:

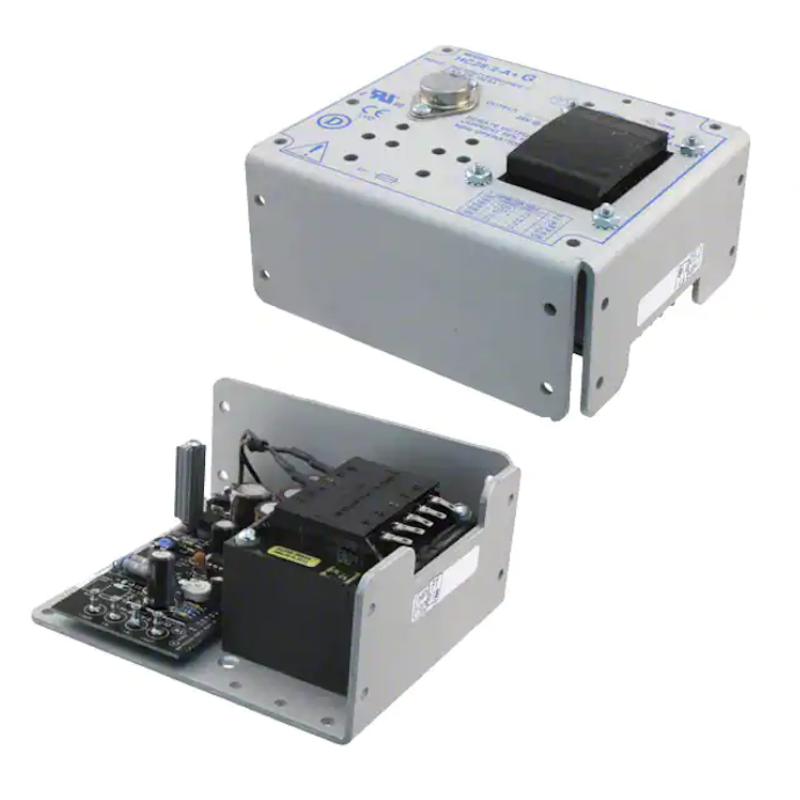

Condor HC5-6-OV-A+G Linear Power Supply

This compact linear power supply is a reliable low-cost power supply delivering low noise output up to 6 Amps. Universal AC input make this power supply ideal for a wide range of applications, from the laboratory to fully integrated production systems.
