Rack-Mount Advanced Performance TEC Controller System; Integrated Meerstetter Engineering TEC-1123-HV (±16 A / ±30 V) TEC Controller Modules in LTR-1200 Chassis

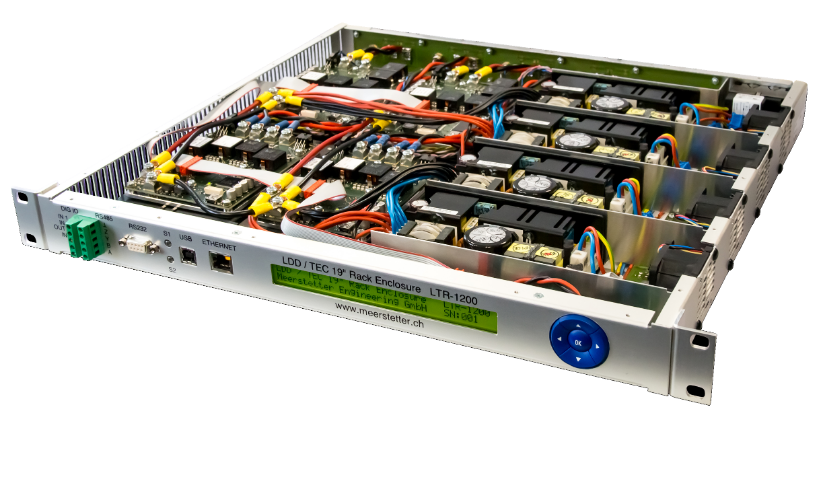

  • 480 Dual TEC Controller Rackmount Inside Image

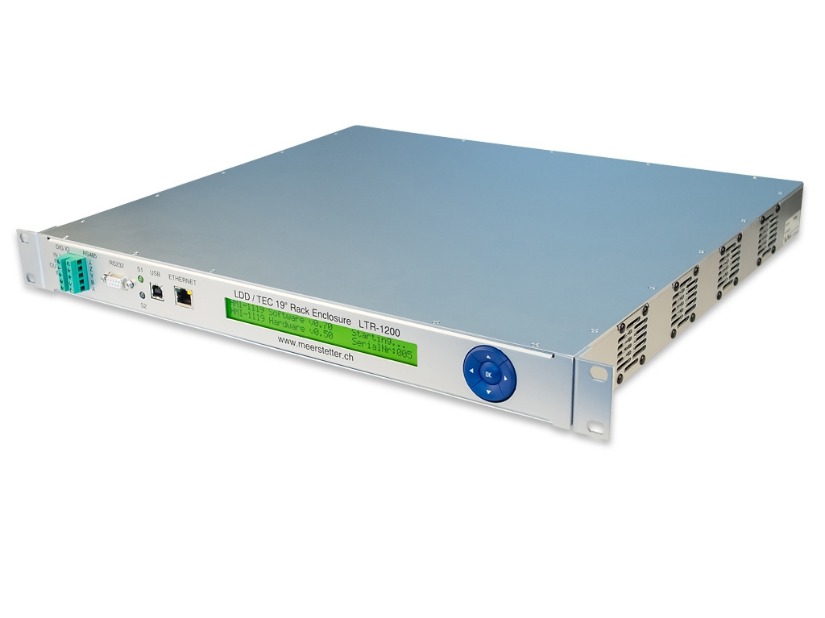

  • 480 Dual TEC Controller Rackmount

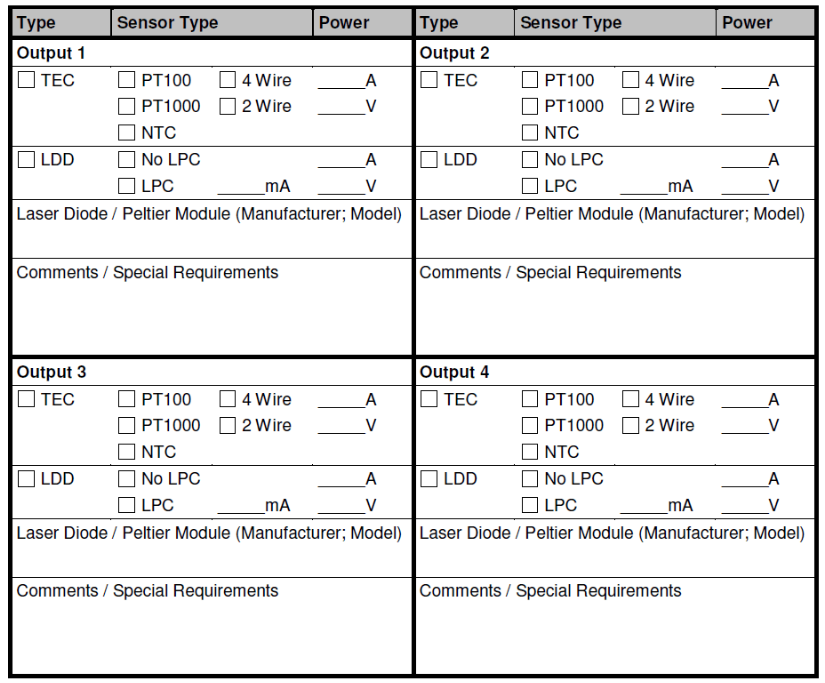

  • 480 Dual TEC Controller Quote Request

Request Quote
sku / item#: LTR-1200 / TEC-1123-HV
ships: Request a Quote for Current Ship Date

Key Features
  • Includes Model TEC-1123-HV (±16 A / ±30 V) Dual Output TEC Controller Modules & Integrated Power Supplies & Temperature Sensor Cable
  • Comprehensive safety and error management, intelligent fan control
  • Highly configurable mainframe
  • Suited for laboratory, production and test field environments
  • Offered by Meerstetter Engineering GmbH, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeControl.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LTR-1200 / TEC-1123-HV
PRICE Request Price
GENERAL SPECIFICATIONS
  • TEC-1123-HV (integrated module) TEC Output Current: 0 to ±16 A
  • TEC-1123-HV (integrated module) TEC Output Voltage: 0 to ±30 V
  • Data interfaces: RS485, RS232, USB, Ethernet (galvanically isolated >1kV)
  • Digital I/O lines: 3 digital inputs, 1 digital output (galvanically isolated >1kV)
  • Front Panel Interface: Backlit 2x40 character display, 5-way navigation switch
  • Dimensions: 19’’ rack, 1 height unit, 400 mm in depth

Product Overview:

LTR-1200 Chassis with 240W Dual Output TEC Controller Modules

The LTR-1200 is a highly configurable, ready-made carrier system facilitating the integration of LDD and TEC Family OEM devices into standard 19" racks or their use as stand-alone table-top instruments. Modular power supplies, intelligent air cooling and galvanically isolated communication options allow Meerstetter Engineering to compose and provide customer-specific turnkey solutions. Full configuration and control of all internal devices are available over 'MeCom' remote communcation protocol and LDD/TEC Service Software. Basic parameter control and systems status information are available over the LTR-1200's front panel display and 5-way navigation switch, allowing for autonomous stand-alone operatio
