22 Amp Turn-Key Control System for Eagleyard Photonics CDL and FLW Lasers

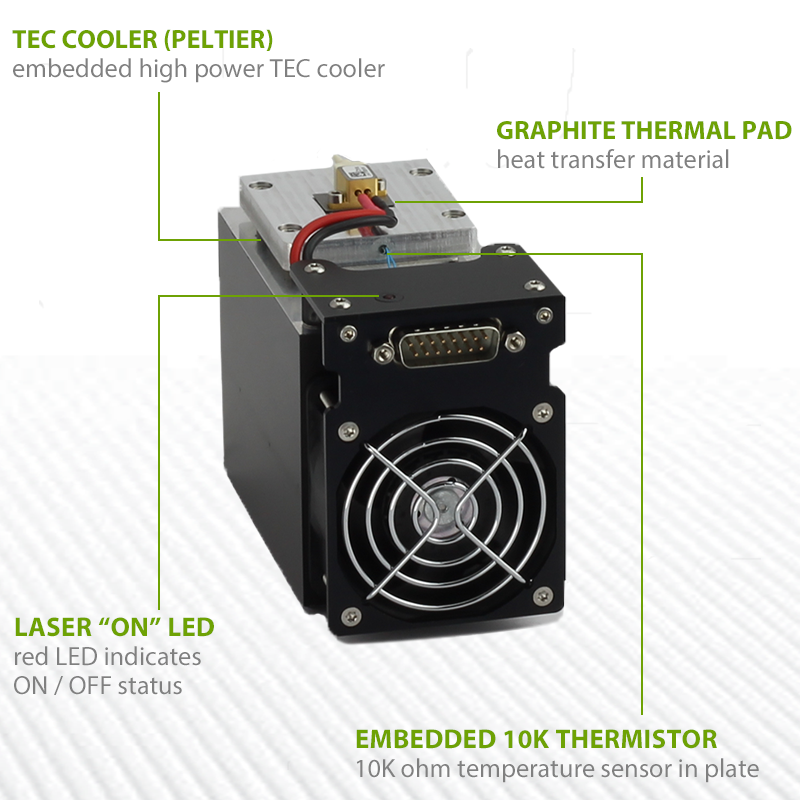

  • Heat Sink for Laser Diodes 50W

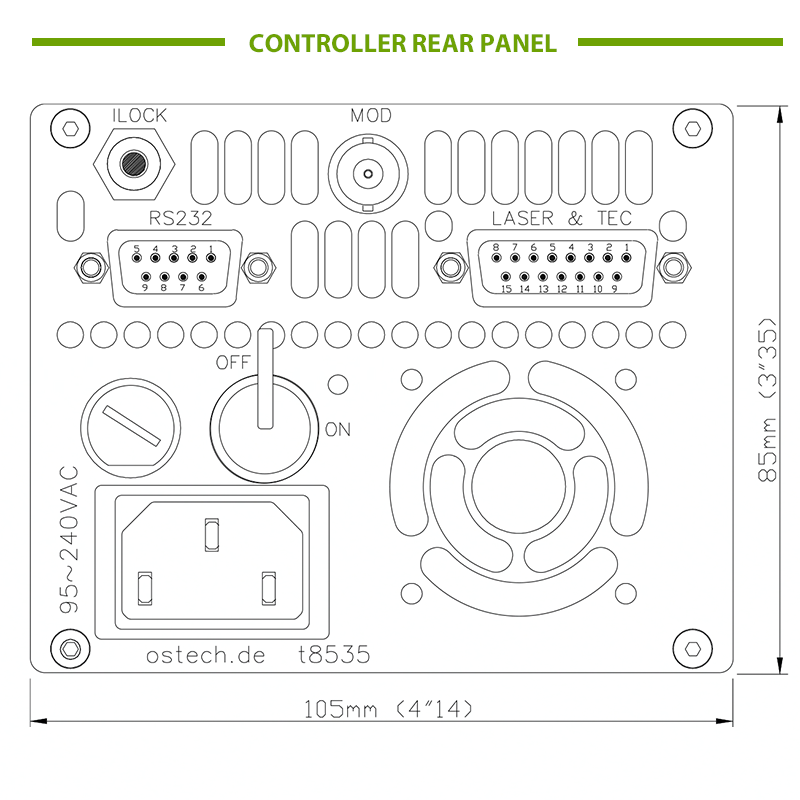

  • Rear Panel Diagram of Laser Diode Controller

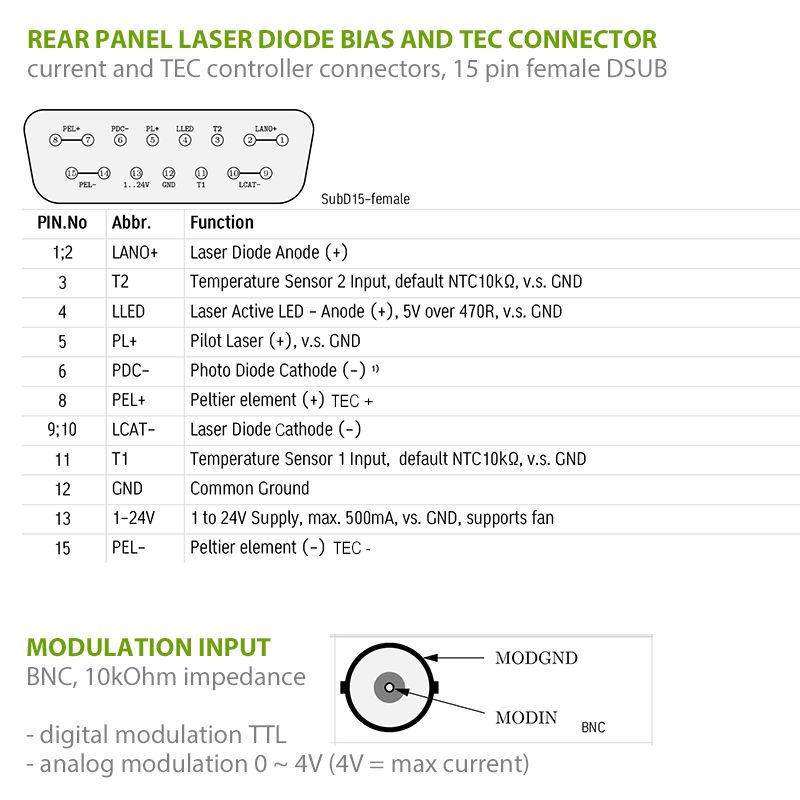

  • laser diode controller rear panel connector view

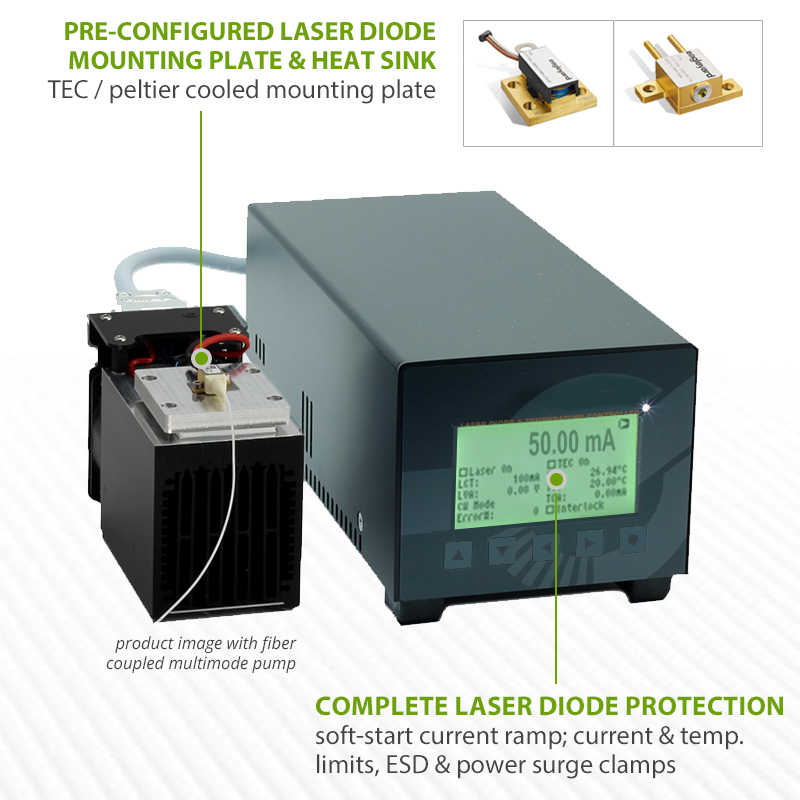

  • Eagleyard Photonics Laser Diode Controller

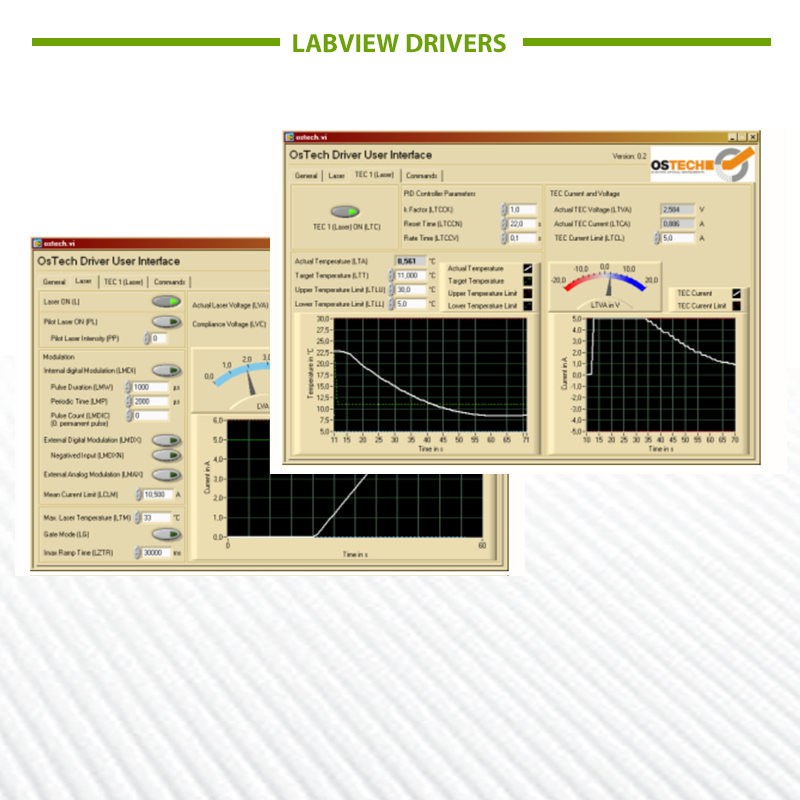

  • laser diode controller labview drivers

sku / item#: RLS/EP-LDC-500X
ships: Request a Quote for Current Ship Date

Key Features
  • Pre-Configured for Eagleyard Photonics CDL Flat-Pack Style Packaged Multimode Laser Diodes:
    • EYP-BAL-xxxx-xxxxx-xxxx-CDLxx-xxxx
    • EYP-BAL-xxxx-xxxxx-xxxx-FLWxx-xxxx (2-pin type)
  • Current & TEC Controller + Cooled Mount + Cables
  • 22 Amp Current Source
  • 128 Watt TEC / Peltier Temperature Controller
  • 50 Watt Actively Cooled Laser Mount

Price and Delivery Quote

Buy Now / Add to Cart

Technical Questions for this Product


Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

PRICE $4245.00
laser diode CURRENT SOURCE
  • Output Current Range: 0.00 - 22.00 Amps
  • Compliance Voltage Range: 6.00 Volts
  • Current Noise & Ripple (rms): < 1% of Full Scale Current
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 100 ppm (@ full scale)
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
  • TEC Output Power Total: 128 Watts
  • TEC Output Current Range (bipolar): ± 8.00 Amps
  • TEC Output Voltage Range (bipolar) : ± 16.00 Volts
  • Temperature Sensor Inputs: 10 kΩ Thermistor, NTC, PT100, PT1000
  • TEC Control Loop Algorithm: Full P.I.D.
  • P.I.D. Variables: User Adjustable to Optimize Temp. Settling Speed
  • TEC Setpoint Resolution: 0.01°C
  • TEC Output Stability: ± 0.01°C (subject to ambient temp. stability)
  • Temperature Range: -25°C to 150°C
  • Factory Set Default Lower Temperature Limit: 5°C
  • Factory Set Default Upper Temperature Limit: 35°C
  • Cooling Method: TEC-Peltier Cooler, Fan for Waste Heat Removal
  • TEC Rating (max): 9 Amps, 17 Volts
  • Heat Sink Thermal Load Maximum: 38 Watts (@25ºC)
  • Fan Rated Input Voltage 24 VDC (supplied by controller)
  • Fan Rated Input Current: 300 mA (supplied by controller)
  • Mounting Plate Material: Anodized Aluminum
  • Mounting Plate Area: 105 mm x 75mm
  • Mounting Plate Hole Footprint: Customer Specified Package Style
  • Mounting Plate Integrated Thermistor: 10 kΩ
  • Electrical Connector to Controller: DSUB, 15-pin
  • System Includes 1 x 1.5 meter Current Interface Cable (50A rated)
  • System Includes 1 x 1.5 meter TEC Control Interface Cable (20A rated)
  • Internal Pulse Generator QCW Pulse Width Rise Time: 20 μsec to CW
  • Pulse Time Base Accuracy: ± 1.0%
  • QCW MODE 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW MODE 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • MODULATION Input (BNC): Digital (TTL) or Analog
  • MODULATION BNC Input Impedance: 10K ohm MODULATION Input
  • ---------------------------------------------------------------------------------------------
  • MODULATION Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
  • User Programmable Soft-Start Current Ramp to Setpoint
  • Soft-Start Current Ramp Default Set to 300 Milliseconds
  • Current Limit
  • Temperature Limits (Upper and Lower)
  • Open Circuit Detection
  • Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp
  • Reverse Voltage Transient Clamp
  • Factory Pre-Set Default Upper Temperature Limit: 35°C
  • AC Line Filter
  • Rear Panel Keylock Switch and Interlock
Controller Computer Interface
  • RS232 Standard
  • USB Optional: $95.00 (Option SVC-USB)
  • LabView Drivers Included
Power Supply, Weight and Dimensions
  • Power Input: Universal 90 ~ 230 VAC, 50/60 Hz
  • System Weight (total): ~ 10 kg
  • Dimensions: 200mm x 105mm x 85mm
Laser diode package style part numbers
  • EP-LDC-500X/CDL
  • EP-LDC-500X/FLW (2-pin style anode / cathode on laser diode)

Product Overview:

22 Amp Turn-Key Control System for Eagleyard Photonics CDL and FLW Lasers

This high power control solution is an all-inclusive system for controlling high power single emitter multimode "flat-pack" lasers from Eagleyard Photonics. This pre-configured system includes a precision 22 amp current source, a full PID temperature controller, an actively cooled heat sink and all required cables. The EP-LDC-500X is an affordable, high performance solution for safely powering your laser and running at a stable temperature in laboratory environments.

Laser Diode Protection Features

These units offer the highest level laser diode protection available to ensure that your device under test is protected at all times. Soft-start current, current and temperature limits, and a fast shut-down sequence keep your device protected at all times. Additionally, transient filters and AC line filters protect the laser against brown-out or black-out power conditions. The precision TEC controller offers a full P.I.D. control loop for fast and efficient thermal stabilization.

A back-panel safety interlock connector ensures that the laser diode current is not switched on until the user has determined it is safe to do so.

Temperature Controller Features

The full PID loop provides millidegree temperature stability, and can quickly stabilize high heat loads to the temperature set-point to reduce the risk of damage to your laser.

User adjustable upper and lower temperature limits can be programmed to protect the laser diode and the Peltier device. Additionally, TEC output current limits are user-configured to protect the Peltier device from over-drive damage.

Modulation, Internal Function Generator, and QCW Pulse Modes

In addition to CW (continuous wave) mode of operation, the laser diode controller offers flexible modulation capabilities and a QCW mode. The rear panel of the controller has a BNC input for an analog or TTL digital modulation input with a 10k Ω input impedance. The controller has an internal function generator which can be used to set the quasi-CW pulses. In QCW mode, the user can also set the 100μs to CW pulses from a remote TTL signal source.

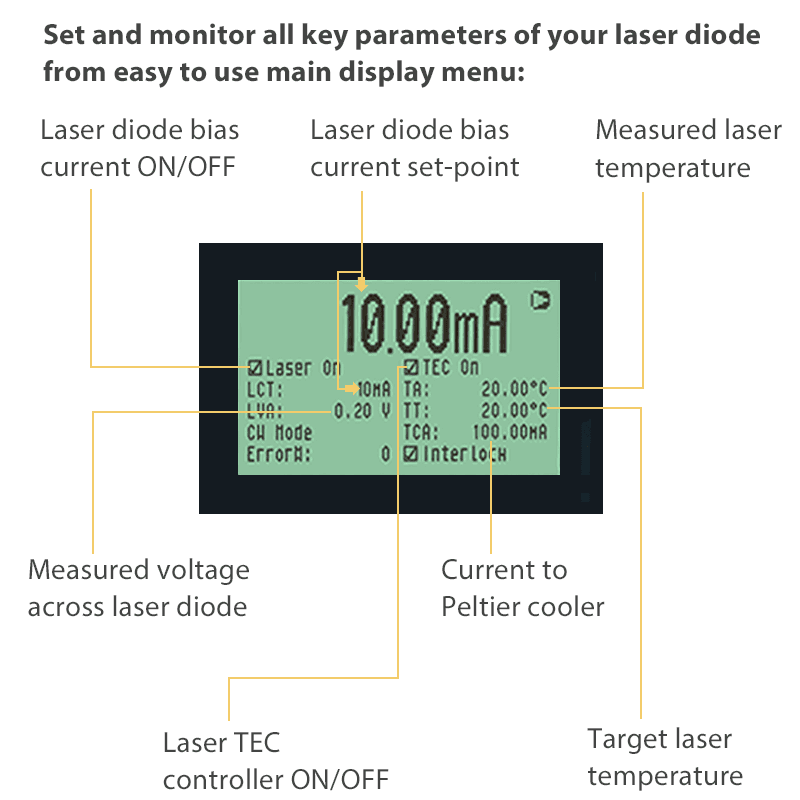

Intuitive Front Panel User Interface

The user also complete control of all laser diode bias and temperature control parameters through an intuitive front panel menu. The front panel has an LCD display with a key pad. For remote control, these systems come with a standard RS-232 interface and can be ordered with an optional USB interface. The LabView GUI (included) makes set-up and control of the system fast and simple.
