15 Amp Laser Diode Controller
- 100 Watt TEC Controller
- Simple to Operate Front-Panel Control

$2339.00
sku / item#: RLS/FB-LD-DVR-15A
ships: Request a Quote for Current Ship Date

Key Features
  • Laser Diode Driver Current Range 15 Amps
  • Compliance Voltage up to 10 Volts
  • TEC Power up to 100 Watts at 10 Amps
  • Laser Diode Protection against Overheating, Short Circuit and Over-Voltage
  • Offered by: FiberCom, a Laser Lab Source Marketplace Seller
  • Sold & Supported in North America by: LaserDiodeSource.com, part of the
    Laser Lab Source Marketplace Group

Price and Delivery Quote

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL RLS/FB-LD-DVR-15A
PRICE $2339.00
Laser Driver Specifications
  • CW Maximum Laser Current: 15 Amps
  • CW Maximum Compliance Voltage: 10 Volts
  • Current Adjustment Interval: 100 mA
  • QCW Pulse Width: 5 to 1,000 msec
  • Duty Cycle: 0 - 99%
TEC CONTROLLER specifications
  • TEC Current: ±10 A
  • TEC Voltage: ±10 V
  • Temperature Control Range: 0°C to 60°C
General Specifications
  • Power Supply: 220 VAC, 50 Hz
  • Maximum Supply Current: 2.1 A
  • Operating Temp. Range: -10°C to +30°C
  • Refer to Datasheet for Complete Specifications

Product Overview:

Laser Diode Current Source & TEC Controller Overview

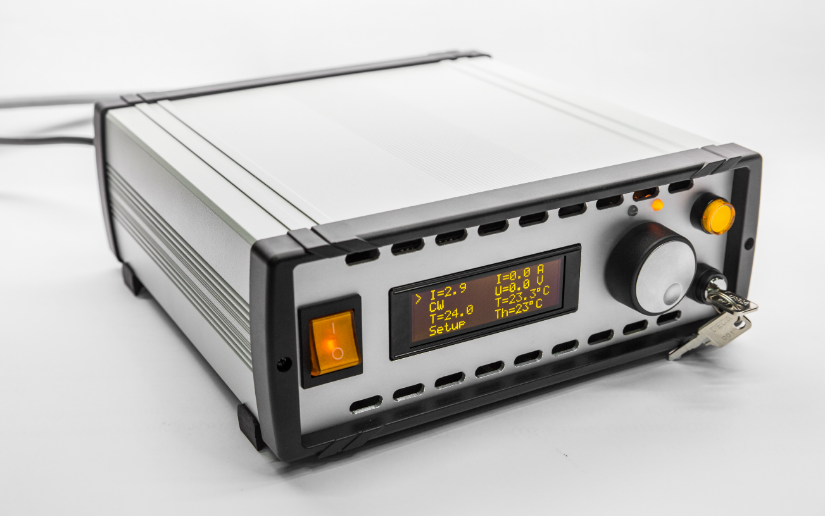

The FB-LD-DVR-15A laser diode controller from Fibercom is a precision laser diode current source delivering up to 15 amps of current and up to your laser diode and 100 watts power to a thermoelectric cooler. This controller is intuitively operated from the front panel using just the adjust/set knob and the compact enclosure is designed for laboratory and R&D environments.
