High Compliance Voltage Laser Diode Driver; Compliance Voltage Range 48 Volts; Current Range 15 Amps

  • laser diode driver, high power, model LDI
  • High Power Laser Diode Devices

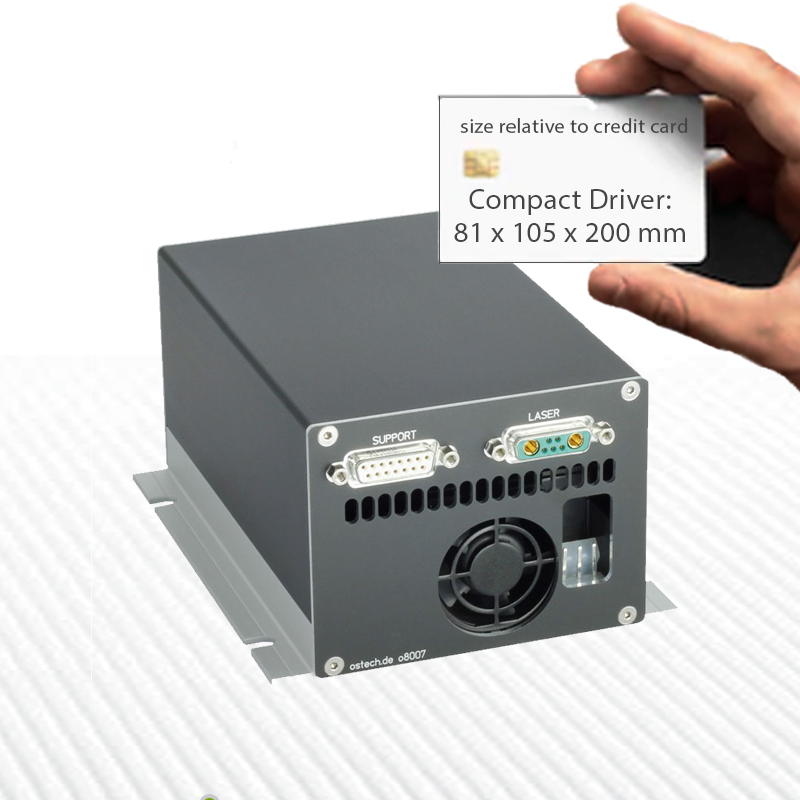

  • High Power Laser Diode Driver Model LDI
  • ldi 597 pinout

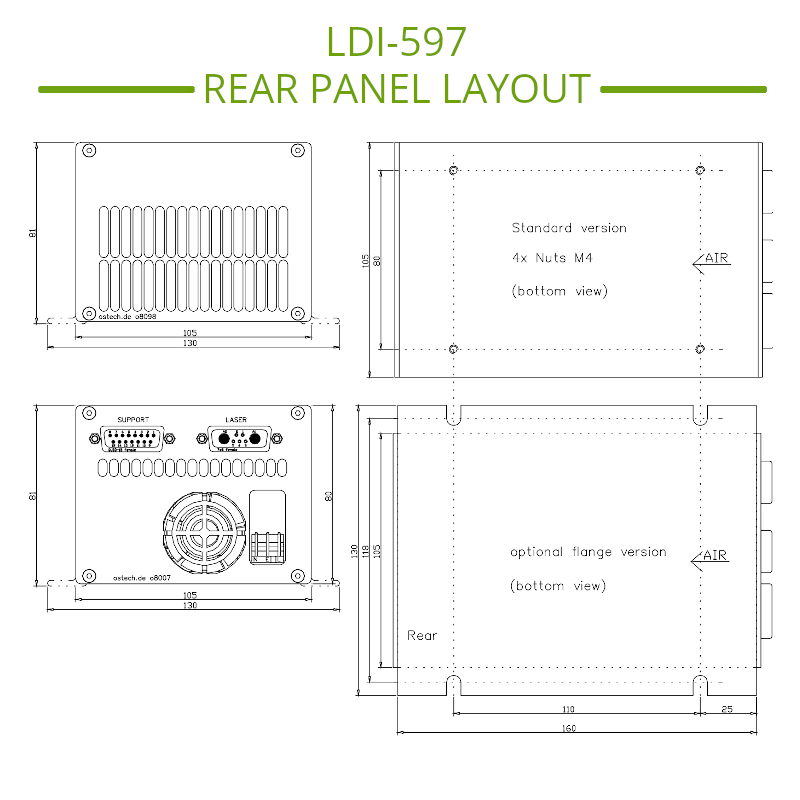

  • ldi 597 layout
  • LDC-165HV High Power Laser Diode Control Software

$2442.00
sku / item#: LDI-597
ships: 14 to 18 days

Key Features
  • Up to 48 Volts, 15 Amps (CW)
  • Designed for Multi-Chip and Series Connected Laser Diodes Requiring High Voltage
  • CW and Quasi-CW Modes
  • QCW Pulse Widths 25 μs to CW
  • USB Control Available as an Option; RS-232 or USB, LabView Drivers

Price and Delivery Quote

Buy Now / Add to Cart



Select Cables and Accessories for this Controller


This cable is also available terminated on the
controller end with a 15-pin d-sub connector (male) and
15-pin d-sub connector (female) on the device-end (kab-231).


This cable is also available terminated on the
controller end with a 15-pin d-sub connector and
unterminated on the device-end (kab-39).

Technical Questions for this Product

ASK AN ENGINEER

Customers Also Considered:

Why do Scientists & Engineers Choose Laser Lab Source?

MODEL LDI-597
PRICE $2442.00
LASER DIODE DRIVER CURRENT OUTPUT
  • Compliance Voltage Range: 0.12 - 48.00 Volts
  • Output Current Range: 0.00 - 15.00 Amps
  • Current Noise & Ripple (rms): < 1% of Full Scale Current
  • Current Setpoint Resolution: 4 mA
  • Current Setpoint Accuracy: ± 0.5%
  • Current Stability (4 hours): ≤ 100 ppm
  • Current Limit Setpoint Accuracy: ± 2%
  • Photodiode Current Measurement Accuracy: ± 0.5%
  • Photodiode Current Measurement Range: 0.00 - 700 μA
INTEGRATED LASER DIODE PROTECTION FEATURES
  • Soft-Start Current Ramp to Setpoint (User Programmable)
  • Soft-Start Current Ramp Factory Default Set to 300 Milliseconds
  • User-Programmable Current Limit
  • Open Circuit Detection; Short Circuit when Laser Diode Current Turned OFF
  • ESD and Power Surge Clamp, AC Line Filter
  • Reverse Voltage Transient Clamp
  • Electronic Safety Interlock Connection
  • Short Circuit when Laser Diode Current Turned OFF
QCW PULSE MODE AND MODULATION
  • Pulse Rise / Fall Time: < 25μs, 10%-90%
  • Integrated QCW Pulse Generator, Also Accepts External Trigger for QCW Pulses
  • QCW Mode 1: User Adjustable Pulse Width and Repetition Rate using Internal Pulse Generator
  • QCW Mode 2: External Trigger to Internal Pulse Generator: Rising Edge Triggered QCW Pulse with Internally Adjusted Pulse Width
  • Modulation Input: BNC, Digital (TTL) or Analog, 10kΩ Impedance
  • ---------------------------------------------------------------------------------------------
  • Modulation Input Voltage Range: 0 ~ 4 Volts (4V = Max Current)
  • Analog Modulation Bandwidth: 1 Hz – 20 kHz
auxiliary functions
  • Temperature Sensor Input: 10kΩ NTC Thermistor
  • Photodiode Cathode (Analog Connected to Gnd)
  • Pilot Laser Anode, vs. Ground: (4 - 5V, 150 mA)
  • Modulation Input
  • Electronic Safety Interlock Connection
  • RS232 Connections
  • External Fan Control Circuit, 2 - 24V, 800mA (max)
USER INTERFACE AND CONNECTORS
  • RS232 Standard
  • LabView Drivers Included
  • Laser Connector: DB-7W2, Female
  • Support and Peltier Connector: SubD-15, Female
  • Main Power Connector: MOLEX Housing 10013036; Terminal 8701031
DIMENSIONS AND power INPUT
  • Power Input: Universal 90V ~ 230 VAC, 50/60 Hz
  • Dimensions: 81 mm (H) x 130 mm (W) x 164 mm (L)
Recommended Accessories
  • kab-39 Unterminated Connecting Cable -or-
    kab-231 Terminated Connecting Cable

Product Overview:

15 Amp High Voltage Driver Overview

The LDC-597 high power laser diode driver offers a maximum output of up to 720 Watts (15 Amps @ 48 Volts) and can operate in constant current CW or pulsed Quasi-CW mode. These units feature a high efficiency design with high reliability components to offer long-life operation, and are integrated into industrial lasers systems used in harsh environments as well as laboratory R&D applications.

Laser Diode Protection Features

These drivers feature a user programmable soft-start ramp of the laser diode bias current. The factory sets the ramp time to 300 milliseconds as the default. This current ramp-up and ramp-down function is designed to protect the laser from thermal shock during power-up and power-down sequences. The LDC-597 has AC line filters and a fast response to shunt the current in the event of an open-circuit. Also included is the ability to control an external cooling fan: a temperature sensor input is available on the back panel, and the external fan control is capable of driving up to 800 mA at 24 V.

CW and Quasi-CW Modes of Operation

In addition to CW (continuous wave) mode of operation, the -597 offers flexible modulation capabilities and an integrated QCW mode. The controller has an internal function generator which can be used to set the modulation signal or the quasi-CW pulses with a time base accuracy of 1.0%. In QCW mode, the user can also set the pulses from a remote TTL signal source. The typical rise time of the QCW mode for these drivers is 25 µs. Faster rise times are available on request. Rise times less than 5 µs are achievable if the load and cabling are optimized for fast pulses.

Laser Driver Control Interface

The LDC-597 features an RS232 interface and includes LabView drivers. An optional USB digital interface is available; inquire for details on ordering the USB control option.
